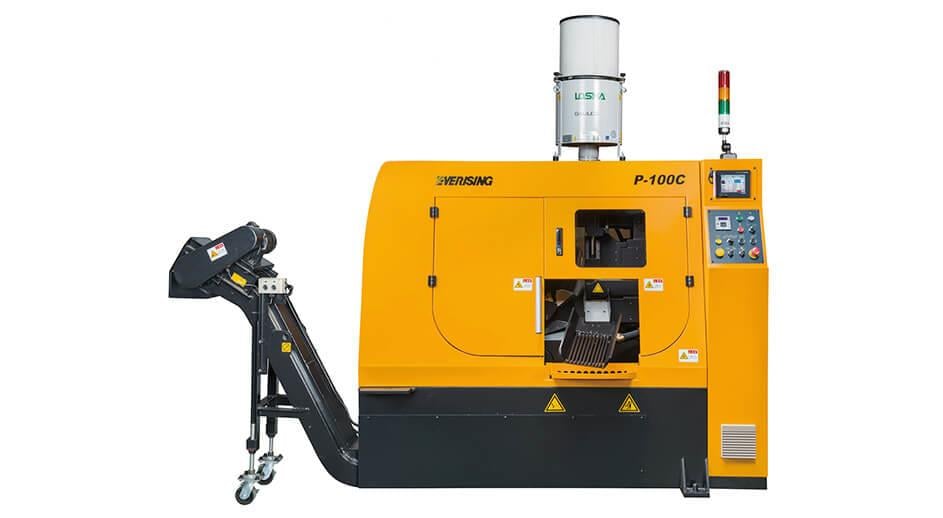

Everising P-100C Circular Saw Cutting Machine C Type (P-100C)

Friendly and easy to operate touch screen.
Accurate length index device, drive by servomotor and ball screw.
Hydraulic clamped front & vertical vises.
Floating shuttle device.
Hydraulic sorting chute.
Scraper, chain type chip conveyor.
Saw head feed system via servo motor and ball screw.
Oil mist cooling system.
Infinitely variable blade speed controlled by inverter.
Automatic loading table only for 6M long round bar.
Saw blade 2 pcs.
Power driven wire brush.
Transmission belt x 1 set.
Cutting mist oil 5 gallons.
One set of tools with tool box.

Air Filter.
Variable vise pressure for tube cutting.
Air blow device for tube cutting.
Cutting fluid coolant system.

Model		P-100C
Capacity		15 - 100 mm
		15 - 80 mm
		15 - 80 mm
Blade Motor		11 kW
Hydraulic Pump Motor		2.2 kW
Servo Motor	Blade Feed	1.5 kW
	Bar Feed	1.5 kW
	Third Vise (Opt.)	1 kW
Blade Speed		40 - 160 rpm
Saw Blade Size (T:Kerf t:Thickness)	Standard blade	Ø 360 x T2.6 x 2.25t mm
	Thin kerf blade (Opt.)	Ø 360 x T2.0 x 1.75t mm
Blade Feed		Servo Motor and Ball Screw
Bar Feed		Servo Motor and Ball Screw
Automatic Feed Length		Single Feed 8 - 600 mm
		Multiple Feed - 3000 mm
Automatic Chip Conveyor		Scraper Type
Cooling		Air Compressed Oil Mist
Machine Weight with Table		3900 kgs
Loading Table (W x L)		1200 mm x 5200 mm
Floor Space (mm)	Machine	2900 W x 1900 L
	Machine with Loading Table	2900 W x 6835 L
