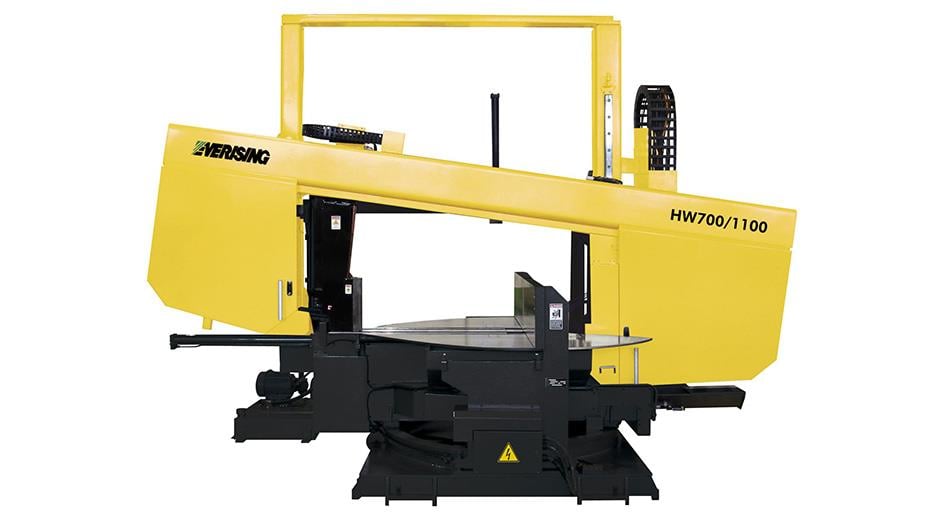

Everising HW700/1100 Mitre Band Saw Heavy Duty Mitre Cutting (HW700/1100)

Ampere-meter and protecting detector for saw blade.
Bi-direction angle cutting, -45° ~ 90° ~ 60°
Feed pressure compensation unit.
Hydraulic blade tension.
PLC control for all electric and hydraulic functions.
Infinitely variable blade speed control by inverter.
Vertical clamping device.
Full stroke vise clamping system.
Power guide arm moving and hydraulic lock.
Power angle setting with LED display.
Independent electric cabinet and control panel.
Roller bearing carbide blade guide system with Hydraulic clamped.
Idler wheel motion detector with blade stalling and breakage shut-off.
Projection light. (Laser light)
Automatic chip conveyor.
Cutting lubrication by oil mist.
Variable vise pressure.
One M42 bi-metal saw blade.
One set of tools and tools box.

Dead roller table, 3 M long.
Power roller table, 3M long.
Out of square detector.

Model		HW700/1100
Capacity	90°	715 mm
		1100 x 700 mm (W x H)
	±45°	680 mm
		680 x 700 mm (W x H)
	-60°	480 mm
		480 x 700mm (W x H)
Min Clamping		410 mm
Blade Speed		15 ~ 100 m/min
Blade Size		9600 x 54 x 1.6 mm
Motor	Blade Drive	7.5 kW (10 HP)
	Hydraulic Pump	2.2 kW (3 HP)
	Oil Mist	180 W (1/4 HP)
	Wire Brush	90 W (1/8 HP)
Blade Tension		Hydraulic
Angle Swivel		Powerful with LED Display
Table Height		940 mm
Vise Clamping Type		Hydraulic (Full Stroke)
Machine Weight		7000 kgs
Floor Space (W x D)		4600 x 4400 mm
