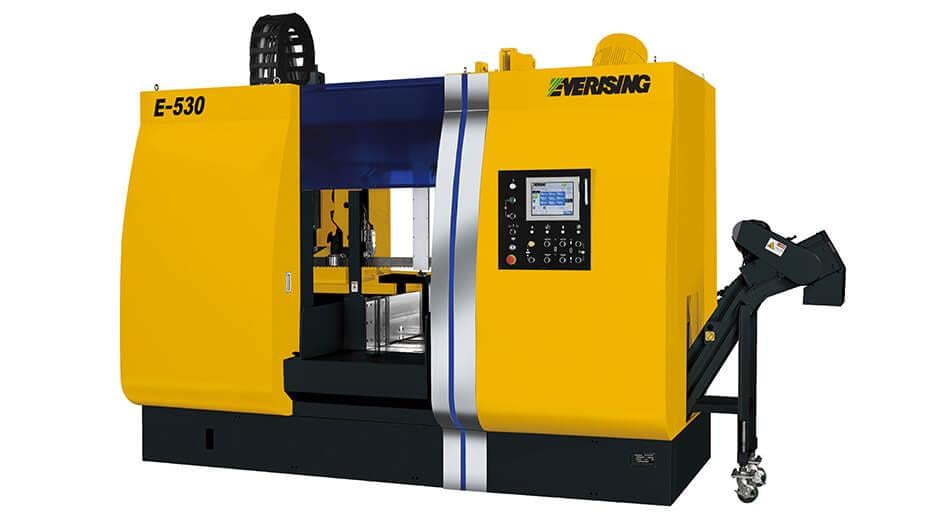

Everising E-530 Hi-Tech Band Saw

Brand : Everising

Stock Code (E-530)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkey

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Taiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Item is out of stock.

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Variable blade speed controlled by inverter.
Guide arm travels on linear guide way and moves in coordination with the movable vise jaw.
Technical parameters are CNC controlled for an optimal processing of workpiece.
Out of square detector.
Hydraulic blade tensioning.
Idler wheel motion detector with blade stalling and breakage shutoff.
Hydraulic actuated carbide blade guides.
Roller type work table

Automatic loading system.
2M long dead roller table – strong type.
2M long power roller table – hydraulic type

MODEL		E-530
CAPACITY		Ø 30-530 mm
		30-530 mm
BLADE SIZE		6670 x 67 x 1.6 mm
BLADE SPEED		15-120 m/min
BLADE TENSION		HYDRAULIC
MOTOR	BLADE DRIVE	15 kW (20 HP)
	HYD. PUMP	3.7 kW (5 HP)
	COOLANT PUMP	375 W
	WIRE BRUSH	120 W
AUTO. CHIP CONVEYOR		CHAIN TYPE
MACHINE DIMENSION		4050 x 2100 x 2450 mm
MACHINE WEIGHT		7000 kgs
