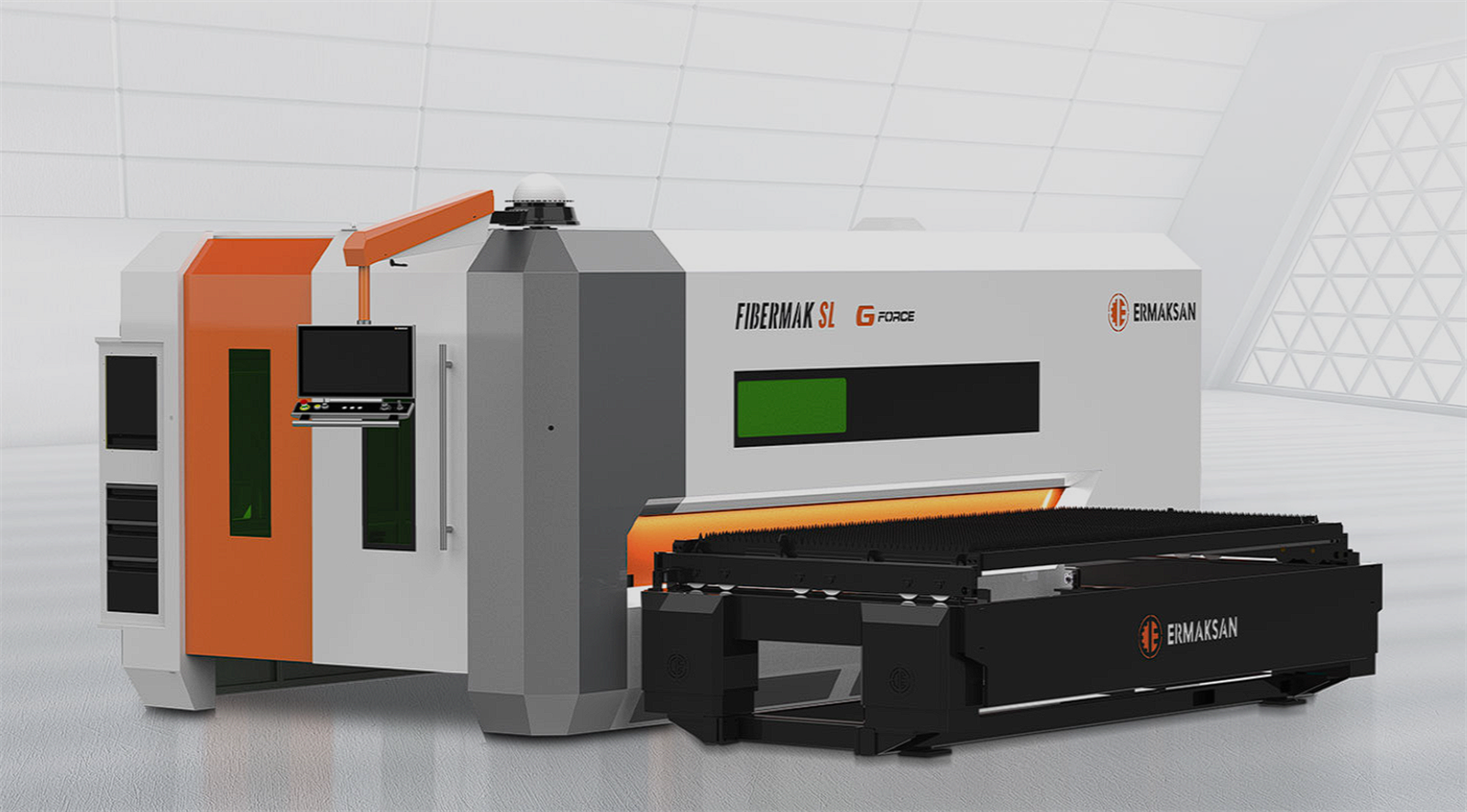

FIBERMAK SL G-FORCE

Compact Design Providing 20% Area Advantage...

With its side-loading design, Fibermak SL is the right choice designed for workshops with limited space without sacrificing from G-Force standards and quality. It only needs 68 m2 of floor space for standard 3x1.5m machines including the loading-unloading unit. If the workplace has a short hall, we recommend our customers to choose a side-loading fibre laser machine. Thanks to the high acceleration in G-Force series servo motor models, production time is reduced and productivity is increased by an average of 15% per hour.

The electric panel is now even more compact thanks to the structure developed in the side-loading machine. Thus, the number of equipment outside is also significantly reduced, providing great advantages to customers in terms of placement area, while saving installation time. As a result, thanks to the side-loading design, the area occupied by the machine provides a 20 percent advantage compared to a standard machine.

You can achieve impressive results with maximum performance without sacrificing cutting quality for many years.

RIGID AND STRONG BODY

Thanks to its strong body with dynamic and static rigidity, it provides a long service life and high precision machining.

FLY-CUT FEATURE

With Fibermak SL’s fly-cut feature, you can cut both circular and equilateral pieces at great speeds with great quality.

LIFT TRANSITION TYPE

You will get maximum efficiency from your machine by providing transition at maximum speeds with Fibermak SL's lift transition type.

FREQUENCY CUTTING

With fast piercing and the frequency modulation used in sharp corners during cutting, it allows you to cut thick materials in steep corner cuts without melting or without applying radius to the corners.

BACKUP

It is possible to restart the machine within minutes thanks to the option of system backup against possible failures.

MACHINE UPDATE

With the philosophy of continuous improvement, Ermaksan engineers offer the most up-to-date version allowing you to get the most out of your machine.

SPECIFICATIONS/ MACHINE		SL 8X2
WORKING AREA	mm	8100 x 2000
MAX. LOAD CAPACITY	kg	3000
AXIAL MOVEMENTS	-	-
X, U AXES / SERVO MOTOR TABLE	mm	8200
Y AXIS / SERVO MOTOR BRIDGE	mm	2050
Z AXIS / SERVO MOTOR CUTTING HEAD	mm	150
ACCELERATION	G	1,5
SERVO MOTOR MAX. AXIS SPEEDS	m/min	141 (combination speed) (X, Y single axis speed 100 m/min)
AUTOMATIC LOADING UNLOADING UNIT	Pallet	Automatic (Single Pallet)
MACHINE DIMENSIONS (L x W x H)	mm	11500x5760x2610
MACHINE WEIGHT	kg	42200
MACHINE AXES	-	4-Axis [X, Y, Z, U ]
POSITITIONING ACCURACY	mm/m	± 0,03
REPETITION ACCURACY	mm	± 0,015
CNC	-	BECKHOFF
CAD/CAM SOFTWARE	-	METALIX, LANTEK
NETWORK CONNECTION	-	Ethernet
CONTROL PANEL	-	21.5" 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens

Smart Features

BEAM CENTERING CAMERA

The camera-aided laser beam centering adjustment system enables the operators to adjust the laser center effortlessly when needed.

ANTI CRASH SYSTEM

During cutting, possible collision between the laser cutting head and the displaced pieces is prevented, protecting the cutting head against damages.

FLY-CUT FEATURE

With the Fly-Cut feature, you can cut both circular and equilateral pieces at great speeds with great quality.

Controller

BECKHOFF CONTROLLER:

With its proven industrial PC-based control technology, Beckhoff offers a wide range of products for different applications.

Software

METALIX CAD/CAM SOFTWARE

Offering a complete and comprehensive CAD/CAM solution, Metalix updates its software based on the latest developments in sheet metal processing technologies.

LANTEK EXPERT CUT CAD/CAM SOFTWARE

Lantek Expert Cut is a nesting software designed for users to simply follow the steps specified by the system.

LANTEK INSIDE CAD/CAM SOFTWARE

Programming with Lantek Inside is as easy as using your smartphone. The operator can easily design the program and initiate the cutting process.

Resonator

ERMAKSAN RESONATOR

State-of-the-art fibre laser resonators produced in Ermaksan Optoelectronics centre stand out with their power classes ranging from 1 to 15 kW, high beam quality, and advanced control features.

IPG-YLR SERIES RESONATOR

Being customized according to customer needs and requests, IPG-YLR Series (Cassette type) resonators offer affordable solutions to their users. Power alternatives between 1 to 4 kW are available.

IPG-YLS SERIES RESONATOR

IPG-YLS Series (Cabin type) resonators, which are provided according to customer needs and requests, have significant advantages thanks to the quality of easy and on-site maintenance. Power options from 1 to 20 kW are available.

Cooling System

IPG COOLING UNIT

Provides cooling of the relevant parts for continuity and precision in cutting.

Cutting Head

PRECITEC PROCUTTER 2.0 CUTTING HEAD

With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.

PRECITEC PROCUTTER ZOOM 2.0 CUTTING HEAD

With its higher focal length and replaceable Spot Size feature, Procutter enables fast cutting on thin materials and high quality cuts on thick materials.

Handwheel

HANDWHEEL

It is an equipment that facilitates the positioning of the head even without staying by the control panel.

WIRELESS HANDWHEEL

Provides wireless and manual axis movements for quick positioning of the cutting head.

Acceleration

2.5G ACCELERATION

The 2.5 G acceleration capability of the Fibermak Momentum series with servo motors significantly increases the efficiency of transitions between pieces.

Pipe Cutting Unit

T Ø200 PIPE/PROFILE CUTTING

In addition to flat sheet metal cutting, we also allow our users to benefit from optional pipe and profile cutting features in our Fibermak Momentum series machines.

Cutting Table

DOUBLE AUTOMATIC SHUTTLE TABLE

It consists of two movable tables.

PNEUMATIC SHUTTLE TABLE WITH TRANSFER BALLS

Thanks to this system, the sheet metals placed on the table can be easily moved by the operator. It especially prevents the stainless steel sheets from scratches while being placed on the grill.

PROFILE HOLDING TABLE

It is an automatic profile alignment system for precise profile cutting with profile cutting table.

Conveyor

PALLET CONVEYOR

It is a system that enables the pieces falling into the machine during cutting to be brought to the operator by an automatic transport vehicle.

SLAG PAN

This is the pan where the slag and scrap pieces discharged through the conveyor are collected.

Dry Air System

CLEAN - DRY AIR SYSTEM

This system ensures that the oil and moisture levels are reduced to certain figures in order for the values of air coming out of the compressor are at desired levels before the air is transferred to the machine.

Proportional Valve System

PROPORTIONAL VALVE SYSTEM

This is the system that automatically adjusts the O2 or N2 auxiliary gas according to the material type, and the auxiliary gas pressure according to the material thickness, and transfers the gas to the cutting head.

Filtering System

FILTERING UNIT

Ensures cleaning of smoke and small particles formed during cutting via suction.

EXHAUST FAN

The suction fan sucks the smoke and particles inside and discharges them to another area. Thus, the harmful particles in the air within the working environment are removed.

Safety Equipment

SAFETY LIGHT BARRIER

Offers a safer working environment with its light protection curtain that is in compliance with CE standards.

FIBER PROTECTION GOGGLES

This is a safety equipment used to prevent harmful beams that occur during cutting.

Lubrication System

CENTRAL LUBRICATING SYSTEM

Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.

Automation System

INDUSTRY 4.0

Turn machines into connected and smart systems, making your business more productive.
