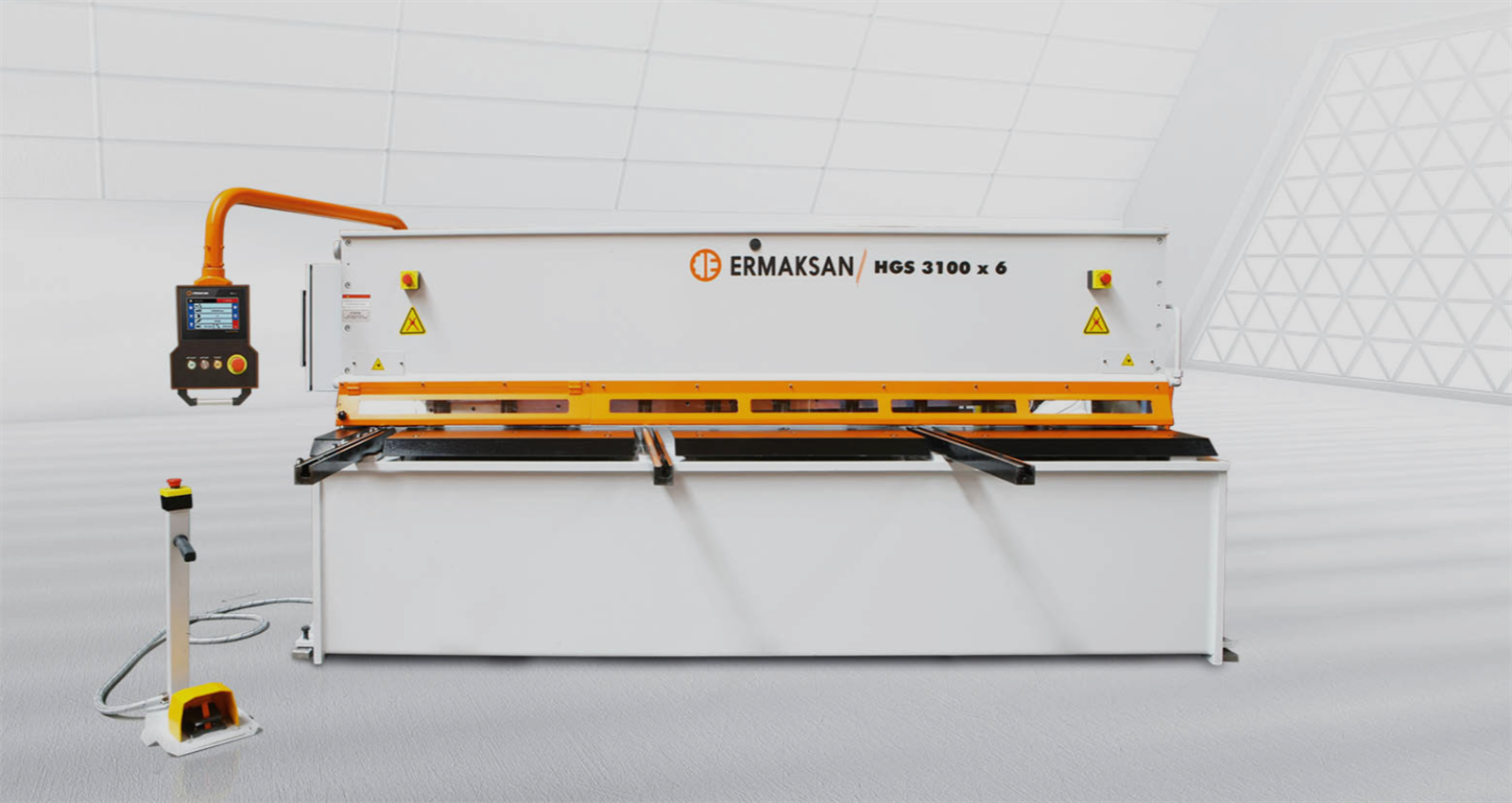

CNC HGS - HYDRAULIC TILT SHEARS

High Performance Economic Solutions...

It is a high-performance and economic machine with its modern design, strong steel welded construction body and excellent cutting quality.

Top cutting beam has maximum durability. Quick and precise blade gap adjustment system is located on the right side of the machine. Blade gap adjustment required for high quality cutting can be performed non-gradually from a single side.

HGS series shear, and with its speed, performance and cutting quality: the best choice.

BACKGAUGE SYSTEM

Simplifies precise cutting by enabling backgauge at different strokes.

FRONT SUPPORT ARM WITH T-SQUARE

Thanks to the stop discs on the t-square arm, it is ensured that the sheet to be cut is parallel to the blades. You can take measurements with the ruler on the arm, and cut continuously with the folded stop latch.

FRONT SHEET METAL SLIDING WITH BALLS

Thanks to the balls on the table, the sheet can be moved easily.

BACK PROTECTION

There are two opposing photocells for back protection conforming to CE standards.

QUIET PUMP

Has a quiet and durable pump enabling operation at high pressures.

LASER CUTTING LINE

Bevel and striped cuts can be made easily in a controllable manner.

Technical Specifications			HGS 2100-8 (6.8 - 0.31)
CUTTING LENGTH	A	mm (feet	2100 (6.8)
CUTTING CAPACITY (42kg/mm²		mm (inch	8 (0,31)
CUTTING CAPACITY (70kg/mm²		mm (inch	5 (0,20)
CUTTING ANGLE		( ° )	1,5
STROKE PER MINUTE		1/min.	20
NUMBER OF HOLD DOWNS		Amount	11
PRESSURE		Ton (Us Tons	12 (13,2)
MAIN MOTOR		kW (Hp	15 (20)
BACK GAUGE MOTOR		kW (Hp	0.75 (1)
OIL CAPACITY		lt. (Us Gallons	200 (52,8)
BUFFER LENGTH		mm (inch	1970 (77,56)
BLADE GAP ADJUSMENT		mm (inch)	0,05-1 (0,002-0.039)
BACKGAUGE STROKE		mm (inch)	1000 (39,4)
BACKGAUGE SPEED		mm/s (inc/s) l	110 (4,3)
NUMBER OF FRONTSUPPORT ARMS		Amount	2
TABLE LENGHT	B	mm (inch)	2435 (95,9)
MACHINE WIDTH	C	mm (inch)	3040 (119,7)
TABLE HEIGHT	D	mm (inch)	800 (31,5)
WIDTH	E	mm (inch)	2450 (94,9)
TRANSPORT WIDTH	K	mm (inch)	2100 (82,7)
HEIGHT	H	mm (inch)	2000 (78,7)
LENGHT	L	mm (inch)	3025 (119,1)
LENGHT	L1	mm (inch)	3816 (150,2)
WEIGHT		kg (lbr.)	5500 (12128)

Backgauge

1000MM ERMAKSAN MOTORIZED BACKGAUGE

With an accuracy of 0.1 mm, the 1 meter long fast backgauge provides precise cutting results. With the automatic folding function for your sheets longer than 1 m, it allows you to freely operate.

Back Protection

LEUZE MLD 520

Prevents undesired accidents by creating an invisible light barrier behind the machine.

Foot Pedal

FOOT PEDAL SUITABLE FOR SINGLE AND MASS CUTTING

This movable pedal allows to start and finish cutting operation easily anywhere in the cutting area, and to easily stop the operation when desired.

Blade

ERMAKSAN BLADE

You can prefer this affordable blade for black and soft sheet metal cutting.

STAINLESS BLADE

Extends the dulling time of the blade while providing a more precise cut for a longer period of time in stainless and black sheet cutting.

Electrical System

SIEMENS ELECTRICAL SYSTEM

Electrical equipment such as the components that make up the motor power circuit, contactor, motor protection, and main switch are offered with proven Siemens quality.

T-square

1000 MM FRONT T-SQUARE

It is your best assistant that facilitates the continuous 90° cutting of the sheets.

ANGLE ADJUSTED T-SQUARE

Allows high precision, easy cutting in angled cutting thanks to angle adjusted T-square.

Cutting Line

CUTTING LINE ILLUMINATION SHADE WIRE

Generates projection over sheet metal to be cut to provide high quality and precise cutting.

LASER CUTTING LINE

Thanks to laser cutting line, angled and lined cutting can be easily controlled.

Controller

DELEM DAC 360T

4.7” monochrome bright LCD display.

ESA 625

With integrated PLC, the controller supports up to 3 axis.

ESA S630

The controller can support up to 4 axes and has a 2D graphic display.

Front Protection

FRONT VISOR

Complying with international safety standards, the finger protection provides a safer working environment.

LASER LIGHT FINGER PROTECTION

Allows the cutting area to be observed better and more easily, allowing the operator to intervene the sheet metal to be cut more easily.

Sheet Metal Support System

LEVER TYPE PNEUMATIC SHEET METAL SUPPORT SYSTEM

Sheet metal being cut can be slid with minimum scratch thanks to rollers and balls on lever type pneumatic sheet metal support system.

SOLID SHEET METAL SUPPORT SYSTEM

Solid table-type pneumatic sheet metal support system prevents sagging of wide and thin sheet metal to enable more precise cutting

Sheet Metal Sliding

FRONT SHEET METAL SLIDING GROUP WITH BALLS

Front sheet metal sliding system with balls enables faster cutting by simplifying operation and sheet metal sliding

WITH T GROOVE AND RULER

T-grooved worktable with static and dynamic rigidity ensures precise cuts and ease of use.

Feeler Adjustment System

MANUAL FEELER ADJUSTMENT SYSTEM

Easily adjustable blade feeler system ensures high operation performance and perfect cutting results.

AUTOMATIC FEELER ADJUSTMENT SYSTEM

The automatic feeler adjustment system, which does not require separate adjustments for sheet metals with different thickness, adjusts the gaps between the blades.

Oil Heating and Cooling System

OIL HEATING AND COOLING SYSTEM

In the environments where the operating temperature is inconvenient, hydraulic oil is heated up to the desired temperature and it is ensured that the shear operates in the optimum environment.
