Backgauge
1000MM ERMAKSAN MOTORIZED BACKGAUGE
With an accuracy of 0.1 mm, the 1 meter long fast backgauge provides precise cutting results. With the automatic folding function for your sheets longer than 1 m, it allows you to freely operate.
Back Protection
LEUZE MLD 520
Prevents undesired accidents by creating an invisible light barrier behind the machine.
Foot Pedal
FOOT PEDAL SUITABLE FOR SINGLE AND MASS CUTTING
This movable pedal allows to start and finish cutting operation easily anywhere in the cutting area, and to easily stop the operation when desired.
Blade
ERMAKSAN BLADE
You can prefer this affordable blade for black and soft sheet metal cutting.
STAINLESS BLADE
Extends the dulling time of the blade while providing a more precise cut for a longer period of time in stainless and black sheet cutting.
Electrical System
SIEMENS ELECTRICAL SYSTEM
Electrical equipment such as the components that make up the motor power circuit, contactor, motor protection, and main switch are offered with proven Siemens quality.
T-square
1000 MM FRONT T-SQUARE
It is your best assistant that facilitates the continuous 90° cutting of the sheets.
ANGLE ADJUSTED T-SQUARE
Allows high precision, easy cutting in angled cutting thanks to angle adjusted T-square.
Cutting Line
CUTTING LINE ILLUMINATION SHADE WIRE
Generates projection over sheet metal to be cut to provide high quality and precise cutting.
LASER CUTTING LINE
Thanks to laser cutting line, angled and lined cutting can be easily controlled.
Controller
DELEM DAC 360T
4.7” monochrome bright LCD display.
ESA 625
With integrated PLC, the controller supports up to 3 axis.
ESA S630
The controller can support up to 4 axes and has a 2D graphic display.
Front Protection
FRONT VISOR
Complying with international safety standards, the finger protection provides a safer working environment.
LASER LIGHT FINGER PROTECTION
Allows the cutting area to be observed better and more easily, allowing the operator to intervene the sheet metal to be cut more easily.
Sheet Metal Support System
LEVER TYPE PNEUMATIC SHEET METAL SUPPORT SYSTEM
Sheet metal being cut can be slid with minimum scratch thanks to rollers and balls on lever type pneumatic sheet metal support system.
SOLID SHEET METAL SUPPORT SYSTEM
Solid table-type pneumatic sheet metal support system prevents sagging of wide and thin sheet metal to enable more precise cutting
Sheet Metal Sliding

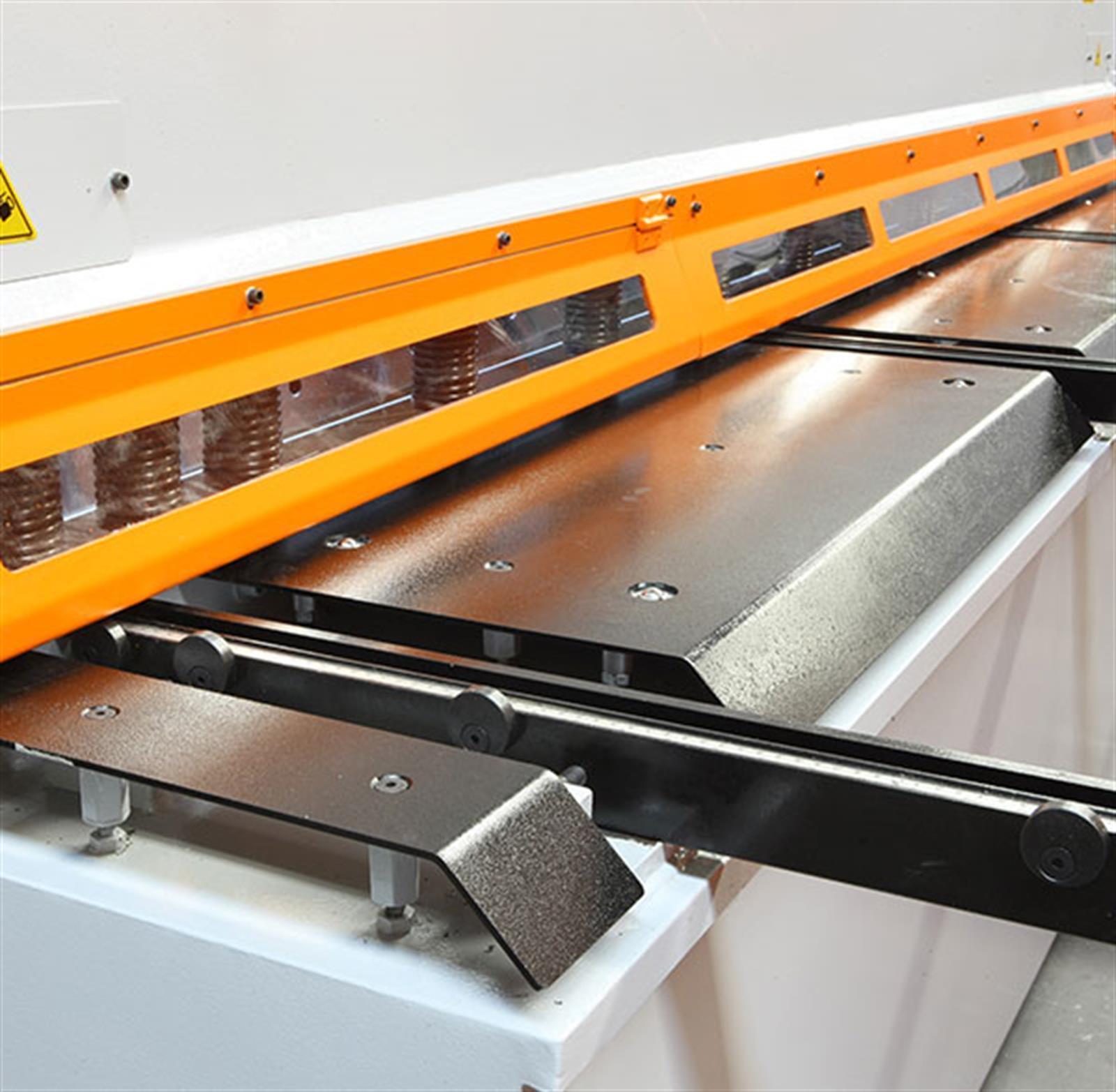

FRONT SHEET METAL SLIDING GROUP WITH BALLS
Front sheet metal sliding system with balls enables faster cutting by simplifying operation and sheet metal sliding
WITH T GROOVE AND RULER
T-grooved worktable with static and dynamic rigidity ensures precise cuts and ease of use.
Feeler Adjustment System
MANUAL FEELER ADJUSTMENT SYSTEM
Easily adjustable blade feeler system ensures high operation performance and perfect cutting results.
AUTOMATIC FEELER ADJUSTMENT SYSTEM
The automatic feeler adjustment system, which does not require separate adjustments for sheet metals with different thickness, adjusts the gaps between the blades.
Oil Heating and Cooling System
OIL HEATING AND COOLING SYSTEM
In the environments where the operating temperature is inconvenient, hydraulic oil is heated up to the desired temperature and it is ensured that the shear operates in the optimum environment.
Lubrication System
CENTRAL LUBRICATING SYSTEM
Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
