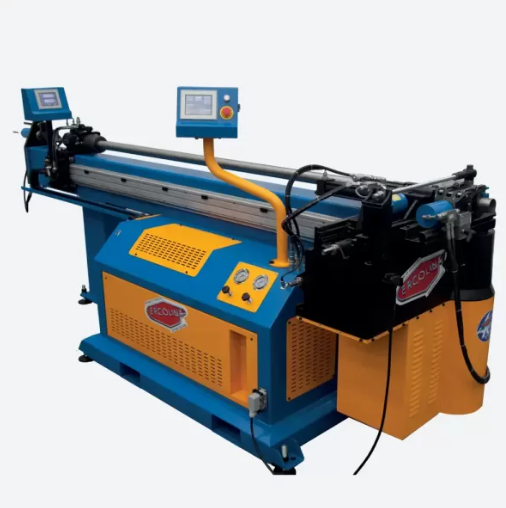

Ercolina TM76 Mandrel Benders (TM76)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The TM76 is a sensational machine, robust and rigid structure in high resistance steel with simple and intuitive digital control, variable bend speed capable of bending up to 76.2 x 3.5 mm (Standard Fe42 tube).

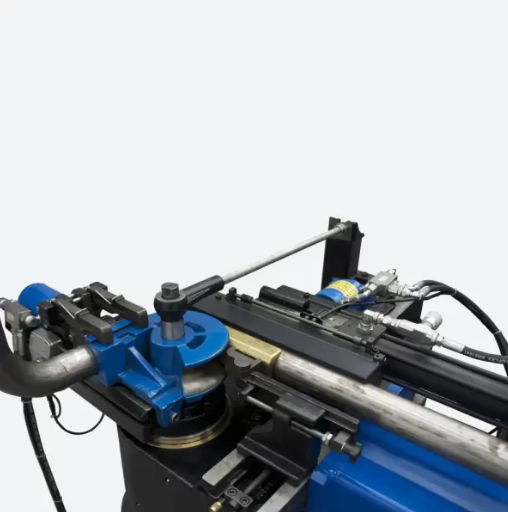

GS500 spheroidal cast iron bending head.
“Finger” closing system (Patented) with auxiliary system for stabilizing the hydraulic pressure of the slide.

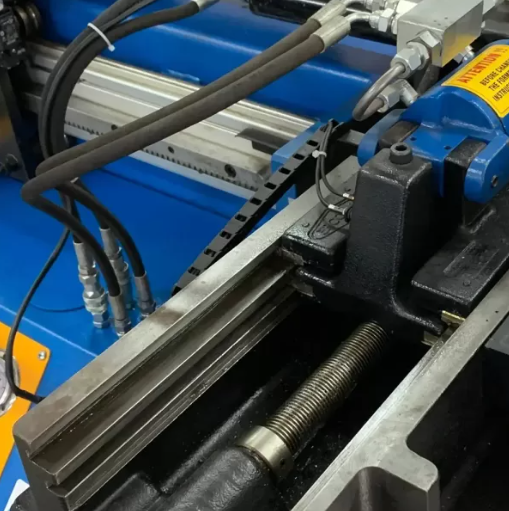

Early extraction of the mandrel by means of a hydraulic cylinder with through rod.

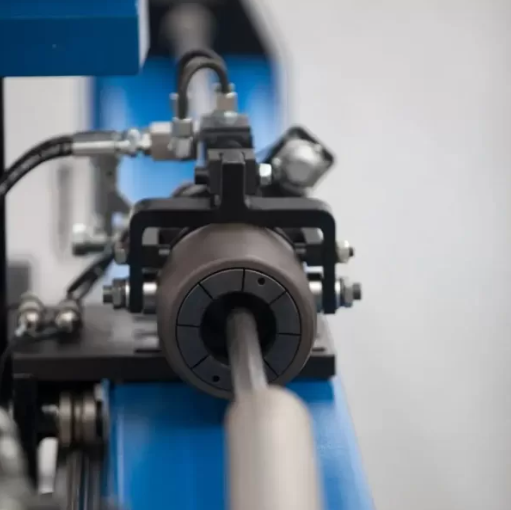

Programmable bending C-axis and manual 2-axis spindle carriage positioning (Y=Feed and B=Rotation) with high-resolution encoder and adjustable standard mechanical stops.

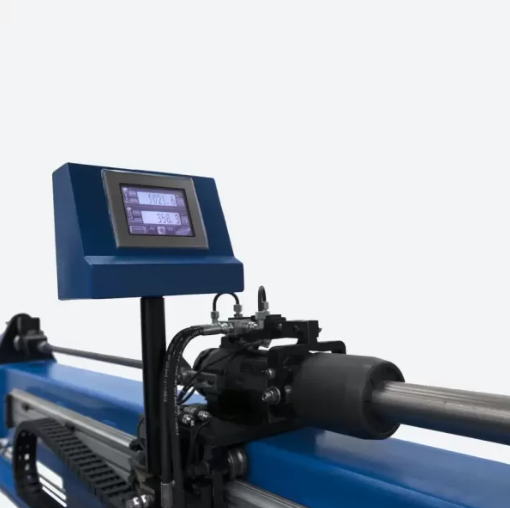

Two synchronized touch screens: one for digital display of the advance (Y Axis) and carriage rotation (B Axis) and one, with USB key and Limitless program storage capacity, for controlling the C bending axis.
Hydraulic booster to push the tube into the die (optional).

Flexion modulus	25 cm³
Minimum external diameter	10 mm
Maximum outer diameter	76.2 mm
Maximum Bend Radius (CLR)	254 mm
Minimum Bend Radius (CLR)	20 mm
Maximum bend angle	195°
Installed power	5 kW
Programs	Limitless
Bend speed	Variable (25°/sec.)
Tank capacity	50 lt. hydraulic oil
Noise level	62 dB
Dimensions (Length x Width x Height)	4355 x 1030 x 1380 mm
Weight	920 kg

EDT PLUS Control

Easy and intuitive control
5.0″ display
Multilingual
Bend angle programming
Bend speed setting
Insertion of compensation value for springback
Display of load percentage during bending

TC PLUS control

Intuitive and simplified iconography
4.3″ display
Bend angle programming
Bend speed setting
Insertion of compensation value for springback
Each program can contain up to 30 bends
Control with manual or programmable mode
Can bend to the right or left
Tool database according to the program used
Immediate language change
Auto-tuning of the main machine components (only on 7″)
Quick change function from mm to inches and back
Ready for 4.0 (optional)
LAN / Wi-Fi connection (optional)

RC0063 Control

Easy to program
Digital display
Multilingual
Bend angle programming
Insertion of compensation value for springback
Display of load percentage during bending
