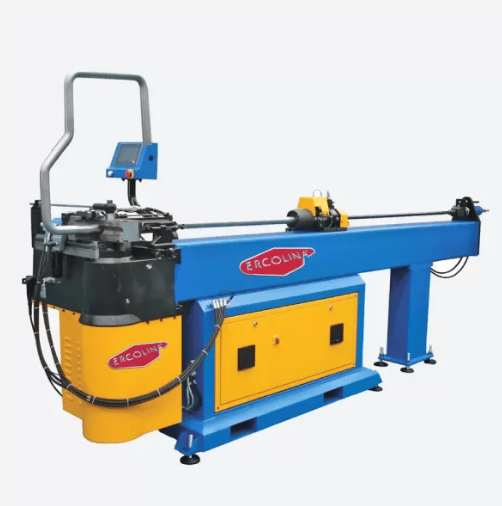

Ercolina TM65 CNC3 Mandrel Benders (TM65)

The TM65 CNC3 is a sensational machine, equipped with touch screen control, advance mandrel extraction in automatic cycle and individual control of the speed of the three axes and high precision of the positioning dimensions. Capable of bending up to ⌀ 65 x 2 mm.

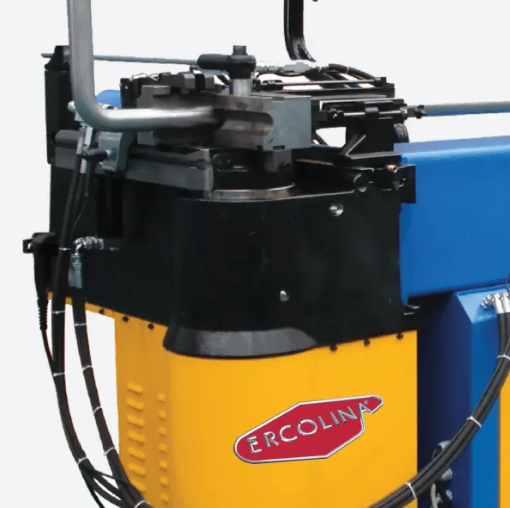

• Cast iron head
• FST closing system (Patented) with auxiliary system for stabilizing the
  hydraulic pressure of the slide.
• Y1 axis (carriage movement) and B axis (rotation of the bending plane)
  programmable and electric with brushless motors; C axis (bending axis)
• Touch screen control
• Early mandrel extraction in automatic cycle
• Individual speed control of the three axes and high precision of positioning
• 2-meter extension available.

Flexion modulus	10 cm³
Minimum external diameter	10 mm
Maximum outer diameter	76 mm
Maximum Bend Radius (CLR)	250 mm
Minimum Bend Radius (CLR)	20 mm
Maximum angle of curvature	210°
Installed power	5 kW
Programs	Limitless
Bend speed	16° / sec
Tank capacity	50 lt. hydraulic oil
Noise level	62 dB
Dimensions (Length x Width x Height)	5420 x 1264 x 1055 mm
Weight	920 kg
