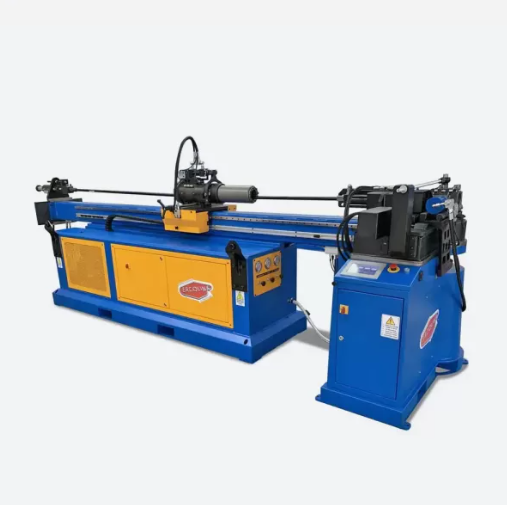

Ercolina TB80 A Mandrel Benders (TB80)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The TB80 A introduced on the market in October 2019 is an extraordinary mandrel bender which combines the undisputed power of the TB80 and exceptional bending ability. A great success created by Ercolina^® .

TCPlus control
7″ color touch screen
Revamped icons for ease of use
Modes: manual, programming
Advanced OFFSET function
Immediate language change
Auto-tuning of major machine components
Programmable Bend Speed for each single bend of the program
Possibility of Limitless Programs on USB Port (optional)
Each single program can contain up to 30 bends.

Flexion modulus	18 cm³
Minimum external diameter	10 mm
Maximum outer diameter	76 mm
Maximum Bend Radius (CLR)	200 mm
Minimum Bend Radius (CLR)	10 mm
Maximum angle of curvature	195°
Installed power	TB80 3 kW machine + Mandrel Bench 2.2 kW
Programs	Limitless
Bend speed	1.5/3 (50/100Hz) Variable with Inverter
Tank capacity	50 lt. hydraulic oil (oil not included)
Noise level	62 dB
Dimensions (Length x Width x Height)	5420 x 1264 x 1055 mm
Weight	910 kg
