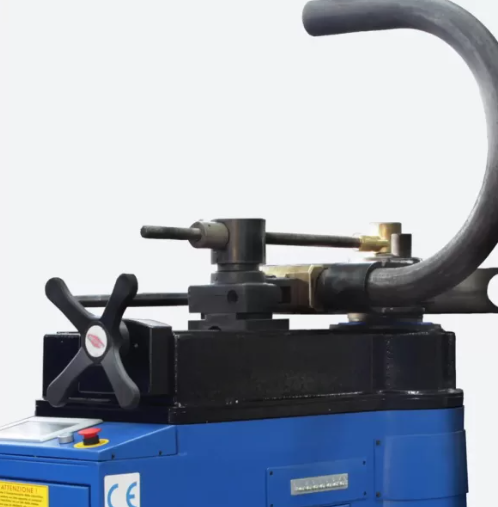

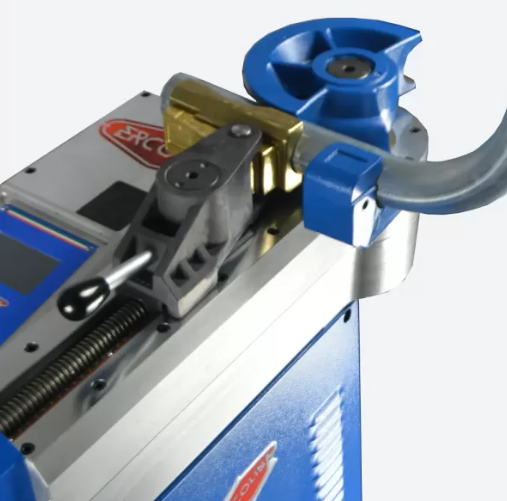

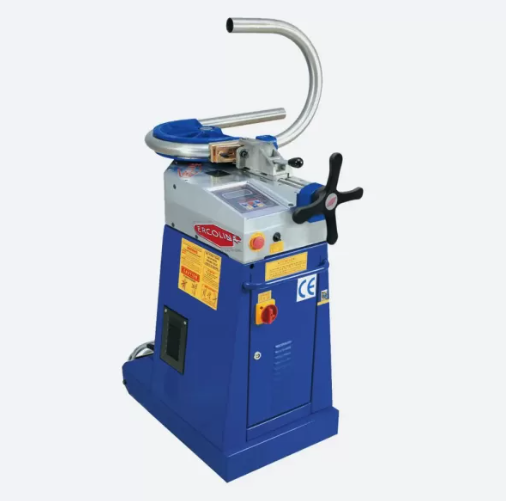

Ercolina TB60 Rotary Draw Benders (TB60)

Brand : Ercolina

Stock Amount : 1

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The TB60 is an amazing machine, it has a standard 60×4 mm steel tube capacity, a large Bend Radius and micrometric control of the X axis position.

Wide Bend Radius: from R10 to R380 mm
Micrometric control with position display on the X axis
Overload control system with flashing indicator lights
Possibility of adding an (optional) A40/P 2-axis positioner to allow the serial production of curves on different planes
Quick and easy tool change system
Easy to move thanks to integrated wheels and retractable handle
Foot control

Flexion modulus	10 cm³
Minimum external diameter	5 mm
Maximum Bend Radius(CLR)	380 mm
Minimum Bend Radius(CLR)	10 mm
Installed power	1.5 kW
Power Supply	220 – 400 V 1 -3 ph / 50-60 Hz
Bend speed	1.5 to 3 rpm
Dimensions (Length x Width x Height)	500 x 1000 x 760 mm
Weight	186 kg
