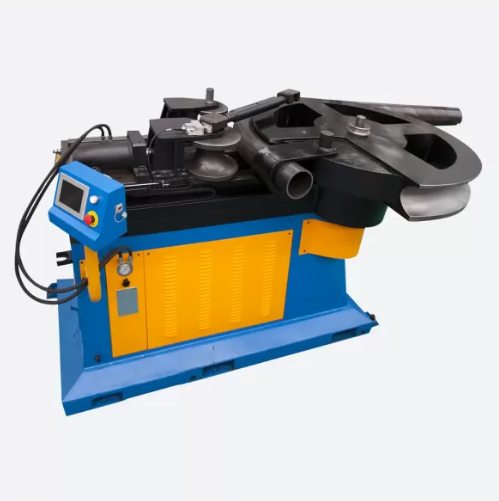

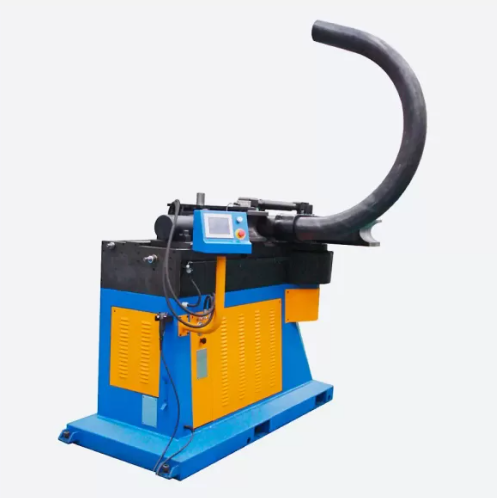

Ercolina TB180 Rotary Draw Benders (TB180)

The TB180 is an extraordinary tube bending machine, with unique power, equipped with the high-performance TCPlus control which makes this machine irreplaceable in terms of performance, durability, speed, and ease of use.

• Equipped with TCPlus Control
• 7″ color touch screen
• New icons for increased ease of use
• Advanced OFFSET function
• Immediate language change
• Auto-tuning of the main machine components
• Quick change function from mm to inches and back
• Bend Speed programmable for each individual bend of the program.
• Possibility of adding Limitless programs on the USB port
• Possibility of adding (optional) 2-axis positioner
• Each single program can contain up to 30 bends.
• Possibility of bending to the right or left

Flexion modulus	20 cm³
Minimum external diameter	10 mm
Maximum outer diameter	60 mm
Maximum Bend Radius (CLR)	800 mm
Minimum Bend Radius (CLR)	100 mm
Maximum bend angle	210°
Installed power	15 kW
Bend speed	1 rpm
Dimensions (Length x Width x Height)	1000 x 1475 x 1900 mm
Weight	2700 kg

TC PLUS control

• Intuitive and simplified iconography
• 4.3″ display
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Each program can contain up to 30 bends
• Control with manual or programmable mode
• Can bend to the right or left
• Tool database according to the program used
• Immediate language change
• Auto-tuning of the main machine components (only on 7″)
• Quick change function from mm to inches and back
• Ready for 4.0 (optional)
• LAN / Wi-Fi connection (optional)
