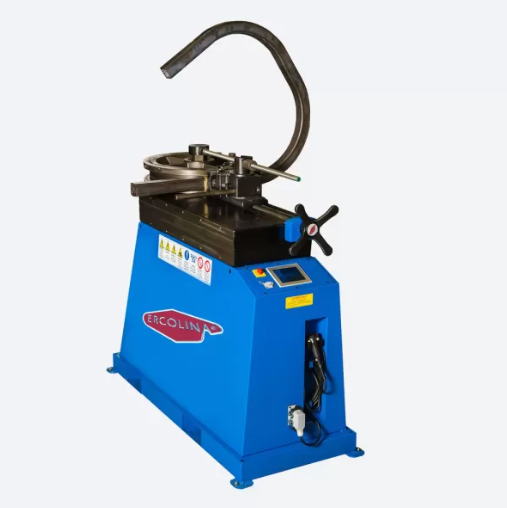

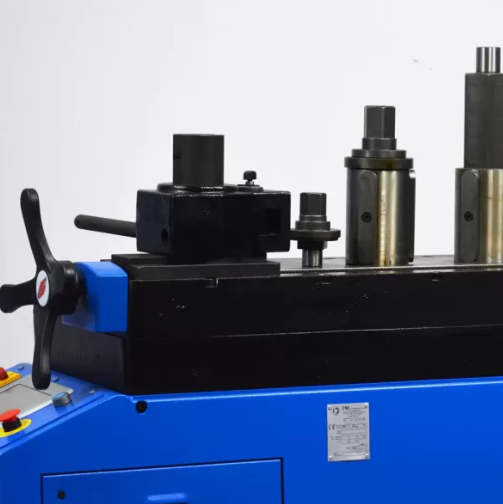

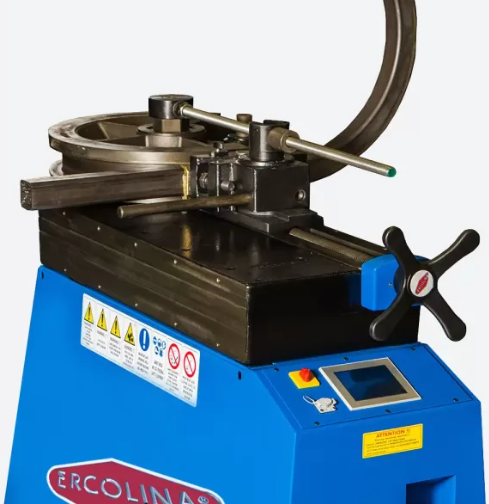

Ercolina TB130 Rotary Draw Benders (TB130)

The Ercolina TB130 is an extraordinary tube bending machine, it has a programmable bend speed with the possibility of bending to the right or left, featuring the high-performance TCPlus control which makes this machine irreplaceable!

TC PLUS control

• Intuitive and simplified iconography
• 4.3″ display
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Each program can contain up to 30 bends
• Control with manual or programmable mode
• Can bend to the right or left
• Tool database according to the program used
• Immediate language change
• Auto-tuning of the main machine components (only on 7″)
• Quick change function from mm to inches and back
• Ready for 4.0 (optional)
• LAN / Wi-Fi connection (optional)

• Equipped with TCPlus Control
• 7″ color touch screen
• Renewed icons for ease of use
• Manual bending mode
• Advanced OFFSET function
• Immediate language change
• Auto-tuning of the main machine components
• Quick change function from mm to inches and back
• Bend Speed programmable for each individual bend of the program.
• Possibility of adding Limitless programs on the USB port
• Each single program can contain up to 30 bends.
• Possibility of bending to the right or left thanks to special tools

Flexion modulus	80 cm³
Minimum external diameter	10 mm – 1/8″
Maximum Bend Radius (CLR)	700 mm
Minimum Bend Radius (CLR)	136 mm
Installed power	3.5 kW
Power Supply	400 V 3 ph / 50-60 Hz
Bend Speed	1.5 to 3.0 rpm
Dimensions (Length x Width x Height)	1145x639x990 mm
Weight	720 kg
