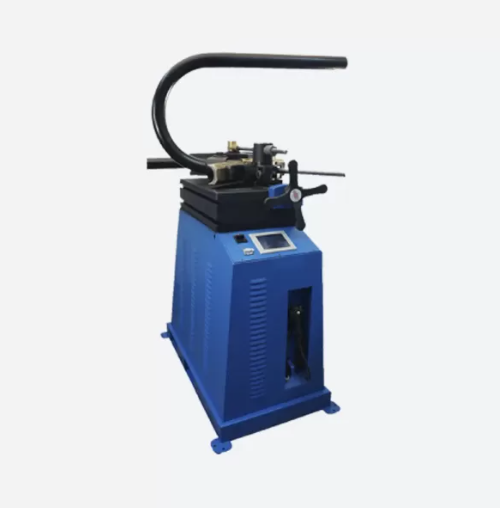

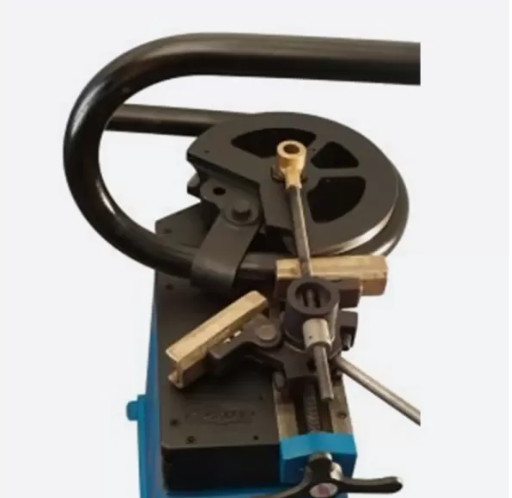

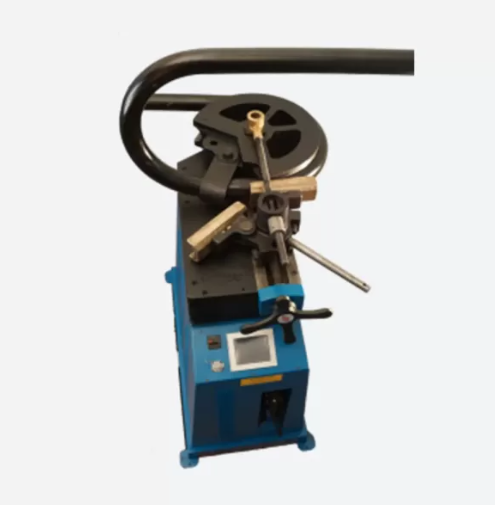

Ercolina TB100 Rotary Draw Benders (TB100)

The Ercolina TB100 is an extraordinary tube bending machine, it has a programmable bend speed with the possibility of bending to the right or left, featuring the high-performance TCPlus control which makes this machine irreplaceable!

TC PLUS control

• Intuitive and simplified iconography
• 4.3″ display
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Each program can contain up to 30 bends
• Control with manual or programmable mode
• Can bend to the right or left
• Tool database according to the program used
• Immediate language change
• Auto-tuning of the main machine components (only on 7″)
• Quick change function from mm to inches and back
• Ready for 4.0 (optional)
• LAN / Wi-Fi connection (optional)

• Equipped with TCPlus Control
• 7″ color touch screen
• Renewed icons for ease of use
• Possibility of adding a 2-axis positioner as an option
• Advanced OFFSET function
• Immediate language change
• Auto-tuning of the main machine components
• Quick change function from mm to inches and back
• Bend Speed programmable for each individual bend of the program.
• Possibility of adding Limitless programs on the USB port
• Each single program can contain up to 30 bends.
• Possibility of bending to the right or left thanks to special tools

Flexion modulus	42 cm³
Minimum external diameter	10 mm – 1/8″
Maximum Bend Radius (CLR)	400 mm
Minimum Bend Radius (CLR) 36 mm	36 mm
Installed power	3.5 kW
Power Supply	400 V 3 ph / 50-60 Hz
Bend speed	0 – 1.3 rpm
Dimensions (Length x Width x Height)	500x850x1200 mm
Weight	480 kg
