Ercolina TB050T Mandrel Benders (TB050T)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

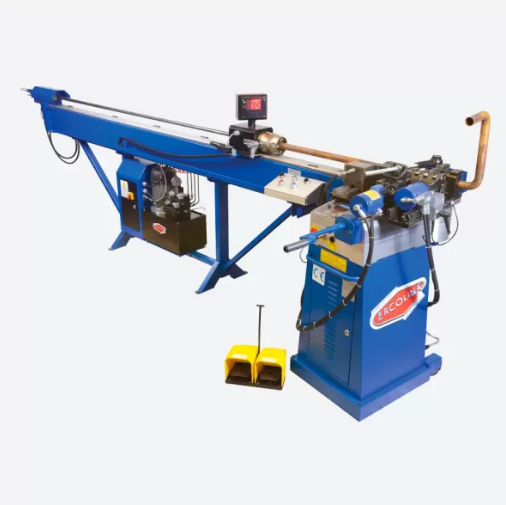

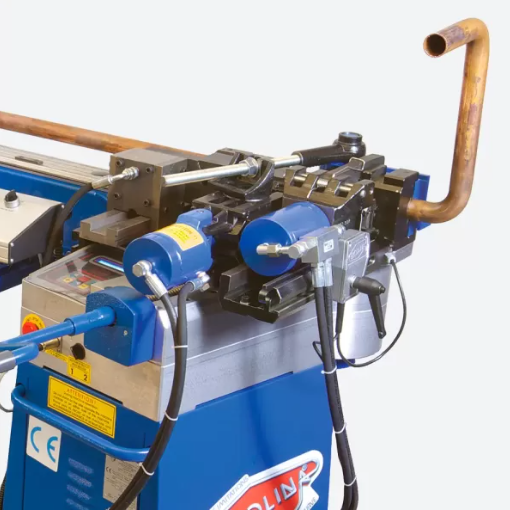

The TB050T is a sensational machine, equipped with a removable mandrel bench with digital display for positioning and spindle rotation values, capable of bending up to 50 × 3.31 mm. Small, compact, revolutionary, it is the simple solution to your bending problems. Prepared for Industry 4.0.

Manual positioning of B and Y axes with display of values on a digital display positioned on the spindle

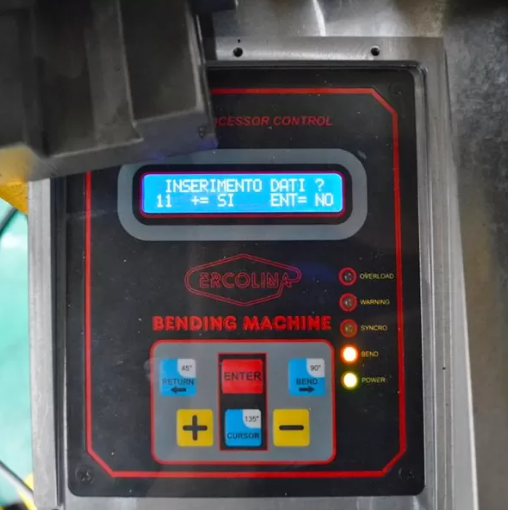

Possibility of programming the sequence of curves, mandrel pre-extraction and springback compensation angle.
Independent adjustment of slide and jaw.
Micrometric adjustment of wiper die.
Auxiliary system for stabilizing the hydraulic pressure of the slide.
Quick tool change system
Pneumatic clamping of the collet

Flexion modulus	6 cm³
Minimum external diameter	10 mm
Maximum outer diameter	60 mm
Maximum Bend Radius (CLR)	200 mm
Minimum Bend Radius (CLR)	20 mm
Maximum bend angle	210°
Installed power	3.5 kW
Programs	30 x 9
Bend speed	1.25 / 2.5 rpm
Tank capacity	15 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	4000 x 950 x 1250 mm
Weight	430 kg (3 m) 530 kg (6 m)
