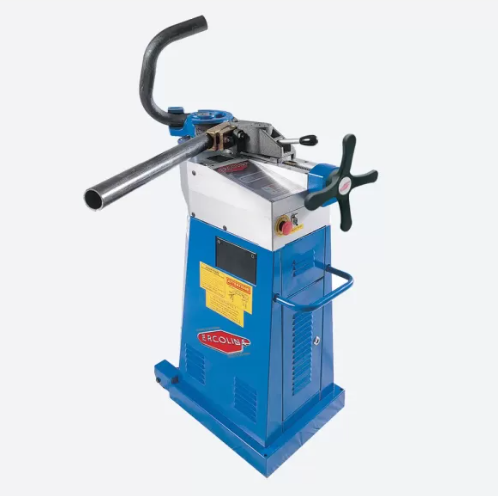

Ercolina SB48 Rotary Draw Benders (SB48)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The SB48 is a revolutionary machine, with compact dimensions, robust structure, and enormous bending capabilities. Available with Three-phase or Single-phase motor.

Standard Steel Tube Capacity: 48 x 3.5 mm
Capacity : 1″ 1/2 x 3.68 mm
Square tube capacity (FE42): 40x40x3 mm
Large bend radius:: from R10 to R300 mm
Overload control system with flashing warning lights
Available with three-phase and single-phase motor
Possibility of adapting (optional) a two-axis positioner (A40/P) to allow serial production
Simple and fast tool change system (Ercolina^® Patent)
Easy to move thanks to the built-in wheels and retractable handle.
Pedal control

Flexion modulus	6 cm³
Minimum external diameter	5 mm
Maximum Bend Radius (CLR)	300 mm
Minimum Bend Radius(CLR)	10 mm
Installed power	1.5 kW
Power Supply	110-220 – 400 V 1 – 3 ph/50-60hz
Bend Speed	2/3 rpm
Dimensions (Length x Width x Height)	410 x 1000 x 570 mm
Weight	110 kg
