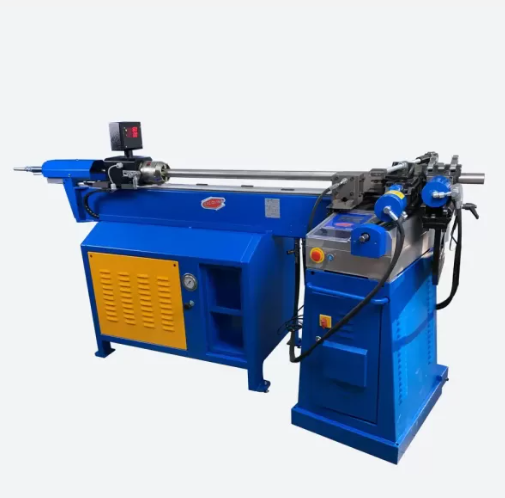

Ercolina MG030 A NC Mandrel Benders (MG030)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The MG030 A NC is an extraordinary machine, small, simple to use, fast, high-performance. The machine Ercolina customers love the most, the indispensable mandrel bender. Indispensable for artisanal work, but with large quantities, for essential product repeatability.

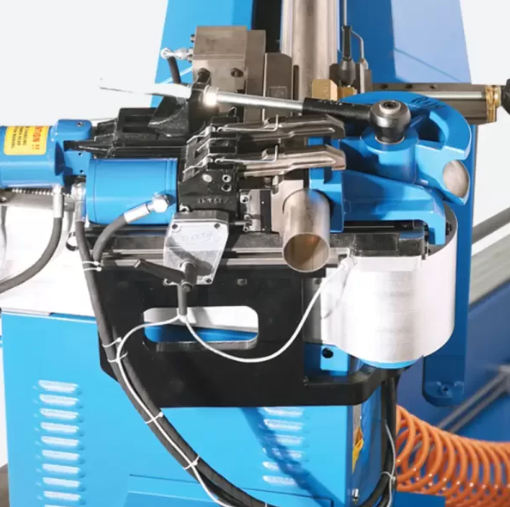

FST closing system (Patented) with auxiliary system for stabilizing the hydraulic pressure of the slide.
Programmable bending C axis and 2-axis manual mandrel carriage positioning (Y1=Feed and B=Rotation) with high resolution encoder and adjustable standard mechanical stops.

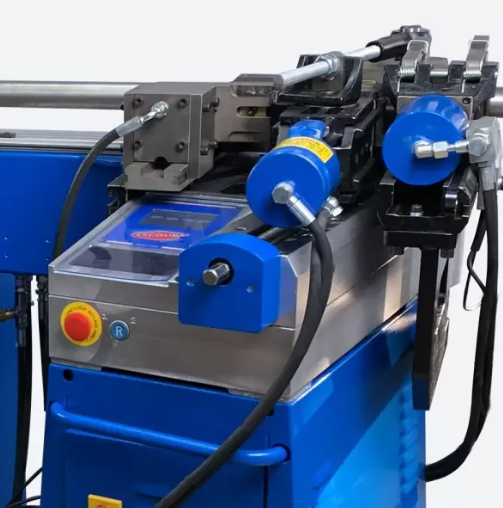

Multifunction control keyboard integrated into the machine body with microprocessor control with multifunctional menu; 30 programs with 9 curves each storable (MG030-AV2T); TC PLUS Control has the unlimited programs with 30 curves each storable.

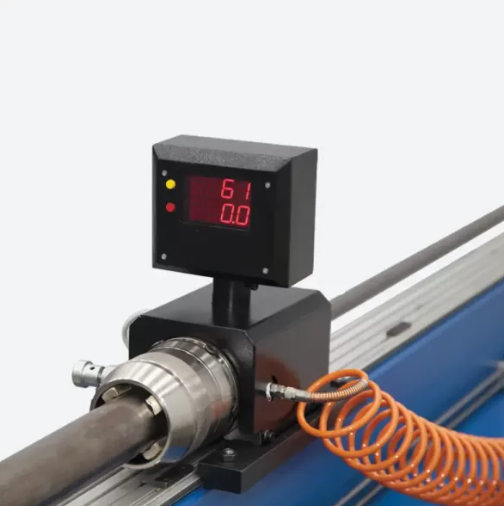

Screen for digital display of carriage feed (Y1 Axis) and rotation (B Axis)
External pressure gauges to facilitate system setting and closing pressure.
Variable bending speed up to 4 rpm (Versions with inverters).
Available core banks of 1.5, 3, 4 and 6 meters.
Pneumatic mandrel.

Flexion modulus	10 cm³
Minimum external diameter	10 mm
Maximum outer diameter	76 mm
Maximum Bend Radius(CLR)	200 mm
Minimum Bend Radius (CLR)	20 mm
Maximum angle of curvature	210°
Installed power	4.2 kW
Programs	30 x 9 Unlimited (TC Plus)
Bend speed	Variable with Inverter
Tank capacity	15 lt. hydraulic oil
Noise level	65 dB
Dimensions (Length x Width x Height)	2500 × 950 × 1250 (1.5 m) 4000 × 950 × 1250 (3 m) 5000 × 950 × 1250 (4 m) 7000 × 950 × 1250 (6 m)
Weight	680 kg (1.5 m) 850 kg (3 m) 900 kg (4 m) 1010 kg (6 m)
