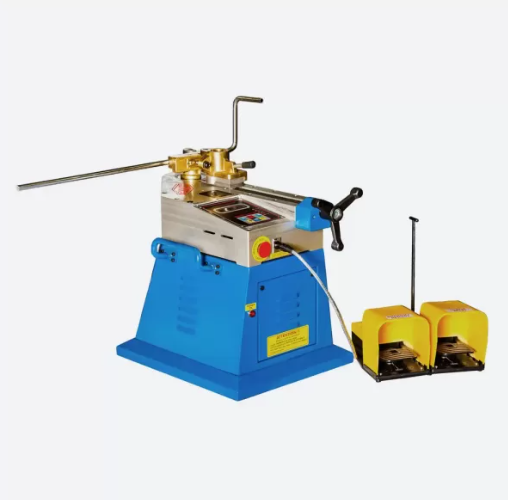

Ercolina MB42 Portable Rotary Draw Benders (MB42P)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The MB42 is a small sized portable machine with large capacities, with a three-phase or single-phase motor, with the possibility of adding a two-axis positioner, a simple and fast tool change system and a very convenient pedal control.

Electromechanical bending C axis with digital display of values
Overload control system with flashing warning lights
Available with single-phase motor
Quick and easy tool change system (Ercolina^® Patent)
Easy to move thanks to the side handles
Pedal control

Flexion modulus	4 cm³
Minimum external diameter	5 mm
Max. bend radius (CLR)	260 mm
Min. bend radius (CLR)	10 mm
Installed power	1.5 kW
Supply voltage	220-400 V 1-3 PH / 50-60 Hz
Bend speed	1.64 rpm
Dimensions (Length x Width x Height)	400 x 1000 x 570 mm 400 x 450 x 570 mm (PM)
Weight	80 kg 50 kg (PM)
