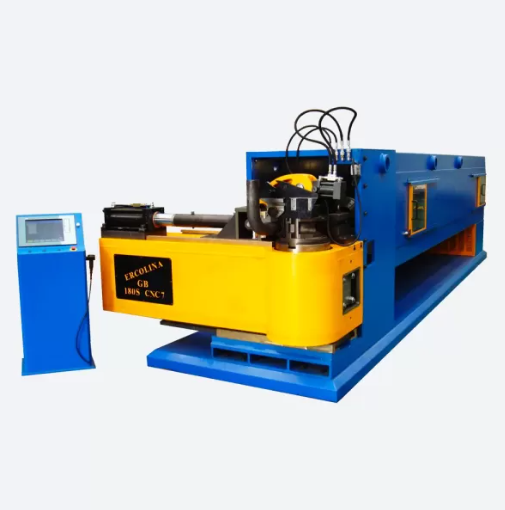

Ercolina GB180 Mandrel Benders (GB180)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The GB180 is a robust, fully automatic CNC for large diameters, with a feasibility analysis system with real 3D simulation.

The control board allows programming in “polar” and “Cartesian” mode
Adjustment of the springback setting for each single curve
USB PORT for unlimited saving of programs and information
Quick tool change system for increased productivity

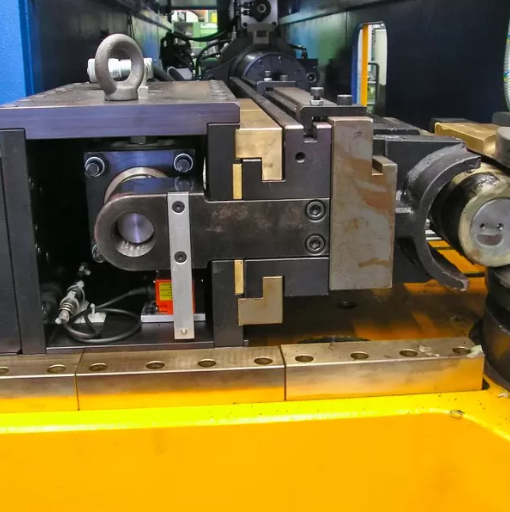

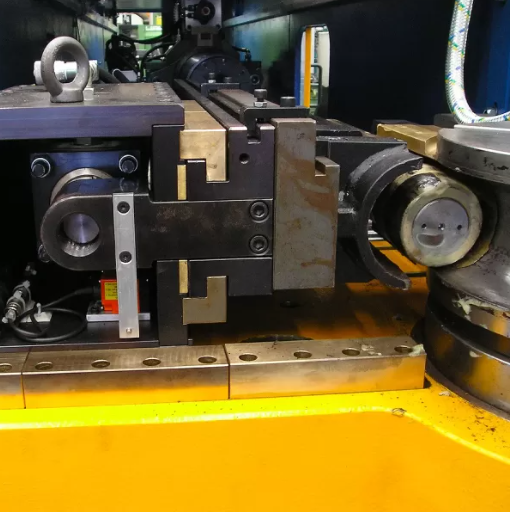

Ercolina patented KST tube clamping system
Interactive PLC with touch screen guarantees simple access to manual and
automatic operating modes; integrated system diagnostics and multilingual
operator interface
Remote control by hand
Import of .iges .dxf .Iges Tekla files (optional)
Wi-fi

Flexion modulus	121 cm³
Minimum external diameter	10 mm
Maximum outer diameter	180 mm
Maximum Bend Radius (CLR)	500 mm
Minimum Bend Radius (CLR)	40 mm
Maximum angle of curvature	195 °
Installed power	33 kW
Programs	Unlimited
Bend speed	7,3° /s
Tank capacity	300 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	7860 x 2290 x 1830 mm
Weight	12500 kg
