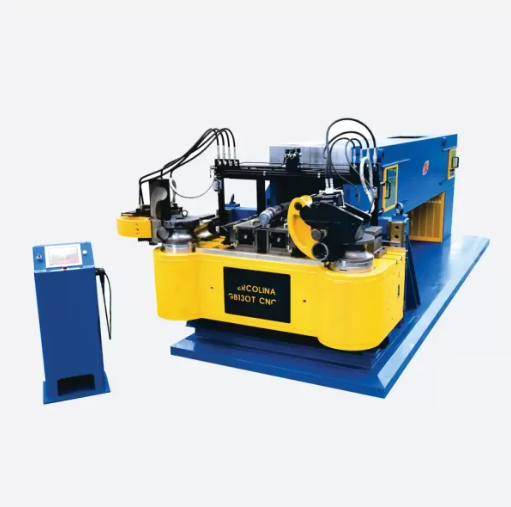

Ercolina GB130T Mandrel Benders (GB130T)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The GB130T has 2 heads, a patented tube clamping system and a precision encoder on each axis.

Twin head bender
Fast Tool Change
Programmable slide, booster and spindle positions (X2, Y2, Y3 axes)
KST patented tube clamping system
Heavy steel structure to offer rigidity and absence of vibrations (patented)
Precision encoders on each axis
Intuitive touch screen control with unlimited memory thanks to the external USB
pen drive
Control joystick with class 3 safety
Interactive PLC with touch screen guarantees simple accessibility to manual
and automatic operating modes, integrated system diagnostics and multilingual
operator interface.
Import of .iges .dxf .Iges Tekla files (optional)
Wi-fi

Flexion modulus	70 cm³
Minimum external diameter	–
Maximum outer diameter	141.3 mm
Maximum Bend Radius (CLR)	300 mm
Minimum Bend Radius (CLR)	40 mm
Maximum angle of curvature	–
Installed power	33 kW
Programs	Unlimited
Bend speed	12,3° /s
Tank capacity	300 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	7410 x 2100 x 1925 mm
Weight	10800 kg
