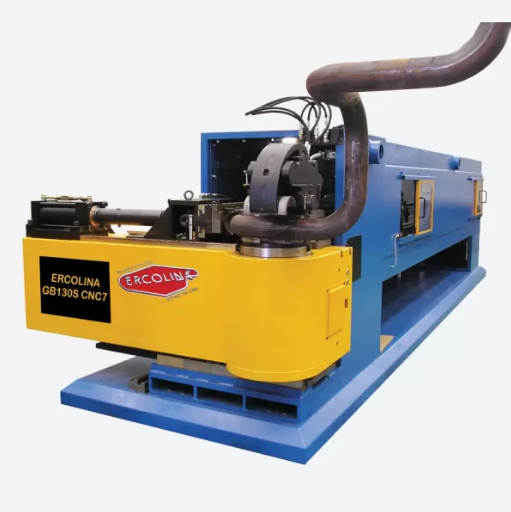

Ercolina GB130 Mandrel Benders (GB130)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The GB130 is the right machine for large diameters! Max loading capacity Ø 142, minimum bend radius 40mm with KST tube clamping system and real-time feasibility analysis with 3D simulation!

The control board allows you to program in “polar” and “Cartesian” mode
Adjustment of the springback setting for each bend.
USB PORT for unlimited saving of programs and information
Quick tool change system for greater productivity
Standard hydraulic fittings that allow you to mount the patented Ercolina hydraulic vice closing system (KST)
Interactive PLC with touch screen guarantees simple access to manual and
automatic operating modes; integrated system diagnostics and multilingual operator interface
Import of .iges .dxf .Tekla files (optional)
Wi-fi access

Flexion modulus	70 cm³
Minimum external diameter	10 mm
Maximum outer diameter	142 mm
Maximum Bend Radius (CLR)	450 mm
Minimum Bend Radius (CLR)	40 mm
Maximum bend angle	195°
Installed power	33 kW
Programs	Unlimited
Bend speed	12,3° /s
Tank capacity	300 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	66934 x 2165 x 1790 mm
Weight	9000 kg
