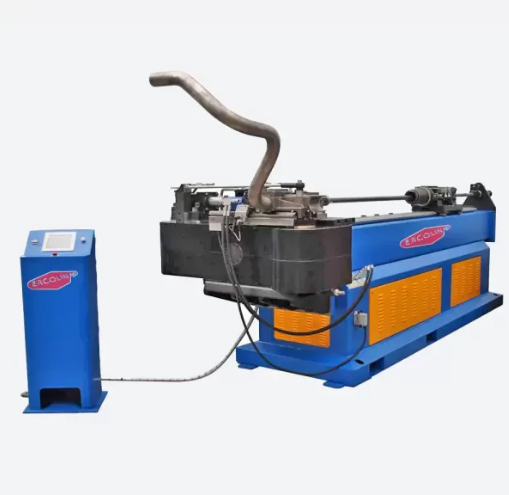

Ercolina GB100 SNC Core Bender (GB100)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The GB100 SNC is a sensational machine, equipped with a 4- or 6-meter mandrel bench with cylinder-operated mandrel extraction system.

Robust and rigid structure
GS500 spheroidal cast iron head with high mechanical strength and innovative guide system (Patented)
Compact and hard-wearing bend axis, with chain and cylinder, which ensures
a constant bend speed for high performance and precision
Mandrel extraction system operated by a cylinder.
C axis (Bending angle), X2 axis (Slide lateral movement) and Y2 axis (Booster
movement) hydraulic and programmable with digital reading of the values
Manual Positioning of the two-axis spindle carriage (Y1=feed and B=rotation)
2-meter extension available
Import of .iges .dxf .Iges Tekla format files (optional)
Wi-fi

Flexion modulus	25 cm³
Minimum external diameter	10 mm
Maximum outer diameter	79 mm
Maximum Bend Radius (CLR)	250 mm
Min. bend radius (CLR)	20 mm
Maximum angle of curvature	195°
Installed power	27 kW
Programs	Unlimited
Bend speed	5/7 rpm
Tank capacity	200 lt. hydraulic oil
Noisiness	63 dB
Dimensions (Length x Width x Height)	5700 x 1100 x 1550 mm
Weight	2700 kg
