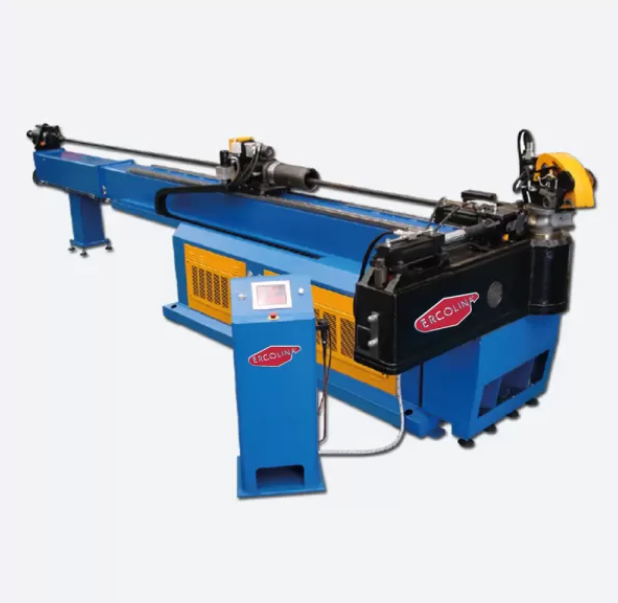

Ercolina GB100 SCNC6V3 Mandrel Benders (GB100)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The GB100 SCNC6V3 has 6 programmable and hydraulically operated axes: carriage
movement (Y1 axis), rotation of the bending plane (B axis), bending angle (C axis), lateral slide movement (X2 axis), booster (Y2 axis) and mandrel movement (Y3 axis).

Robust and rigid structure
GS500 spheroidal cast iron head with high mechanical strength and guide system in innovative configurations (Patented)
Compact and hard-wearing bending axis, with chain and cylinder, which ensures a constant bend speed for high performance and precision.
Mandrel extraction system operated by a cylinder with the possibility of programming early mandrel extraction.
Touch screen control with 3D visualization of the tube and collision prevention system for tube/machine, tube/floor, tube/external elements, and tube/tooling.
6 programmable and electro-hydraulically operated axes: carriage movement (Y1 axis) and rotation of the bending plane (B axis) via electric motors; bending angle (C Axis), lateral slide movement (X2 Axis), booster (Y2 Axis) and mandrel movement (Y3 Axis) are hydraulic.
Wi-Fi kit
2-meter extension available (optional)
Import of .iges .dxf .Iges Tekla format files (optional)

Flexion modulus	56 cm³
Minimum external diameter	10 mm
Maximum outer diameter	120 mm
Maximum Bend Radius (CLR)	400 mm
Minimum Bend Radius (CLR)	40 mm
Maximum angle of curvature	195°
Installed power	23 kW
Programs	Unlimited
Bend speed	7,6° /s
Tank capacity	200 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	6200 x 1750 x 1485 mm
Weight	3000 kg
