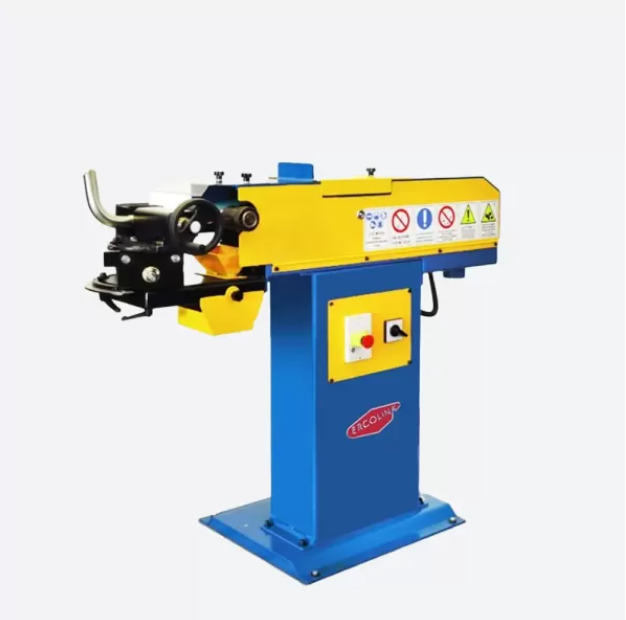

Ercolina EN100 Metalworking (EN100)

Brand : Ercolina

Stock Amount : 1

Notify me when the price goes down

Notify me when it is in stock

The EN100 is a sensational machine, for unique notching and grinding.

Tube Notching for angles up to 60° and 76mm in diameter
Safe and valid alternative to the use of band saws, plasma cutters and cutters
Patented transverse and longitudinal movement system that extends belt life and reduces heat
Use of top-quality abrasive belts that allow processing on a wide range of materials including: carbon steel; stainless steel; aluminum, titanium and more
Graduated vice 0-60° adjustable in height to vary the notching angle and carry out more complex processes
Patented quick roller change system
By removing the vice, the machine can be used with the special roller as a conventional grinder.
Large and practical deburring surface
Over 25 working rollers available
Tool-free belt change.

Standard sanding belt size	2000 x 100 mm
Installed Power	4 kW
Motor speed	2800 rpm
Power Supply	220/400 V
Weight	200 kg
Dimensions	500 x 1500 x 1500 mm

Notching	Ø 76 mm (3” OD) at 0° Ø 60 mm (2” 3/8 OD) up to 45° Ø 32 mm (1” 1/4 OD) up to 60°
Grinding	Ø 140 (5″ 1/2) with kit Front Grinding upon request
