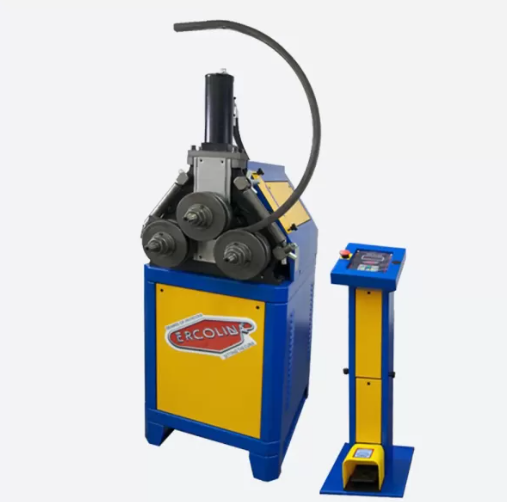

Ercolina ECO50V1T Ring Roller Machine (ECO50V1T)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The ECO50V1T Ring roller machine is an extraordinary machine, available with two or three driving rollers with digital readout of the position of upper roller.
Supplied with a set of universal rollers.
Shaft diameter 50 mm, robust and heavy machine body, with rigid parts to bend even high section profiles, available with lateral guide system on request.

Compact and powerful ring roller machine with an excellent quality/price ratio.
Set of universal tools included with each machine
Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal flexion
Reinforced main frame, designed for superior performance compared to machines of the same class
Ercolina patented push roller descent system which minimizes profile deformation
Control with programmable touchpad and digital reading of the positioning of the central roller
Possibility of storing up to eight (8) Programs and unlimited steps

Shaft diameter	50 mm
Standard diameter work rollers	178 mm
Thrust roller max stroke	142 mm
Shaft speed	9 rpm
Number of independent driving rollers	3 smooth
Voltage	220/240 – 380/440 V
Engines	1.85 kW
Hydraulic unit motor	1.50 kW
Machine Body	Cast iron GS500
Piston thrust	114 000 N
Machine work plan	Horizontal and vertical
Upper roller adjustment	Hydraulic
Display	Digital
Machine base	Electrowelded steel
Num. storable programs	8
Electric pedal control	YES
Dimensions	650 x 1270 x 1100 mm
Weight	430Kg
