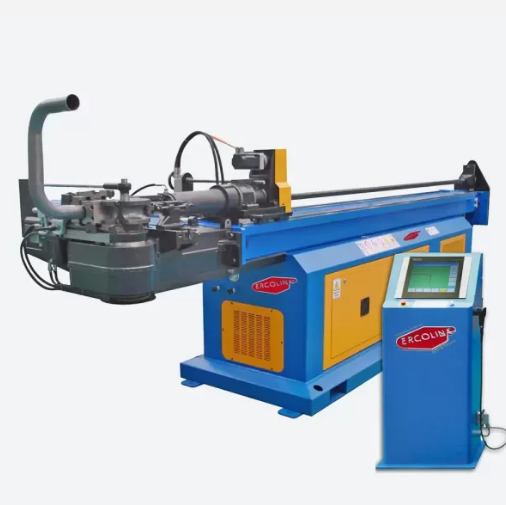

Ercolina EB76 CNCV7S Mandrel Benders (EB76)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The EB76 CNCV7S is an incredible machine, fully automatic 6-axis hydraulic machine for large diameters with intuitive and visual programming and max bending capacity ⌀ 76.1 x 6.8 mm.

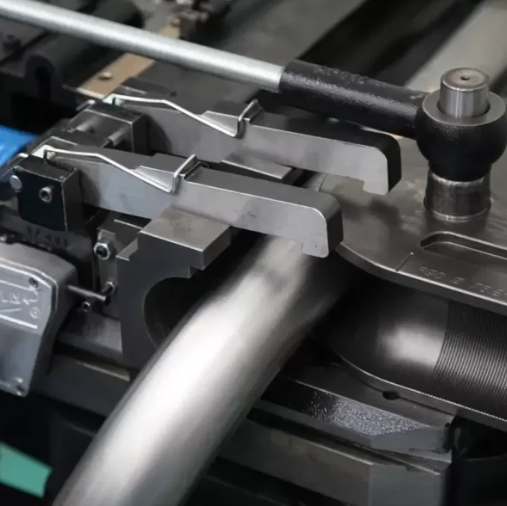

FST Locking System (Patented)
6 programmable axes: electric carriage movement (Y1 axis) and rotation of the bending plane (B axis) with powerful and precise brushless motors; bending angle (C Axis), lateral slide movement (X2 Axis), booster (Y2 Axis) and mandrel movement (Y3) are hydraulic.
Touch screen control with 3D visualization of the tube and collision prevention system for tube/machine, tube/floor, tube/external elements and tube/tooling.
Import files in .iges and .dxf Tekla format (optional)
Early core extraction in automatic cycle
Integrated Wi-Fi
Extensions of 2 meters each available (optional)

Flexion modulus	25 cm³
Minimum external diameter	10 mm
Maximum outer diameter	79 mm
Maximum Bend Radius (CLR)	250 mm
Minimum Bend Radius (CLR)	20 mm
Maximum angle of curvature	195°
Installed power	27 kW
Programs	Unlimited
Bend speed	5/7 rpm
Tank capacity	200 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	5700 x 1100 x 1550 mm
Weight	2700 kg
