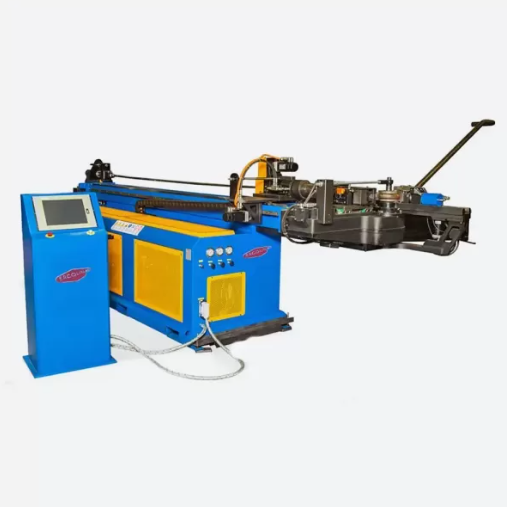

Ercolina EB65 CNC3V1 Mandrel Benders (EB65)

Brand : Ercolina

Price : 0,00 EURO(Vat included)

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The EB65 CNC3V1 is a sensational machine, equipped with a completely free cantilever head made of high-quality cast iron, 3-axis electro-hydraulic CNC and feasibility analysis with real simulation!

Cantilever head
FST Locking System (Patented)
Y1 axis (carriage movement) and B axis (rotation of the bending plane) are programmable and electric with brushless motors; C axis (bending axis) is hydraulic programmable.
Touch screen control with 3D visualization of the pipe and anti-collision system for tube/machine, tube/floor, tube/external elements and tube/tooling.
Early mandrel extraction in automatic cycle
Individual speed control of the three axes and high precision of positioning dimensions
Integrated Wi-Fi kit for programming
Extensions modules of 2 meters each available (optional)
Import .iges .dxf .iges Tekla files (optional)

Flexion modulus	12.5 cm³
Minimum external diameter	10 mm
Maximum outer diameter	76 mm
Maximum Bend Radius (CLR)	250 mm
Minimum Bend Radius (CLR)	20 mm
Maximum angle of curvature	195°
Installed power	23 kW
Programs	Unlimited
Bend speed	6/8 rpm
Tank capacity	200 lt. hydraulic oil
Noise level	63 dB
Dimensions (Length x Width x Height)	5700 x 1100 x 1550 mm
Weight	2300 kg
