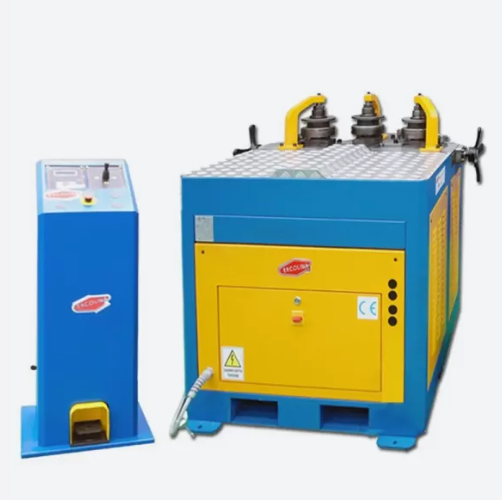

Ercolina CE60H3VG Ring Roller Machine

Ercolina CE60H3VG Ring Roller Machine

Ercolina CE60H3VG Ring Roller Machine (CE60H3VG)

Brand : Ercolina

Stock Amount : 1

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

The Ring roller machine CE60H3VG is an extraordinary machine, 50 mm shaft diameter, robust and heavy machine body. Maximum capacity for round tube 90mm x 4mm

Shaft Diameter 50 mm
Maximum capacity on round tube 90 mm x 4 mm
Maximum capacity on Gas tube 3” x 4 mm
Maximum capacity on angle sections 80 x 80 x 11 mm
Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal bending
High Modular Section
Variable Interaxis from 300 to 600 mm
Universal tool set included with each machine
Possibility of storing up to (8) eight individual programs and unlimited passages

Shaft diameter	50 mm
Standard diameter working rollers	178 mm
Thrust roller max stroke	142 mm
Shaft speed	6 rpm
Number of independent driving rollers	3 smooth
Voltage	440 V
Engines	2 x 1.1 kW
Hydraulic unit motor	1.85 kW
Machine Body	Steel
Piston thrust	170 000 N
Machine work plan	Horizontal
Upper roller adjustment	Hydraulic
Display	Digital
Machine base	Electrowelded steel
Number of storable programs	8
Electric control Pedal	YES
Dimensions	1250 x 1320 x1 200 mm
Weight	730 kg
