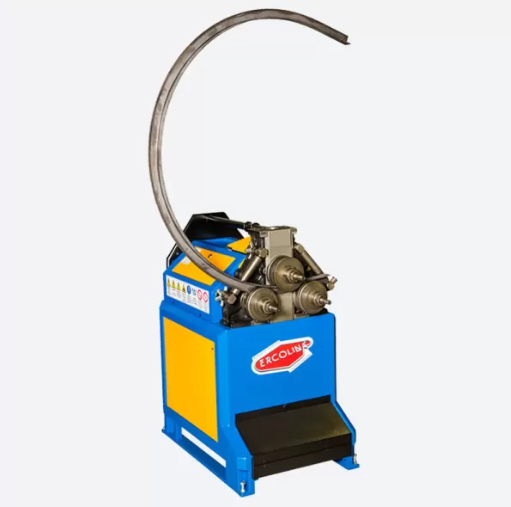

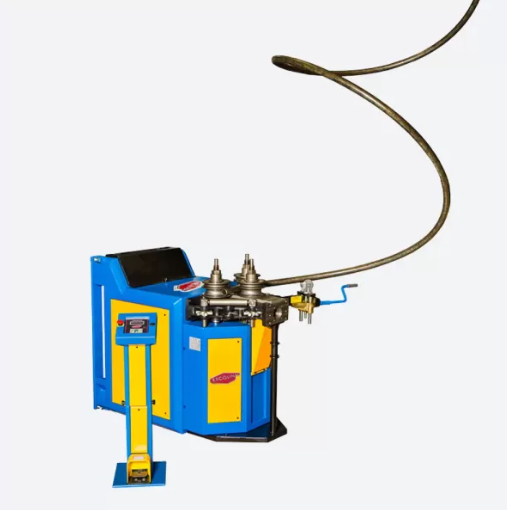

Ercolina CE50H Ring Roller Machine (CE50H)

The CE50H Ring roller machine is an extraordinary machine, available with two or three driving rollers with digital readout of the positioning of the upper roller.
Supplied with a set of universal rollers.

Ercolina’s CE50H angle roller model offers hydraulic positioning of the roller center.

• Maximum Capacity for tube 80 x 2 mm
• Maximum capacity for gas tube 2-1/2″ x 3.6 mm
• Maximum capacity for corner profiles 60 x 60 x 6 mm
• Set of universal rollers included with each machine
• Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal bending
• Heavy and robust machine body with very rigid parts
• Ercolina patented push roller descent system which minimizes profile deformation
• Control with programmable touchpad and digital reading of the positioning of the central roller
• Possibility to store up to eight (8) Programs and unlimited passages
