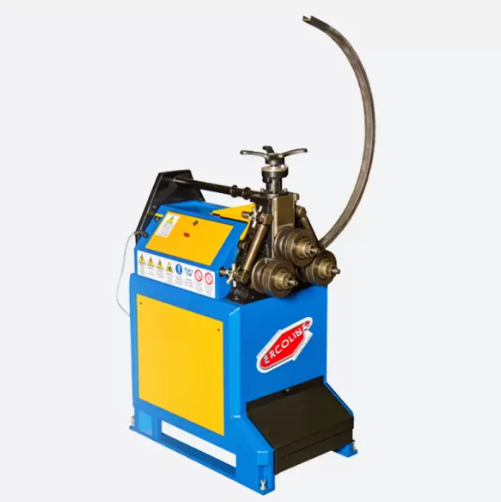

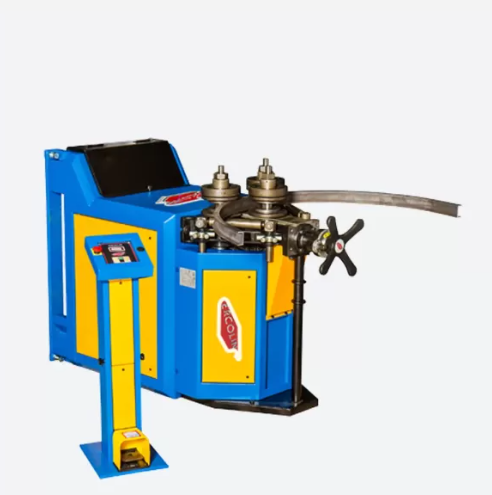

Ercolina CE40MR Ring Roller Machine (CE40MR)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The CE40MR Ring roller machine is an extraordinary machine, available with two or three driving rollers, supplied with a set of universal rollers.
Ercolina^® CE40MR angular roller models are available with both manual and hydraulic positioning of the central roller.

Universal tool set included with every machine
Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal flexion
Heavy and robust machine body with very rigid parts to bend even high section profiles
Reinforced main frame
Digital display of the central roller position
Threaded shafts equipped with micrometric adjustment ring nut for correct and easy positioning of the tools; normally the use of additional spacers is not required.
Direct shaft guidance system
The anti-twisting / anti-torsion lateral guide system for "leg in" corner profiles is available on request.
A 2-speed version is also available.

Shaft diameter	40 mm
Work rollers standard diameter	165 mm
Thrust roller max stroke	124 mm
Shaft speed	10 rpm / 10-20 rpm (mod. V2 60Hz)
Number of independent driving rollers	3 smooth and 2 knurled
Voltage	220/240 – 380/440 V
Engines	1.85 kW
Hydraulic unit motor	NO
Machine Body	Cast iron GS500
Piston thrust	NO
Machine work plan	Horizontal and vertical
Upper roller adjustment	Manual with gear reducer
Display	Digital
Machine base	Electrowelded steel
Pedal Electric control	YES
Dimensions	560 x 1430 x 980 mm
Weight	300 kg
