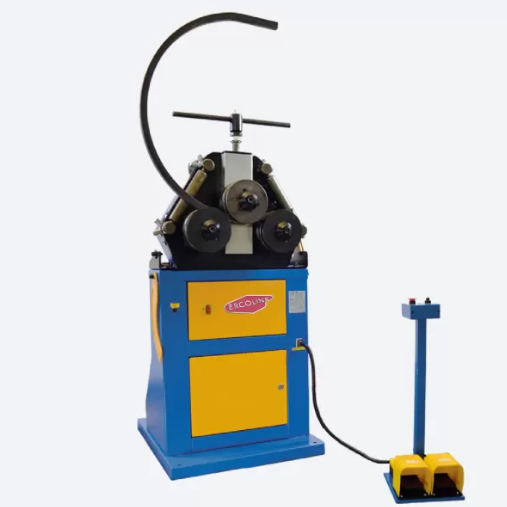

Ercolina CE40M Ring Roller Machine (CE40M)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The Ring roller machine CE40M it is an extraordinary machine, available with two or three driving rollers with digital or analogue readout of the positioning of the upper roller. Equipped with a set of universal rollers. 40 mm shaft diameter, sturdy, and heavy machine body, with rigid parts to bend even high section profiles, available with lateral guide system on request.

Shaft diameter 40 mm
Machine equipped with inverter
Universal roller set included with each machine
Forged, treated and ground nickel-chromium steel shafts for maximum
performance with minimal bending
Heavy and robust machine body with very rigid parts to bend even profiles with
large sections
Reinforced main frame
Manual positioning of the center roller
Threaded shafts equipped with micrometric adjustment ring nut for correct and
easy positioning of the tools; the use of additional spacers is normally not required.
Direct shaft guidance system
The anti-twisting / anti-torsion lateral guide system for internal wing corner
profiles is available on request
Available with two and three driving rollers and with digital or analogue reading
of the positioning of the upper roller
Standard Power Supply Single-phase

Shaft diameter	40 mm
Standard working roller diameter	165 mm
Max push roller stroke	155 mm
Speed shafts	5-10 rpm
Number of independent driving rollers	3 smooth and 2 galvanized
Tension	220 V
Engines	0.75 kw
Hydraulic control unit motor	NO
Machine Body	Cast iron GS500
Piston thrust	NO
Machine work plan	Horizontal and vertical
Upper roller adjustment	Manual
Display	Mechanical Reading (M3A-M2A)
Cabinet base	Electro Welded Steel
Electric control pedal operated	YES
Dimensions	700 x 1460 x 600 mm
Weight	180 kg
