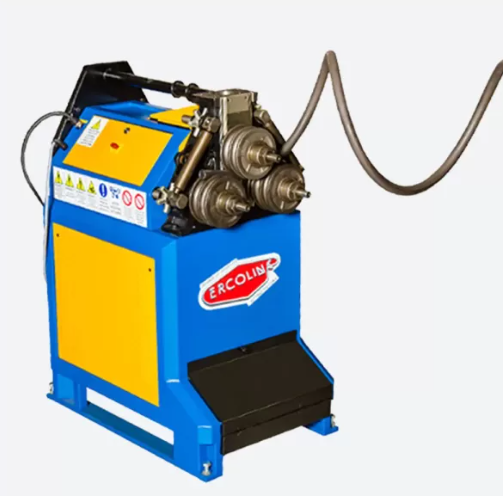

Ercolina CE40H Ring Roller Machine (CE40H)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The CE40H Ring roller machine is an extraordinary machine, available with two or three driving rollers with digital readout of the position of the upper roller.
Equipped with a set of universal rollers.
Shaft diameter 40 mm, robust and heavy machine body, with rigid parts ideal for highly
repeatable work. The CE40H is the most requested Ercolina^® Machine Ring roller machine!

Set of universal rollers included with each machine
Forged, treated and ground nickel-chromium steel shafts for maximum performance with minimal flexion
Heavy and robust machine body with very rigid parts for high repeatability
Ercolina patented upper roller descent system which minimizes profile deformation
Controls with programmable touchpad and digital reading of the positioning of the central roller
Possibility of storing up to eight (8) Programs and Limitless steps
Threaded shafts equipped with micrometric adjustment ring nut for correct and easy positioning of the tools; the use of additional spacers is normally not required.
Direct shaft guidance system
The anti-twisting / anti-torsion lateral guide system for internal wing corner profiles is available on request
The 2-speed model is also available

Shaft diameter	40 mm
The 2-speed model is also available	165 mm
Thrust roller max stroke	124 mm
Speed shafts	10 rpm / 10-20 rpm (mod. V2 60Hz)
Number of independent driving rollers	3 smooth and 2 knurled
Voltage	220/240 – 380/440 V
Engines	1.85 kW
Hydraulic unit motor	NO
Machine Body	Cast iron GS500
Piston thrust	NO
Machine work plan	Horizontal and vertical
Upper roller adjustment	Manual with gear reducer
Display	Digital
Machine base	Electrowelded Steel
Pedal Electric control	YES
Dimensions	560 x 1430 x 980 mm
Weight	340 kg
