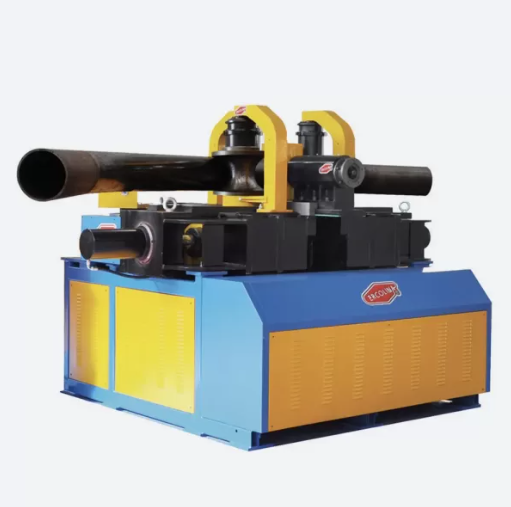

Ercolina CE350H3VG Ring Roller Machine

Ercolina CE350H3VG Ring Roller Machine

Ercolina CE350H3VG Ring Roller Machine (CE350H3VG)

Brand : Ercolina

Stock Amount : 1

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

The Machine CE350H3VG is the largest Ring roller machine in the Ercolina line, shaft diameter 130 mm.

Shaft diameter: 130 mm
Variable interaxis from 1000 to 1500 mm
Forged, treated and ground nickel-chromium steel shafts for maximum
performance with minimal flexion
Controls with programmable touch pad with digital reading of the roller positioning.
Set of universal tools included with each machine
Ability to store up to (8) eight individual Programs and unlimited steps

Shaft diameter	130 mm
Standard diameter work rollers	440 mm
Thrust roller max stroke	300 mm
Shaft speed	3/5 rpm
Number of independent driving rollers	3 smooth
Voltage	400 V
Engines	Plumbers
Hydraulic unit motor	18.5 kW
Machine Body	Welded Steel
Piston thrust	620.000 N
Machine work plan	Horizontal
Upper roller adjustment	Hydraulic
Display	Touch Screen
Number of memorisable programs	8
Pedal Electric control	Independent Panel
Dimensions	2800 x 2800 x 2200 mm
Weight	8000 Kg
