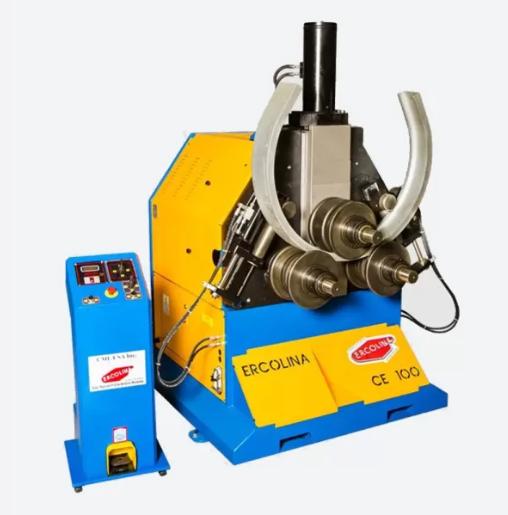

Ercolina CE100H3-RLI Ring Roller Machine (CE100H3-RLI)

Brand : Ercolina

Stock Amount : 1

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

The CE100H3-RLI Ring roller machine has a 100 mm diameter Shaft, a robust and heavy machine body, with rigid parts for bending high section profiles.

100 mm shafts
High modular section, maximum performance with minimum flexions
Electro-welded structure
High quality cast iron single-bloc frame
Forged, treated and threaded shafts to allow micrometric adjustment of the rollers and limit the use of spacers
Heat-treated anti-scratch rollers
Quick tool replacement system.
Strengthening rod device on request
High repeatability guaranteed by the electronic position reading system of the central roller (programmable touch pad)
Simple and intuitive programming
Reduced maintenance
Bends vertically and horizontally
Set of universal tools included in each machine.
Low voltage remote control with pedal.
Direct shaft guidance system

Shaft diameter	100 mm
Standard diameter work rollers	310 mm
Thrust roller max stroke	300 mm
Shaft speed	6 rpm
Number of independent driving rollers	3 smooth
Voltage	380/220/440/480 V
Engines	3 x 1.85 Kw
Hydraulic unit motor	2 kW
Machine Body	Cast iron GS500
Piston thrust	360 000 N
Machine work plan	Horizontal and vertical
Upper roller adjustment	Hydraulic
Display	Digital
Machine base	Electrowelded steel
Number memorisable programs	8
Pedal Electric control	YES
Dimensions	1800 x 1650 x 2000 mm
Weight	2600 kg
