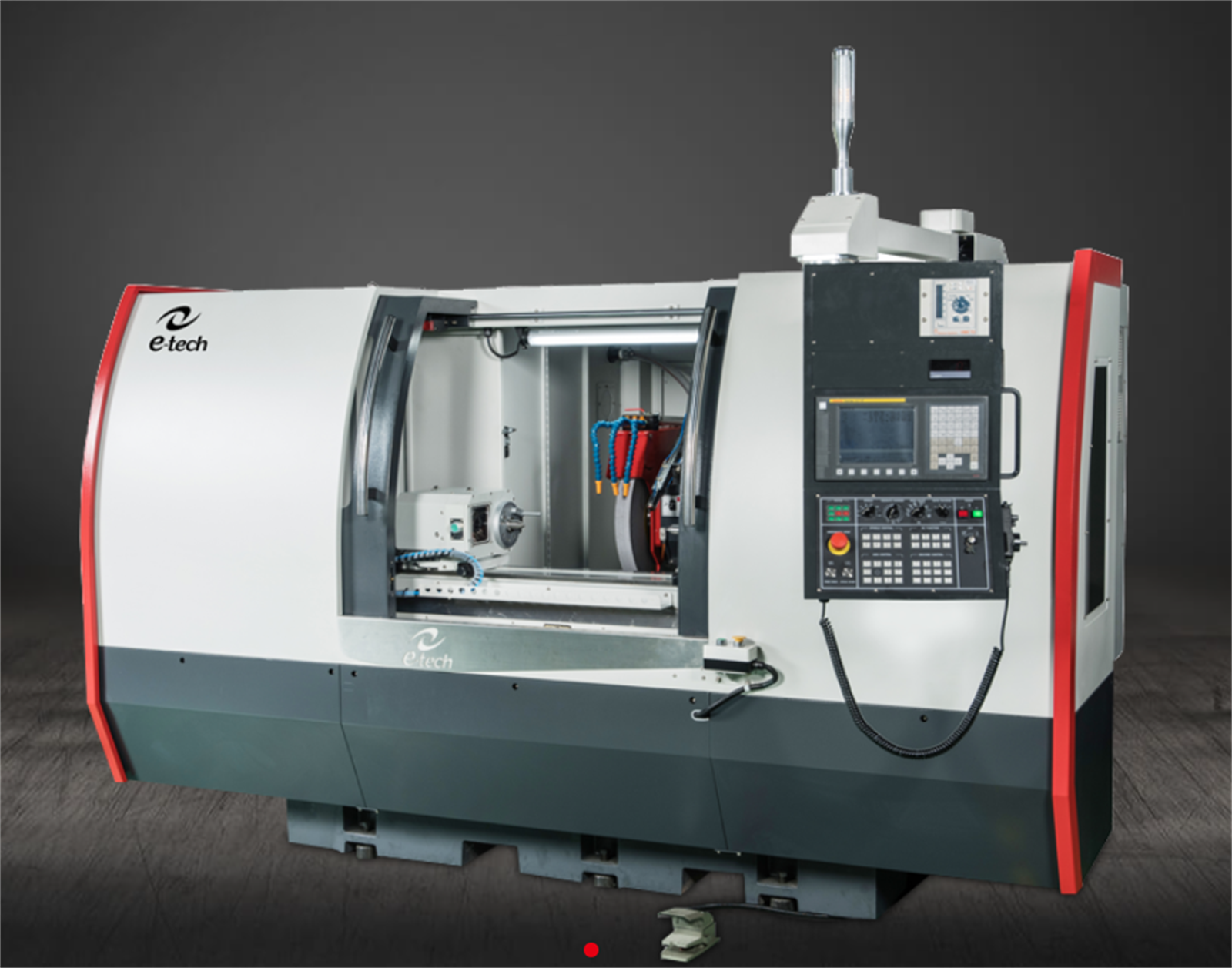

E-tech EGP-50250 Plunge Type Cylindrical Grinder (EGP- 50250)

Infinite variable workhead w/servo motor
Diamond Dresser and Stand
Automatic wheel speed change (15 steps)
Carbide tip center
X Axis Heidenhain linear scale (resolution 0.05 um)
Levelling bolts and blocks
Operation manual and part lists
Fanuc CNC Controller (Oi TF)
Grinding Wheel + Wheel Flange
Standard oil cooler (cooling fan)
Standard coolant tank 140L
MPG handwheel 2 Axes control
Touch probe (for EGA series only)
LED working light
Tools and Tool Box
Electricity cabinet w/ heat exchanger
Semi-enclosed splash guard
Wheel Extractor
4-color indication signal light
Electrical wiring diagram

BS VM25 Integration system
(OD gauging+ crash & gap control + dynamic balance system)
BS VM15 Integration system
(OD gauging+ crash & gap control)
Hydraulic tailstock (w/ foot pedal)
Z Axis Heidenhain linear scale (resolution 0.05 um)
Manual grinding wheel balance system (vibrator)
Grinding wheel dynamic balance system
Wheel spindle lubrication oil cooler for hydrodynamic spindle
Gap & crash control device
Safety door lock
Workhead spindle adjustment arbor
Auto gauging device
Coolant system with magnetic separator & paper filter
Coolant system with magnetic separator
Coolant system with paper filter
Oil & mist collecting system
Spare grinding wheel flange
Full-Carbide center tip
FANUC 0i-TF iGrind program
Mitsubishi controller (M80) iGrind program
Electrical cabinet air conditioner
Interanl grinding attachment (for EGP series only)
Workhead upgrade to MT5 (not suitable for 25 series)
Tailstock upgrade to MT5 (not suitable for 25 series)
Roller type balancing stand/ arbor
Automatic 3-jaw hydraulic chuck
CE standard electrical cabinet
Touch probe
Transformer
Workpiece carrier
Full-enclosed splash guard
Workpiece supporting seat, 2pc / set
2 Point Steady Rest
3-point steady rest
3-jaw scroll chuck
4-jaw scroll chuck

Grinding Capacity	Swing over table	mm	Ø500
	Distance between centers	mm	2500
	Max. grinding daimeter	mm	Ø480
	Max. load held between center	kg	250
	Center distance between spindle & slide table	mm	255
Grinding Wheel	Diameter x Width x Bore	mm	Ø510x50-100xØ152.4(6")
			Opt.Ø610x50～100xØ203.2(8")
	Motor rated power / max. torque	Kw/Nm	7.5kw/49Nm
			(Opt.11Kw/ 71Nm)
	Wheel speed	rpm	1250 (Opt.1650)
Workhead	Max. manual swiveling angle	deg	90
	Spindle speed (infinite variable)	rpm	10～600 (infinite variable)
	Motor rated power / max. torque	kw	1.5
	Center taper		MT4 (Opt. MT5)
	Center working		Fixed or Rotary
	Diameter of bore	mm	Ø26
Tailstock	Tailstock quill travel	mm	25 (Opt.50/75)
	Cente taper		MT4 (Opt. MT5)
X axis	Travel	mm	280
	Max. rapid feedrate	m/min	6
	Heidenhain linear scale resolution	um	0.05
	Min. increment	mm	0.0001
	Servo motor rated power	Kw	1.8(F)/2.2(M)
Z axis	Travel	mm	2950
	Swiveling angle	deg	±3
	Max. rapid feedrate	m/min	10
	Min. increment	mm	0.0001
	Servo motor rated power	kw	2.5(F)/3.5(M)
Motor	Hydraulic motor	Kw	0.38
	Hydrodynamic GW spindle lubrication pump	kw	0.2
	Guide way lubrication pump	kw	0.2
	Coolant pump	Kw	0.2
Machine	Net Weight (semi-enclosed splash guard)	kg	7300
	Gross weight	kg	8100
