3 axes (Y1, Y2, X) CNC control DT-15 - 2D grafic display 15" - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of the bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear guides CNC crowning table upper tool 1010 / A / 75 °, devided and cranked 4-V die block 60x60 2009 (V = 16,22,35 and 50 mm) laser safety device Fiessler AKAS mounted on the upper beam linear guided sheet support arms according to CE rules oilfilling users manual in English or German
Advantages of AD-S compaired to PBF: - more stroke, installation height and throat - higher approach and retraction speed of the top beam - higher backgauge speed - backgauge finger on double instead of single linear guide - more options available such as: additional backgauge axes (e.g. Z1/Z2, Delta X, up to 6 axes), bending aids, laser angle measuring system, tandem design, other CNC controls ...

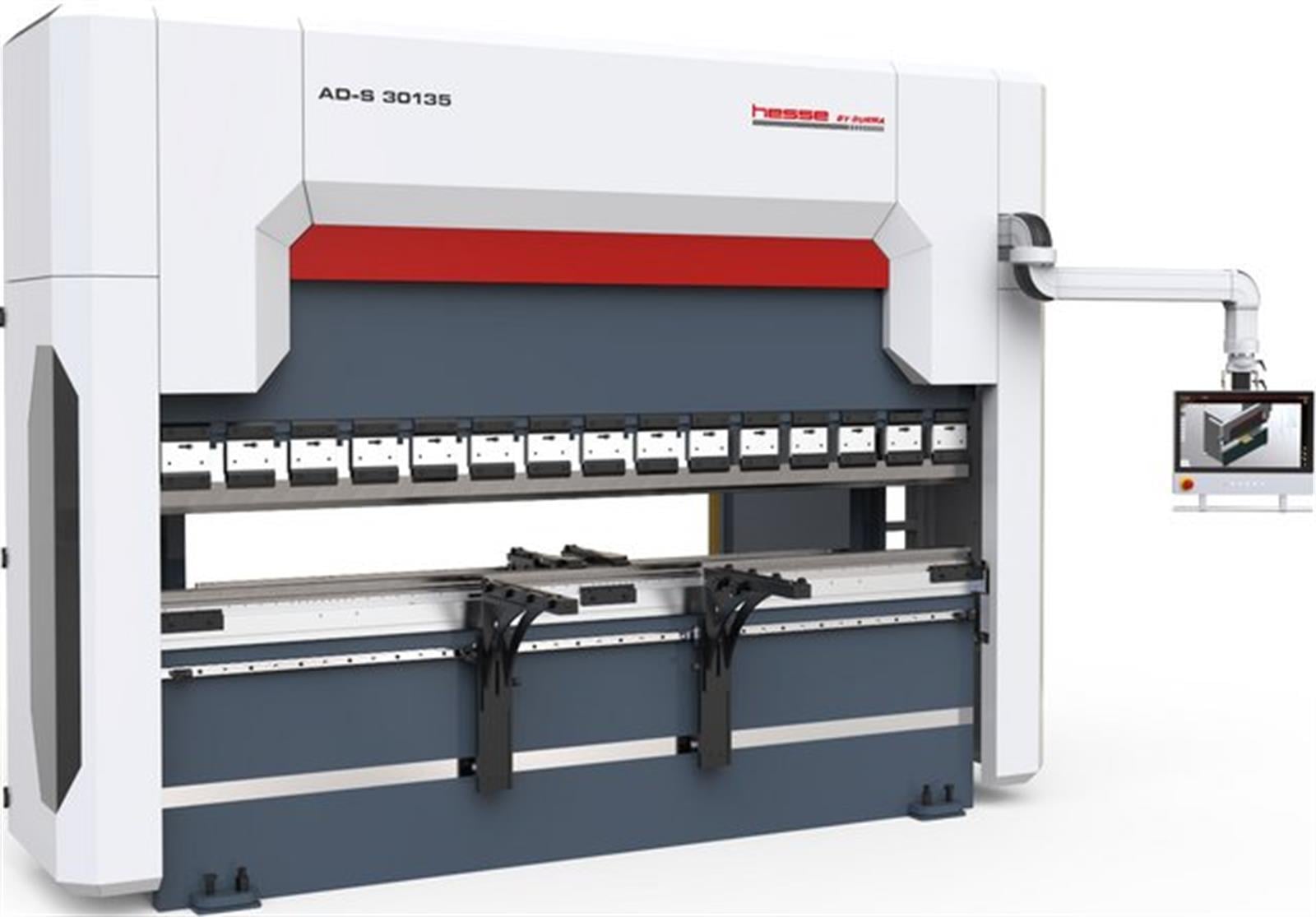

CNC HYDRAULIC PRESSBRAKE AD-S 30135
CONDIRYION OF THE MACHINE - NEW
CNC CONTROL UNIT DA-66T
MOTORIZED CROWNING SYSTEM CONTROLLED FROM CNC
Y1, Y2, X, R, (4 AXIS )
SLIDING FRONT SUPPORTING ARMS
FRONT SAFETY SYSTEM FIESSLERFPSC (MANUEL)
RL.P.135.75.R.08 3050MM SEGMENTED UPPER BLADE
RL.M.460.R 3050MM SEGMENTED BOTTOM BLADE
