AD-R SERIES BAKANT PRESS DURMAZ

PRESS BRAKE

• Y1, Y2, X 3 axis
• Control Unit - CNC Easy Bend
• Back Gauge – Motorized & Linear Slide & Ballscrew System Back Gauge Tongues – Height Adjustable
• European Type Clamping System
• Sliding Front Arms with T-slots and Stops
• CNC Controlled Motorized Crowning (Only for 6 meter machines)
• Special Design – World Class Hydraulic Blocks and Valves
• World Class Electrical Systems

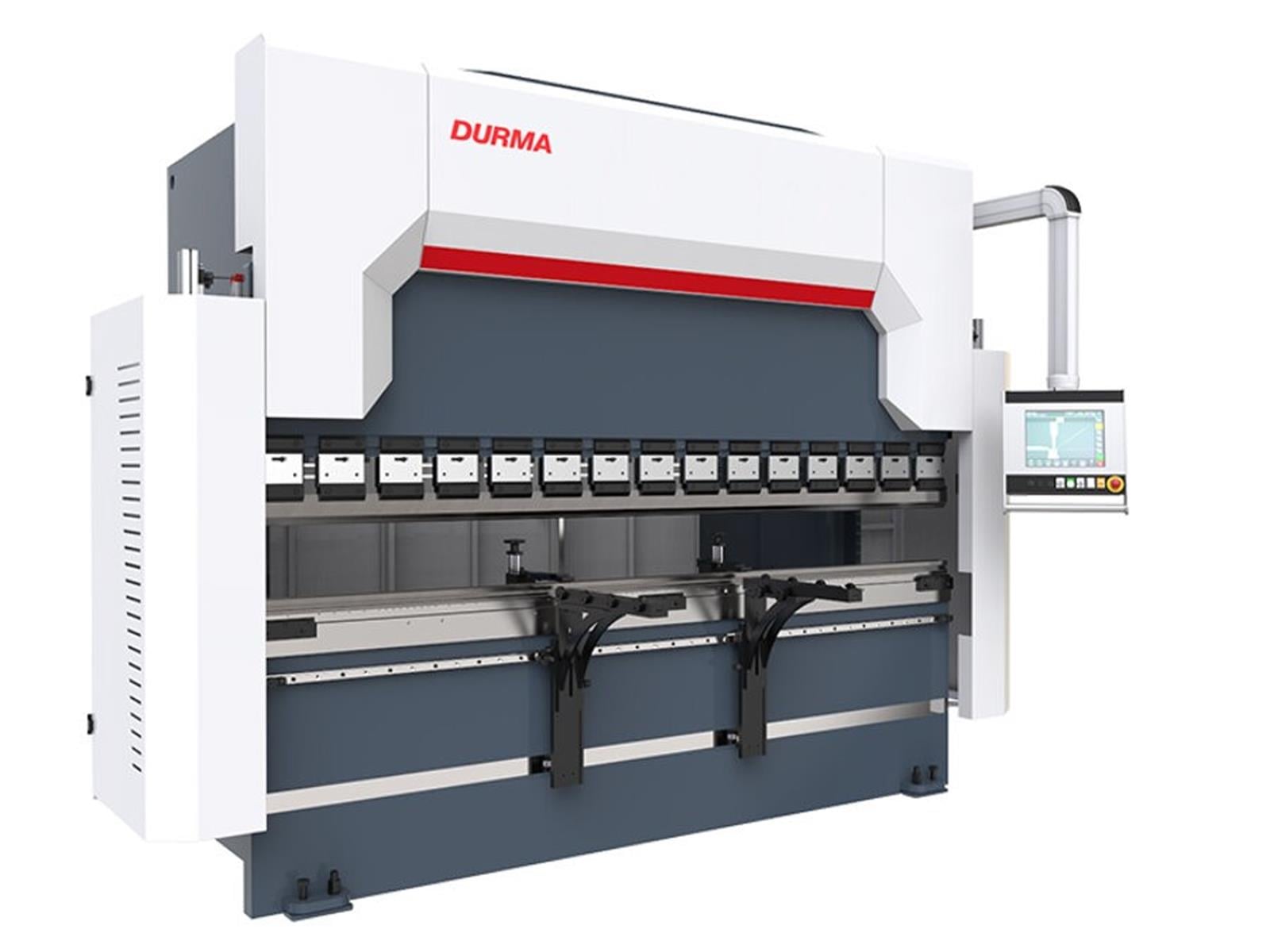

Type: AD-R 30220
bending length: 3050 mm
Press force: 2200 kN
Control: CNC DT-10
Operating hours: 0 h
Controlled axes Backgauge: X,R
passage between the uprights: 2600 mm
stroke length: 265 mm
Installation height: 530 mm
table width: 104 mm
table height: 900 mm
Stands projection: 410 mm
travel range X-axis: 650 mm
traverse speed X-axis: 250 mm/s
Infeed speed: 140 mm/s
folding speed: 10 mm/s
retraction speed: 140 mm/s
Dimensions L/W/H: approx. 4250x1770x2900 mm
Weight: approx. 12250 kg
Standard equipment
Y1,Y2, X=650 mm
Control: CNC DT-15
European tool clamping system
60 mm die holder (only for European die system)
2 support arms movable from the front with linear guidance along the entire length
Backgauge motorized with linear guide & ball screw
Backgauge finger height adjustable
Back stop motor Servo
Safety covers lateral
CE Marking
Extended equipment
Safety system CE
Controlled axes X,R-axis, Z-axis manually adjustable
Quick clamping
CNC controlled motor-driven crowning
