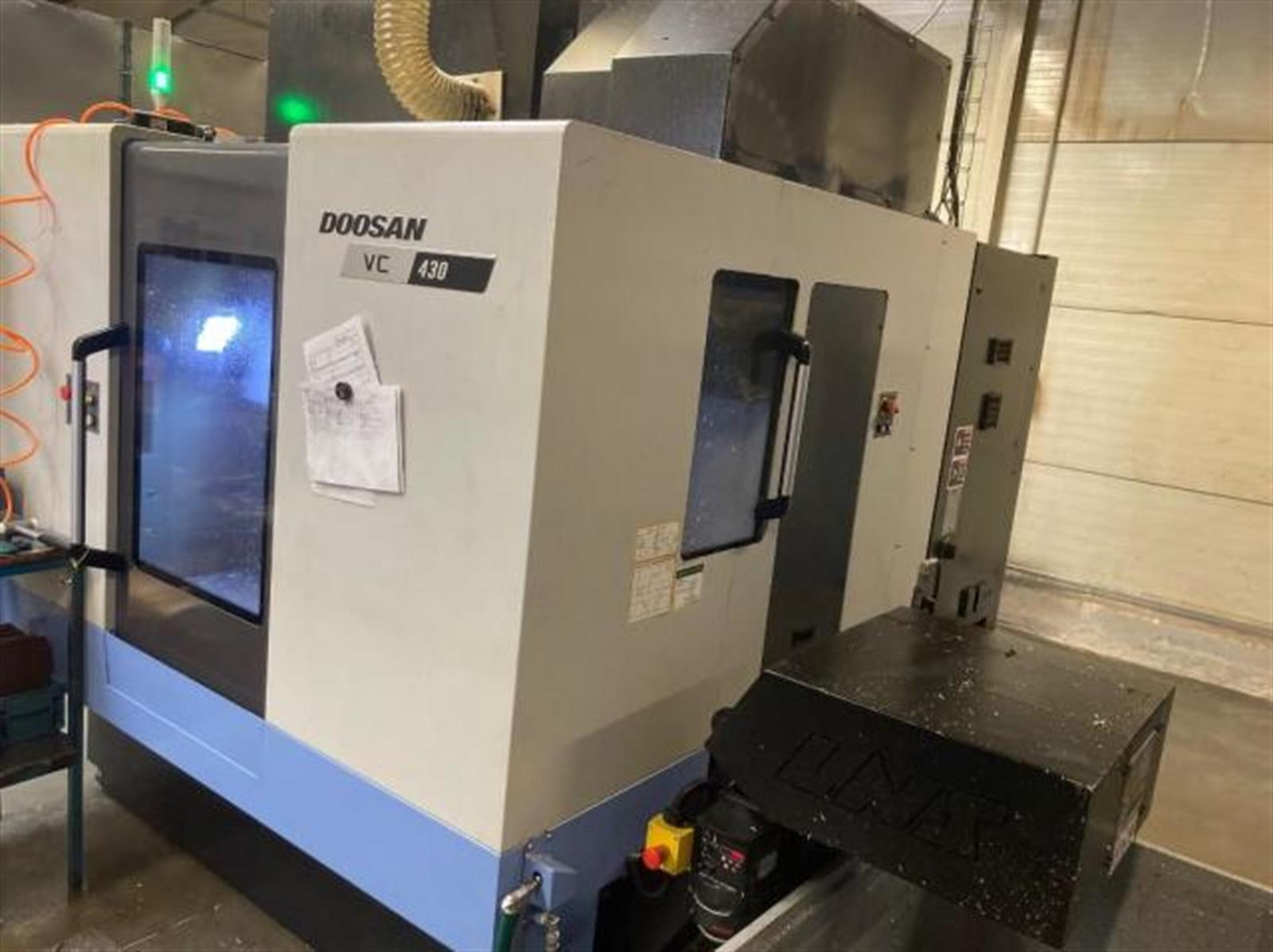

Doosan VC 430APC Machining center - vertical (Doosan VC 430APC Machining center - vertical)

The machine is in good technical condition, it is possible to test it by agreement. Spindle taper ISO 40 Spindle speed - rev. / min. 10000 (12000) Spindle motor power - kW (30 min. / Cont.) 18.5 / 15 X-axis travel - mm 560 Y-axis travel - mm 430 Z-axis travel - mm 570 Table dimensions - mm 2 - 712 x 490 Maximum table load in kg 2 x 300 Automatic pallet exchange. Number of pallets 2. Type of exchange: Rotary 180°. Automatic tool change. Number of tools 30 (40). Maximum tool size, Ø x L - mm 80 x 220 (76 x 220). Tool weight 8 kg. The weight of the machine in basic equipment is 7800 kg. The machine includes one 4th axis. Hydraulic aggregate as an optional item. Machining time: 980 h. Total machine running time: 4340 h. Power time: 5750 h. Commissioning: 05/2019.

Axis X	560 mm
Axis Y	430 mm
Axis Z	570 mm
Rotary table (4th axis)	no
Type of CNC
Table length	712 mm
Table width	490 mm
Spindle taper	ISO 40
Max. spindle speed	10000 rpm
Spindle motor power	18.5 kW
-------------------
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
