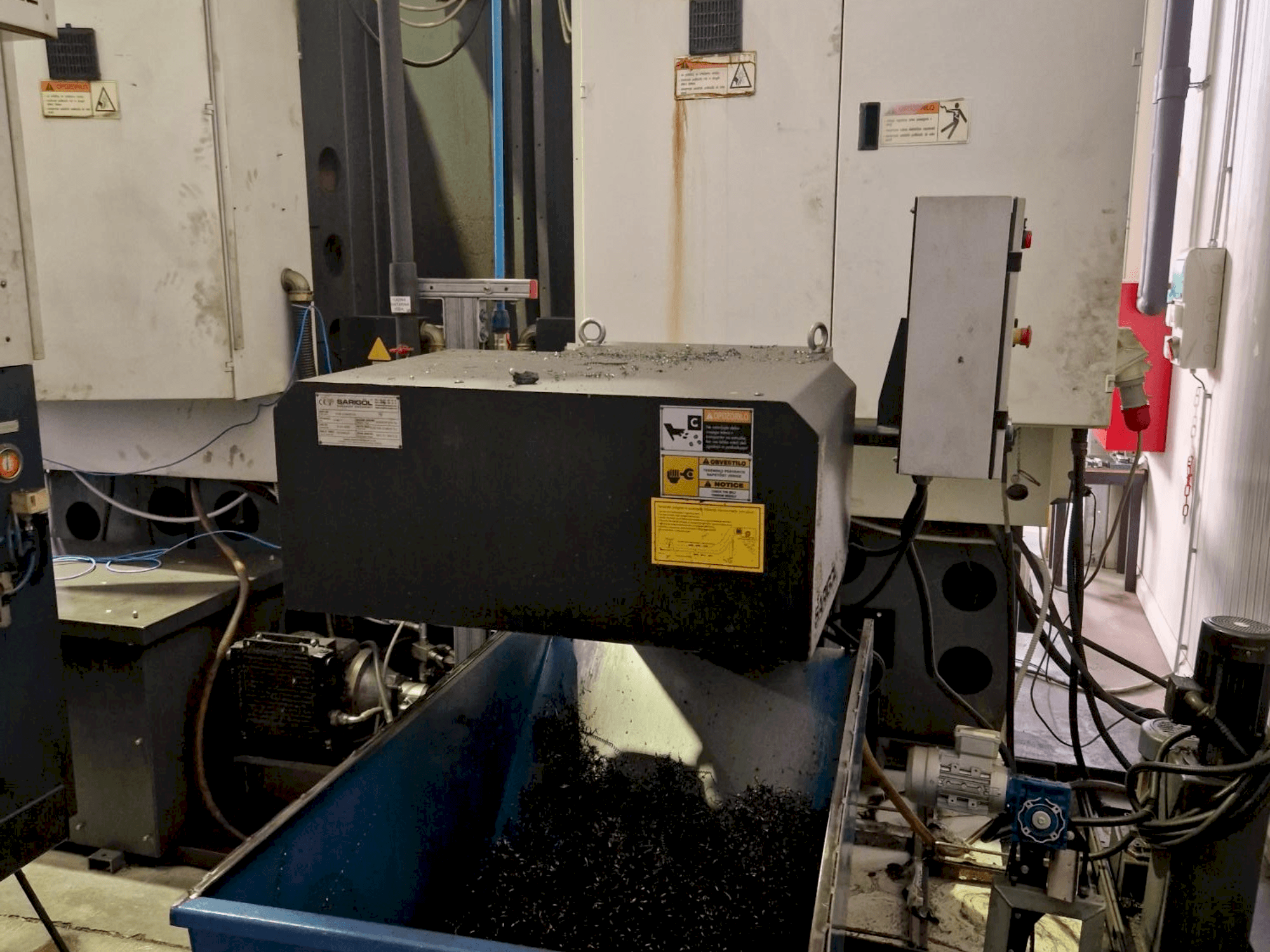

Doosan V740T (Doosan V740T)

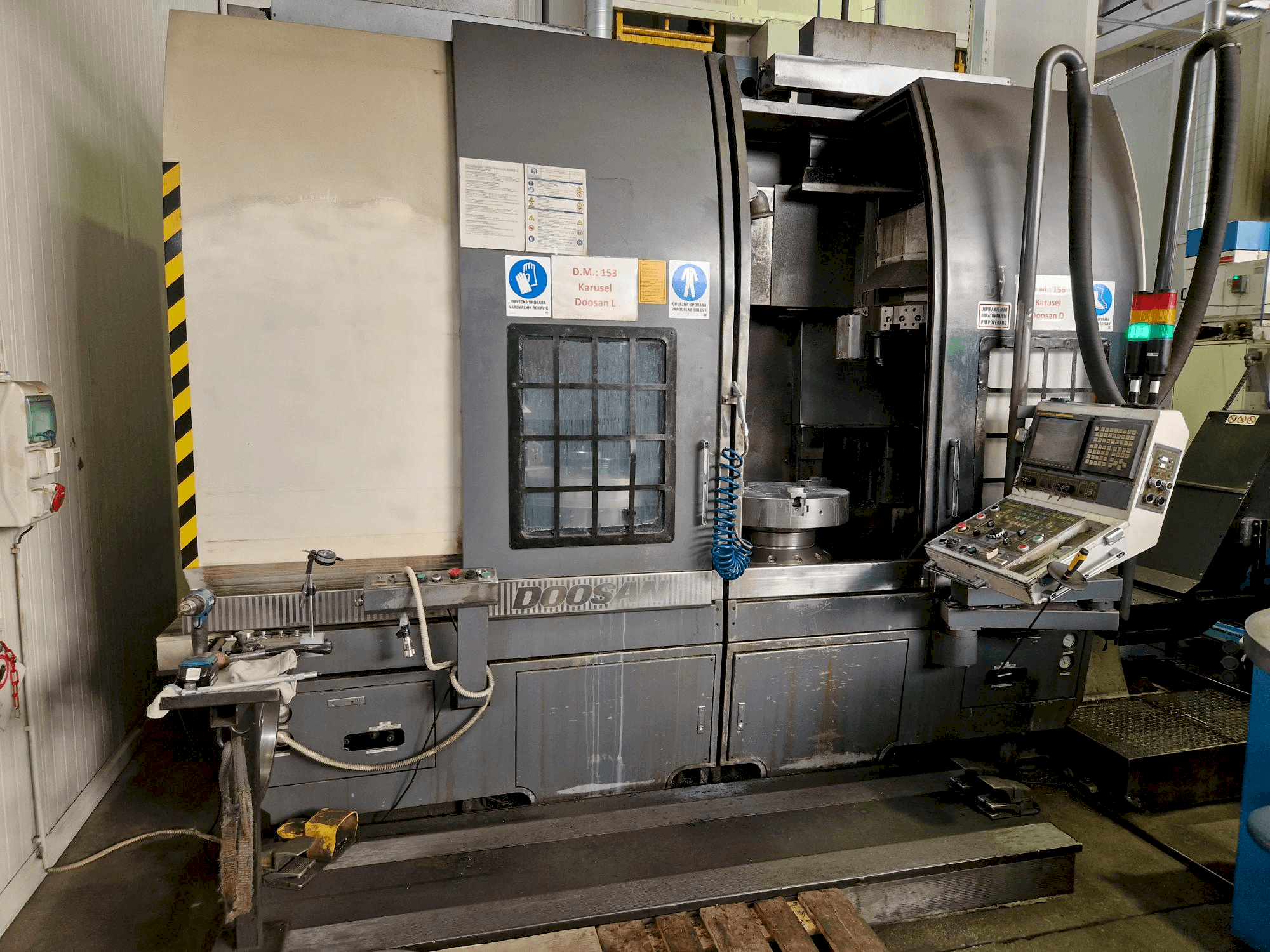

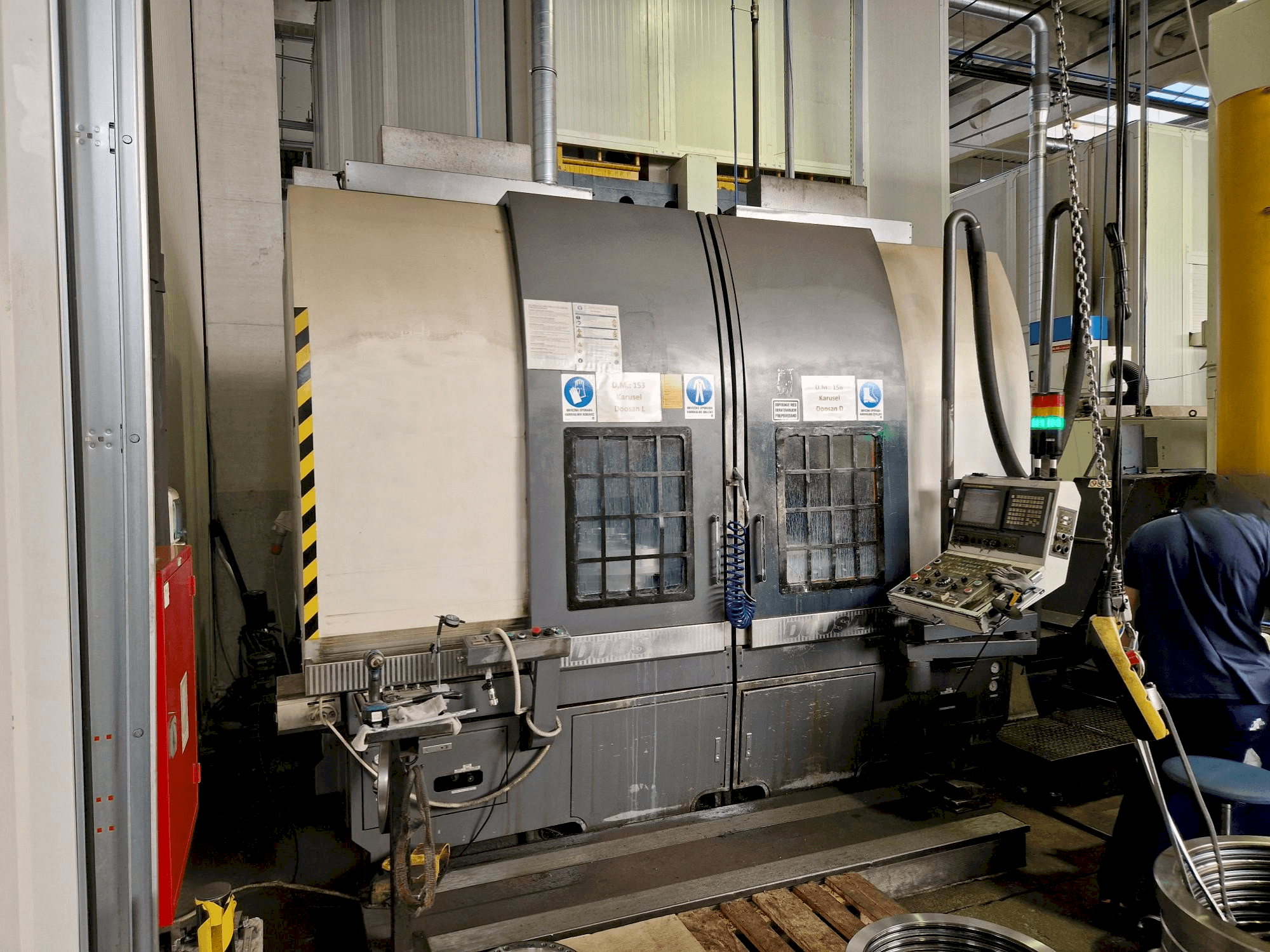

This DOOSAN V740T vertical turning machine was manufactured in 2005. It features a maximum swing diameter of 800 mm, turning diameter of 740 mm, and a turning length of 760 mm. The main spindle supports a rotational speed up to 2000 RPM with a motor power of 30 kW. It includes a 12-position turret and rapid traverse rates of 20 m/min for both X and Z axes. If you are looking to get high quality turning capabilities consider the DOOSAN V740T machine we have for sale. Contact us for further details regarding this machine.

• Brand: DOOSAN

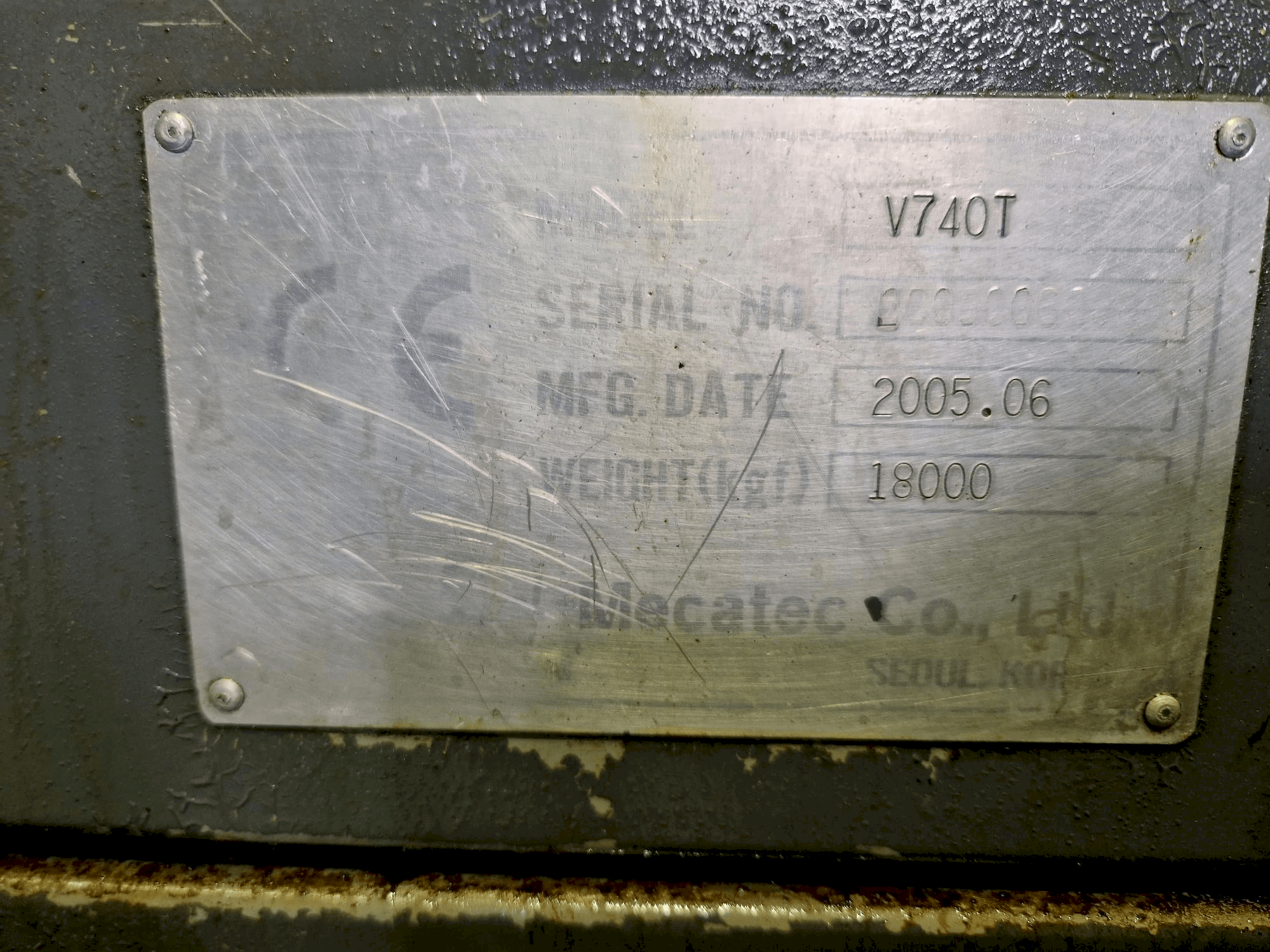

• Year: 2005
• Model: V740T
• Application type: Turning
• Location: Turkey
• Machine type: Vertical Turning Machine
• Availability: Immediately
• Control unit brand: FANUC

General Data

• Machine weight: 18000 kg

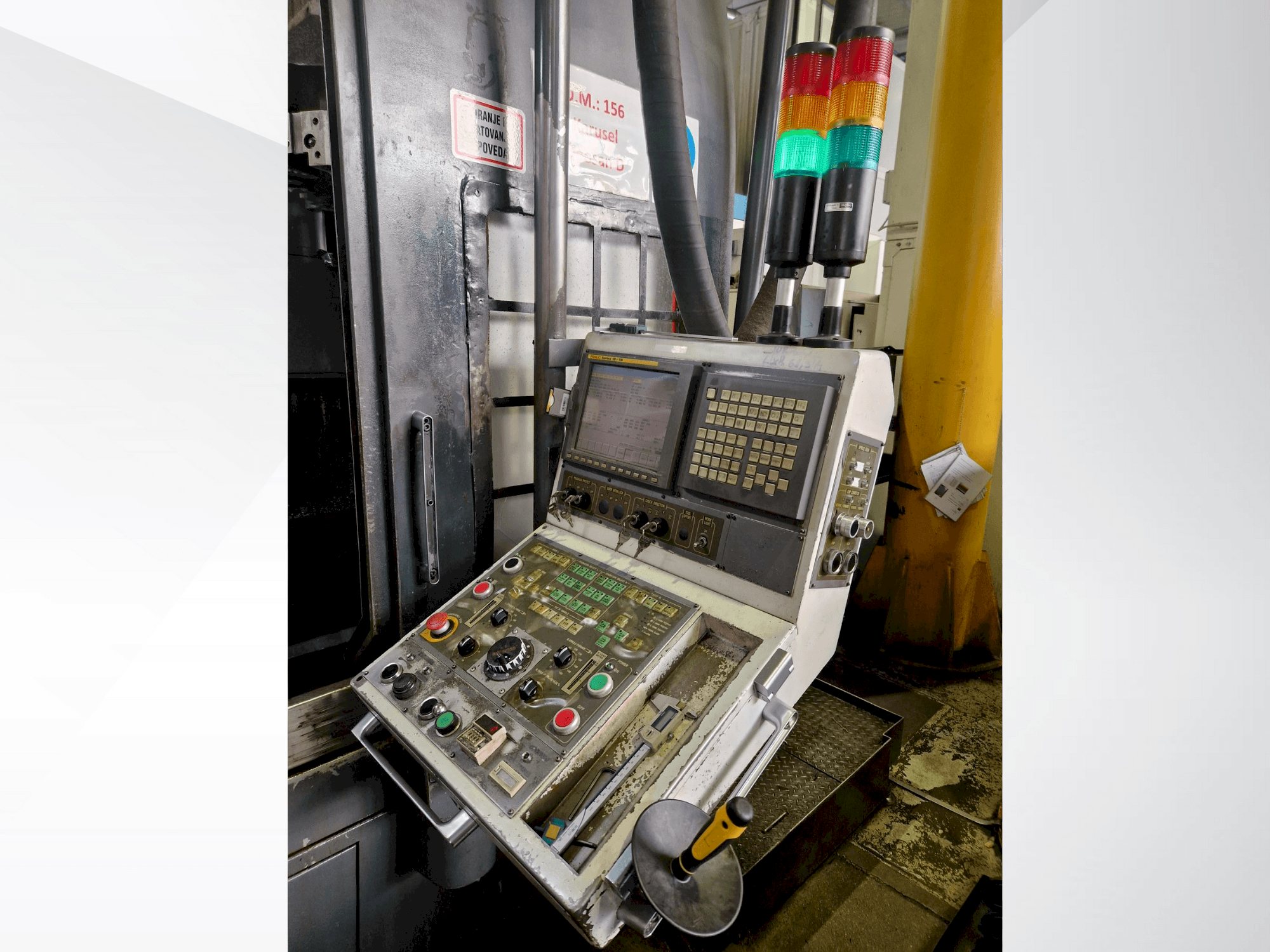

Control Unit

• Brand: FANUC
• Model: FANUC 18I TB

Main drive

• Spindle speed range: 2000 RPM 1/MIN
• Spindle motor power: 30 kW
• Tool taper: ASA A2-11
• Number of axis: 2

Movement

• X-AXIS Movement: 380 mm
• X-AXIS Rapid traverse: 20 m/min
• Z-AXIS Movement: 760 mm
• Z-AXIS Rapid traverse: 20 m/min

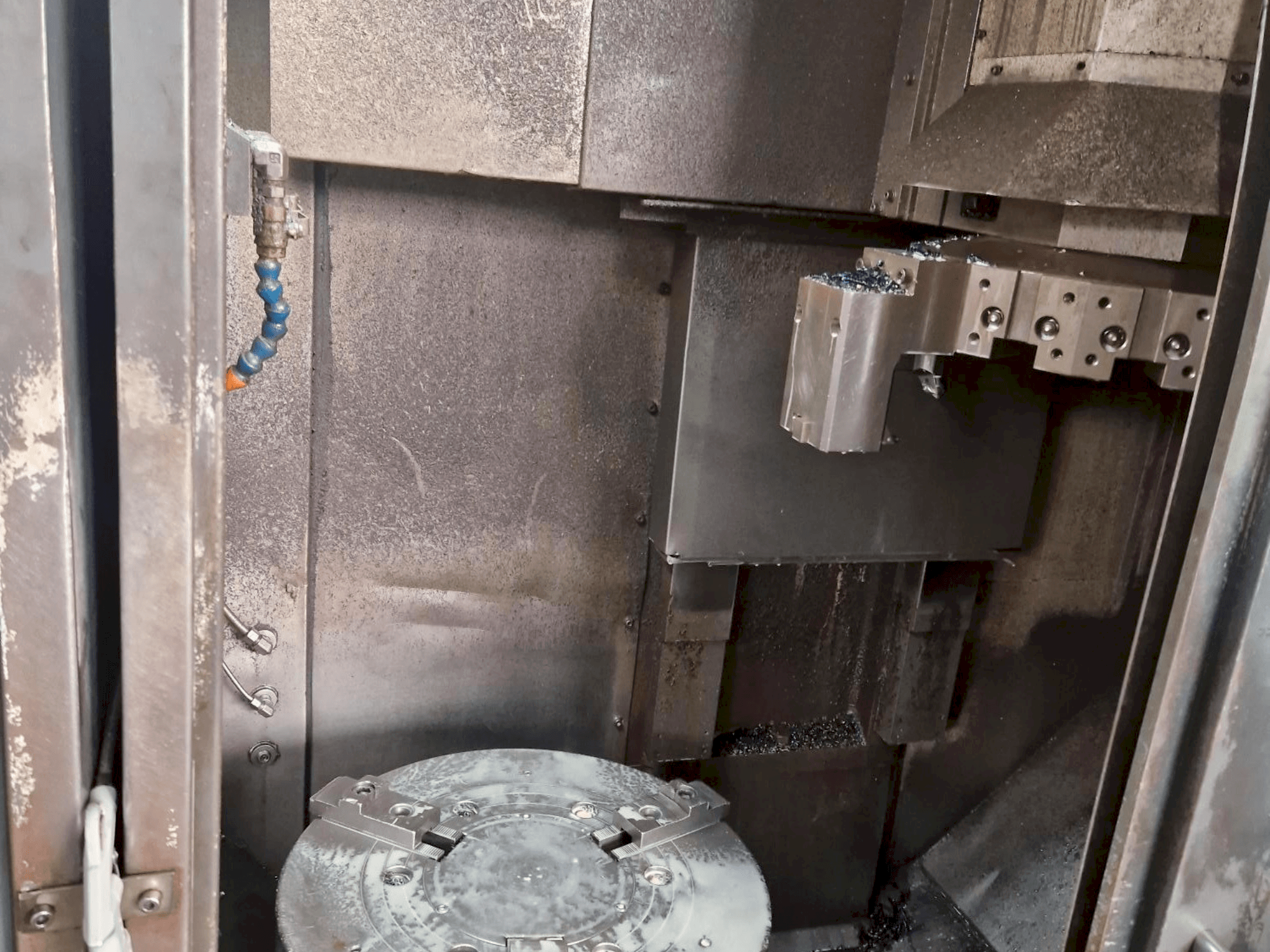

Turret

• Number of turrets: 1

Additional Equipment

• - Holders for External Turning: HO10-25RL (4 pcs)
• - Holders for Face Turning: HF10-25RL (2 pcs)
• - Holders for Internal Turning: HB10-50N (4 pcs), HB10-40N (2 pcs)
• - Reduction Sleeves: BS 40-10, -12, -16, -20, -25 (2 sets)

Machine Benefits

• Technical Machine Benefits:
  • - Drive: gear transmission, two stages
  • - Maximum swing diameter: 800 mm
  • - Maximum turning diameter: 740 mm
  • - Maximum turning length: 760 mm
  • - Number of positions: 12 x 2
  • - External turning: 25 x 25 mm
  • - Boring tools: Ø40/60 mm
  • - Tool change time: 0. 43 s

Extra information

• - Machine still under power
