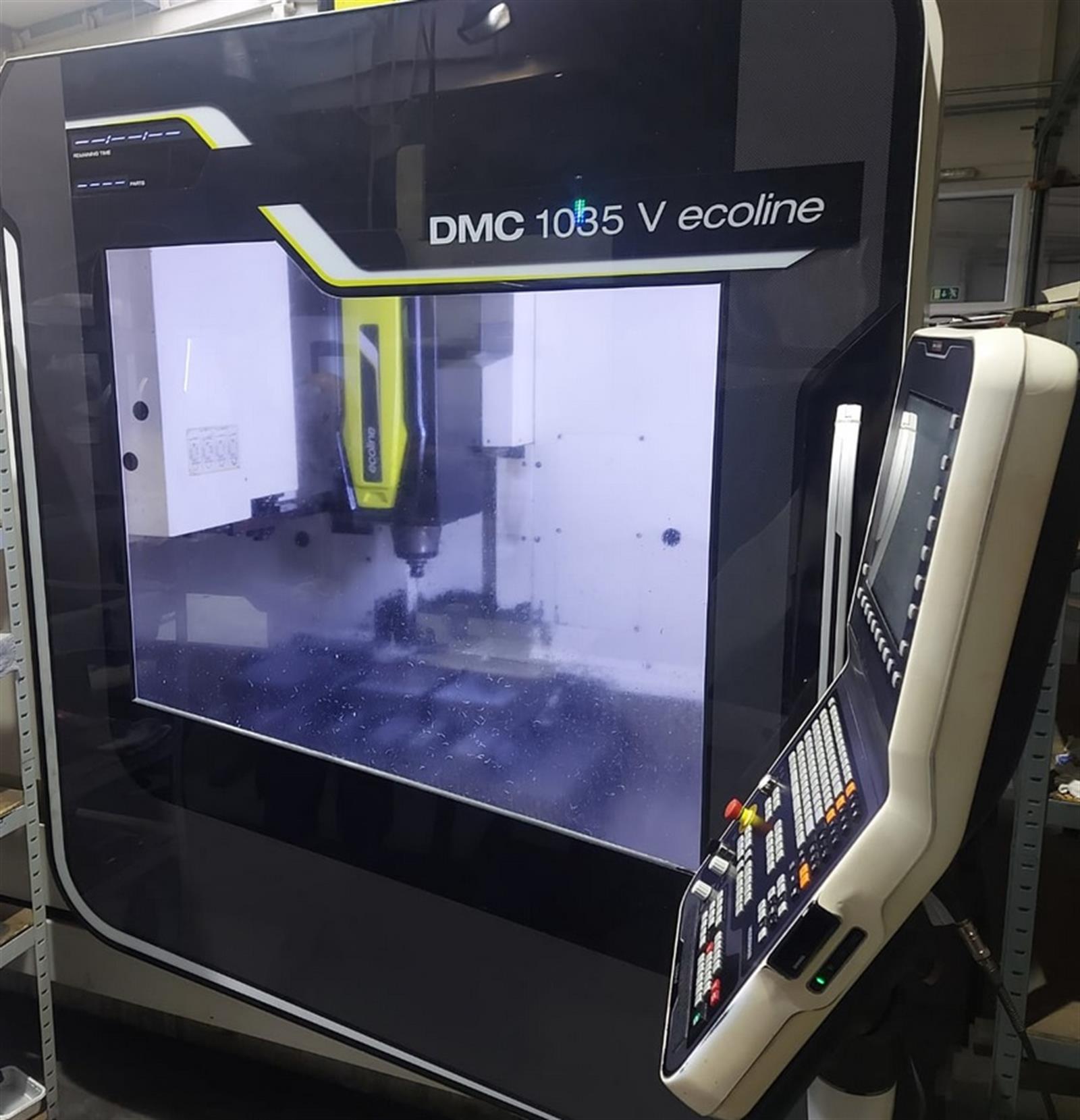

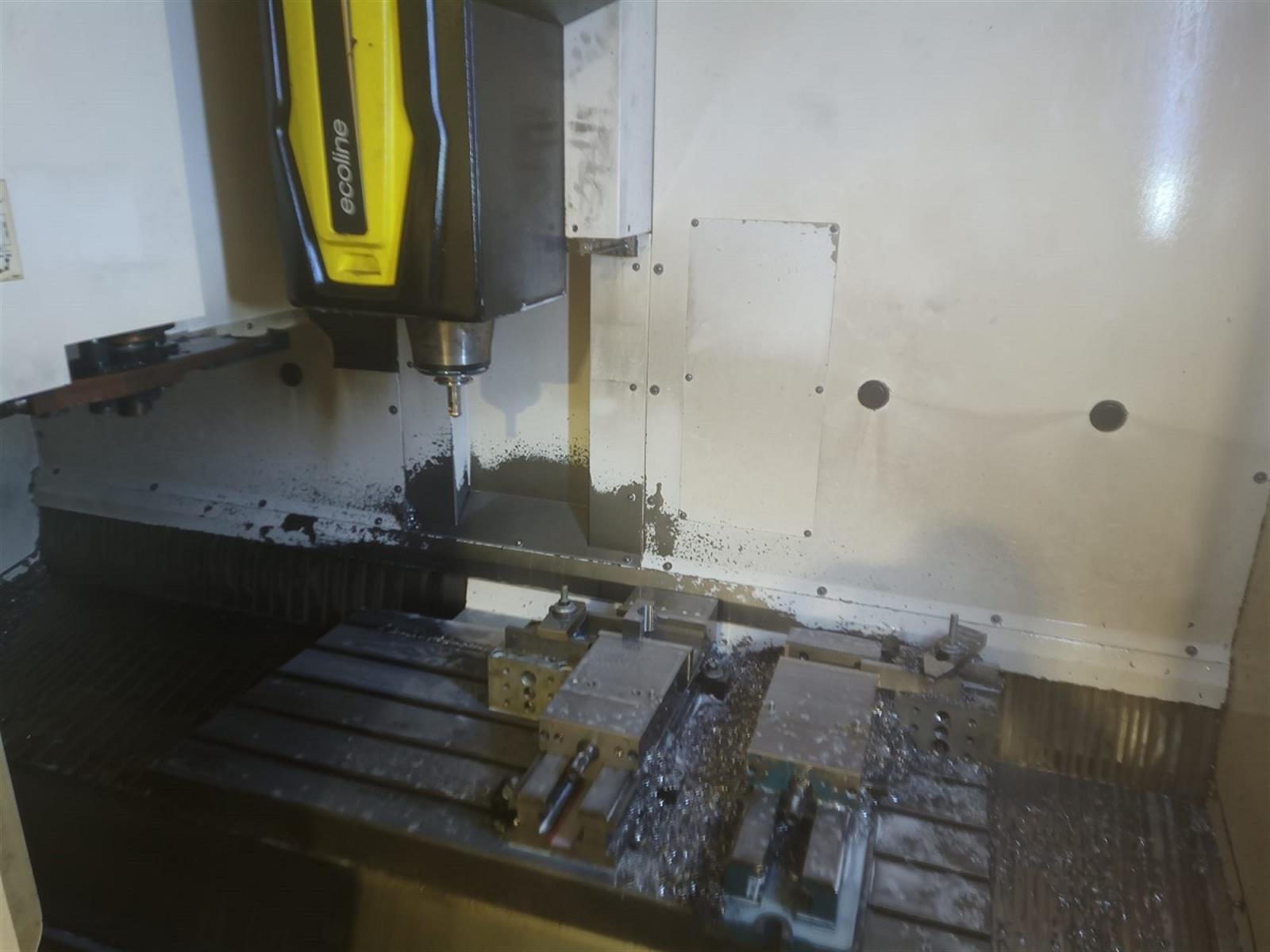

DMG DMC 1035 V Machining center - vertical (DMG DMC 1035 V Machining center - vertical)

The machine is in good technical condition. Heidenhain 620 control system.

documentation, renishaw workpiece and tool probes, chip conveyor, rulers on the machine.

Table clamping surface: 1200 x 560 mm
Travel X axis: 1035 mm
Travel Y axis: 560 mm
Travel Z axis: 510 mm
Max. workpiece weight 1000 kg
Spindle speed: 12000 / min.
Number of driven axes: 3
Machine dimensions LxWxH: 2820x3210x2700 mm
Machine weight: 5500 kg

Axis X	1035 mm
Axis Y	560 mm
Axis Z	510 mm
Rotary table (4th axis)	no

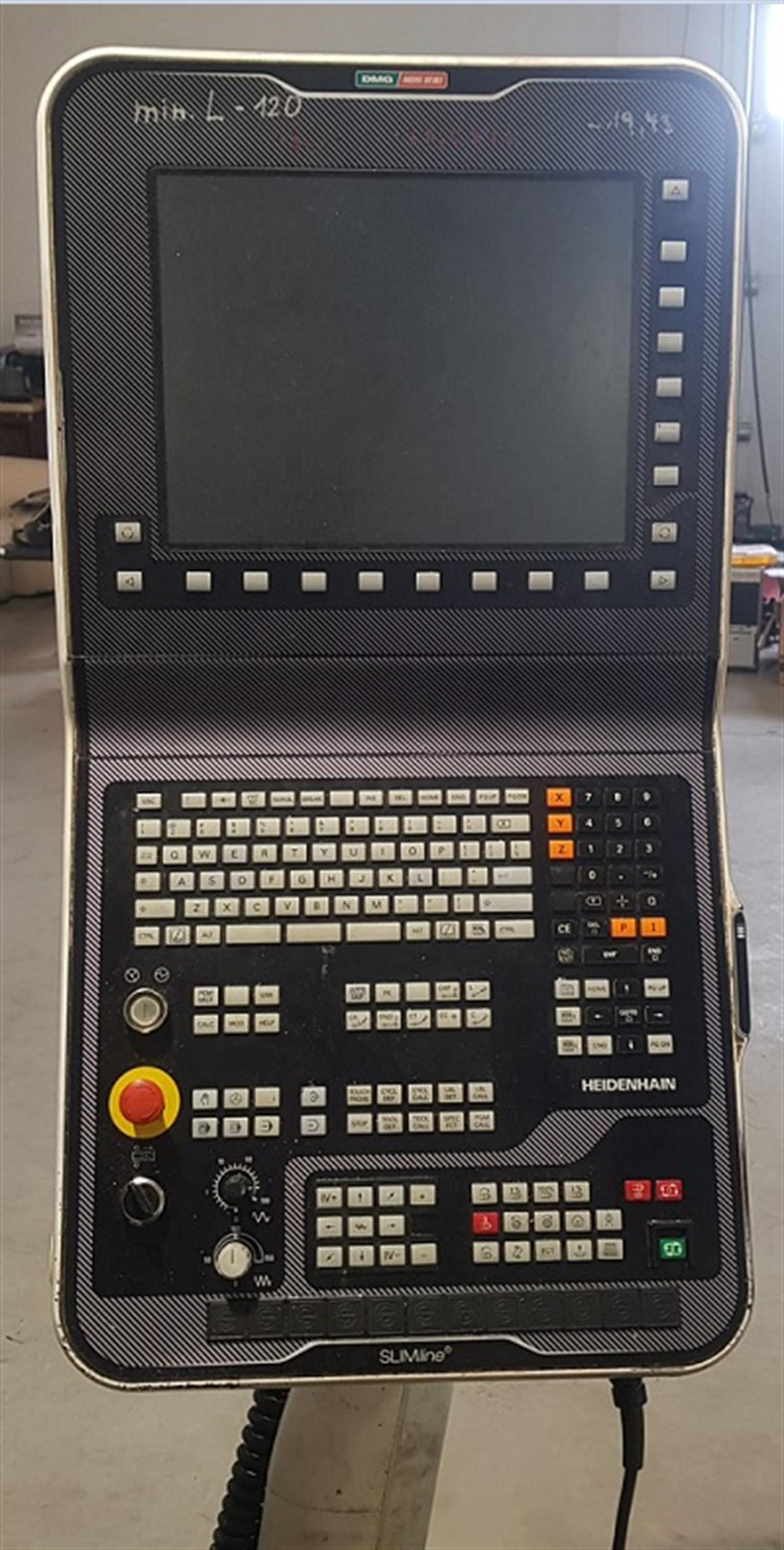

Type of CNC	Heidenhain 620
Table length	1200 mm
Table width	560 mm
Max. part weight	1000 kg
Spindle taper
Max. spindle speed	12000 rpm
-------------------
Length x width x height	2820.0 × 3210.0 × 2700.0
Weight	5500 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	visible
