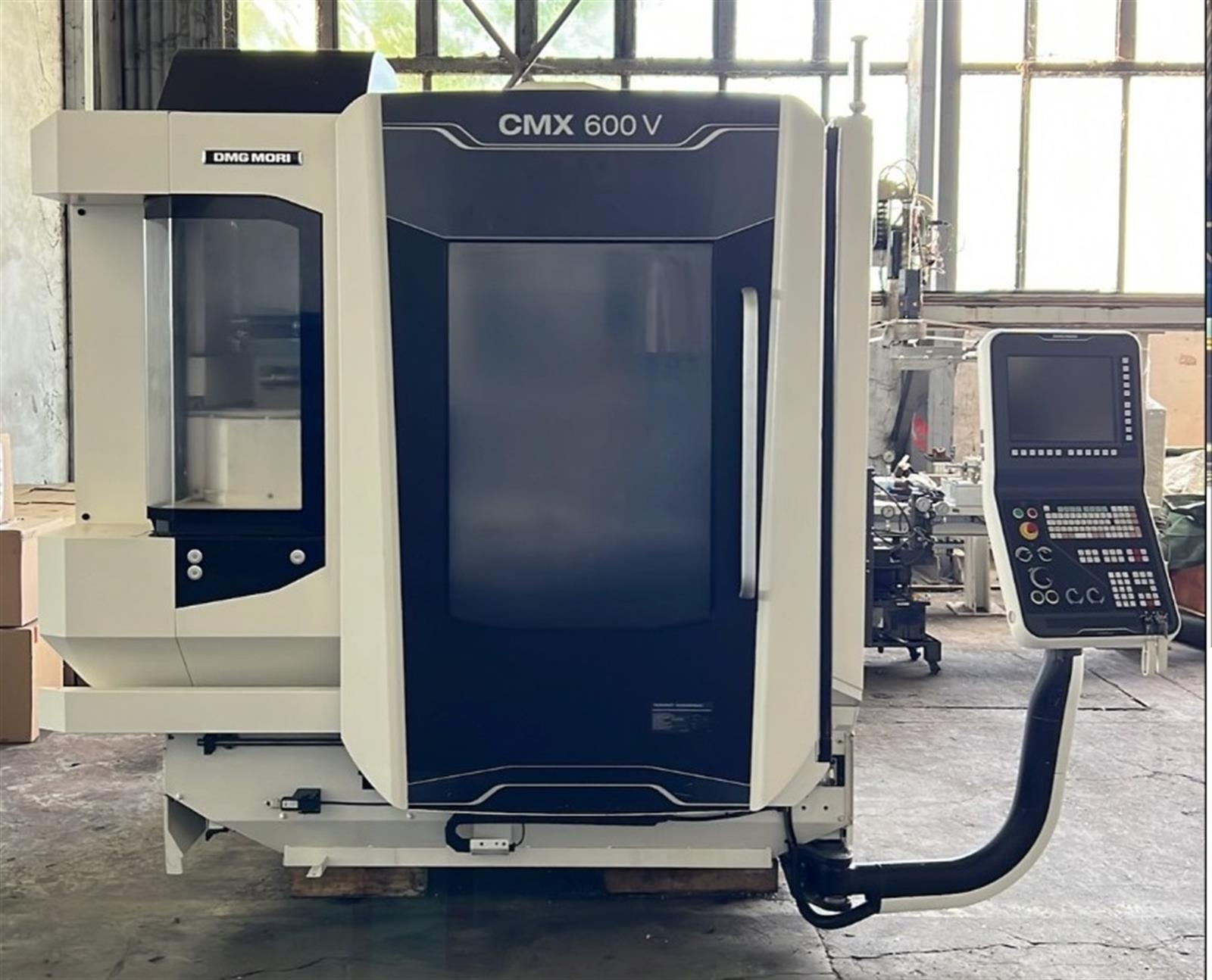

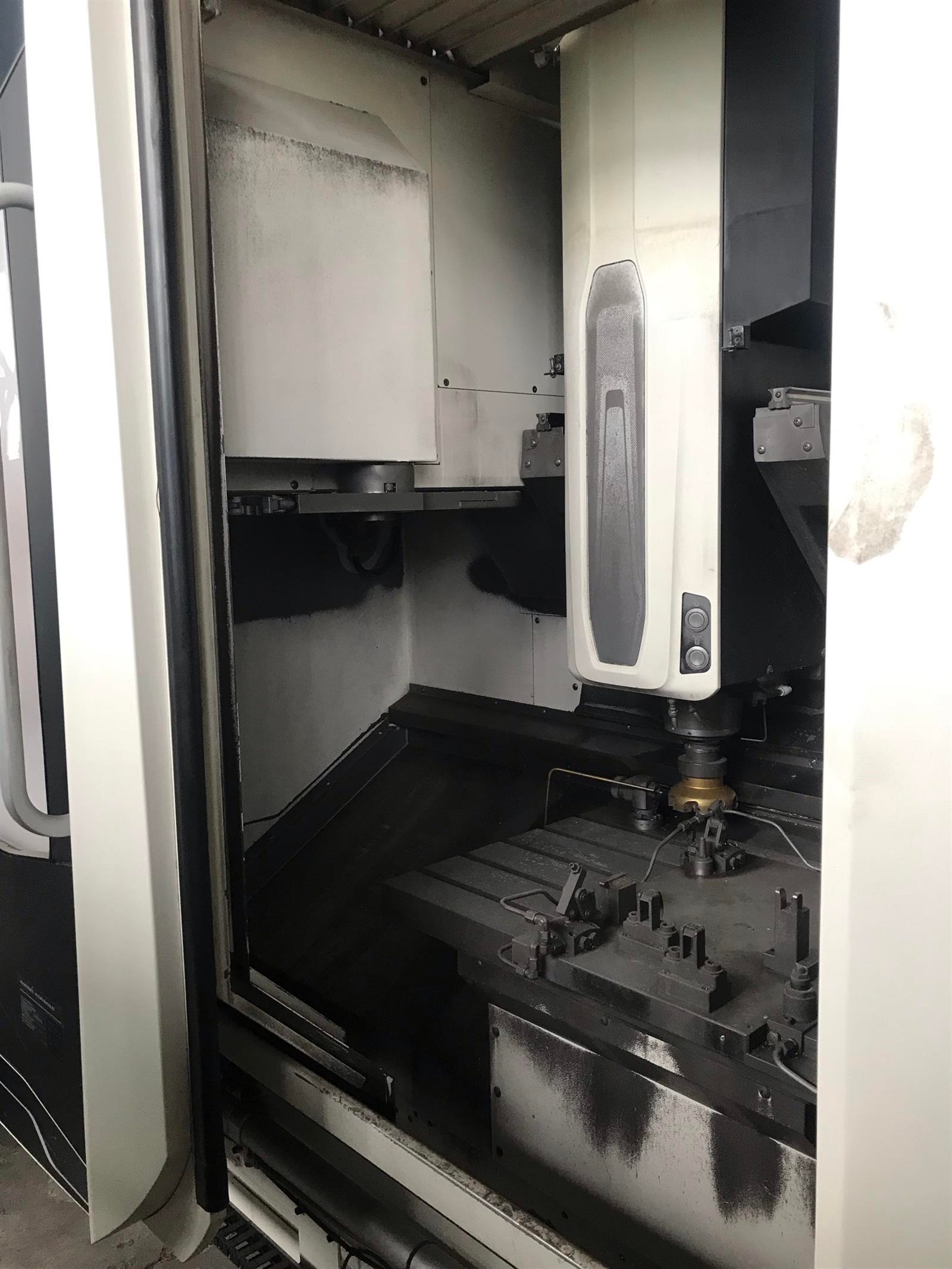

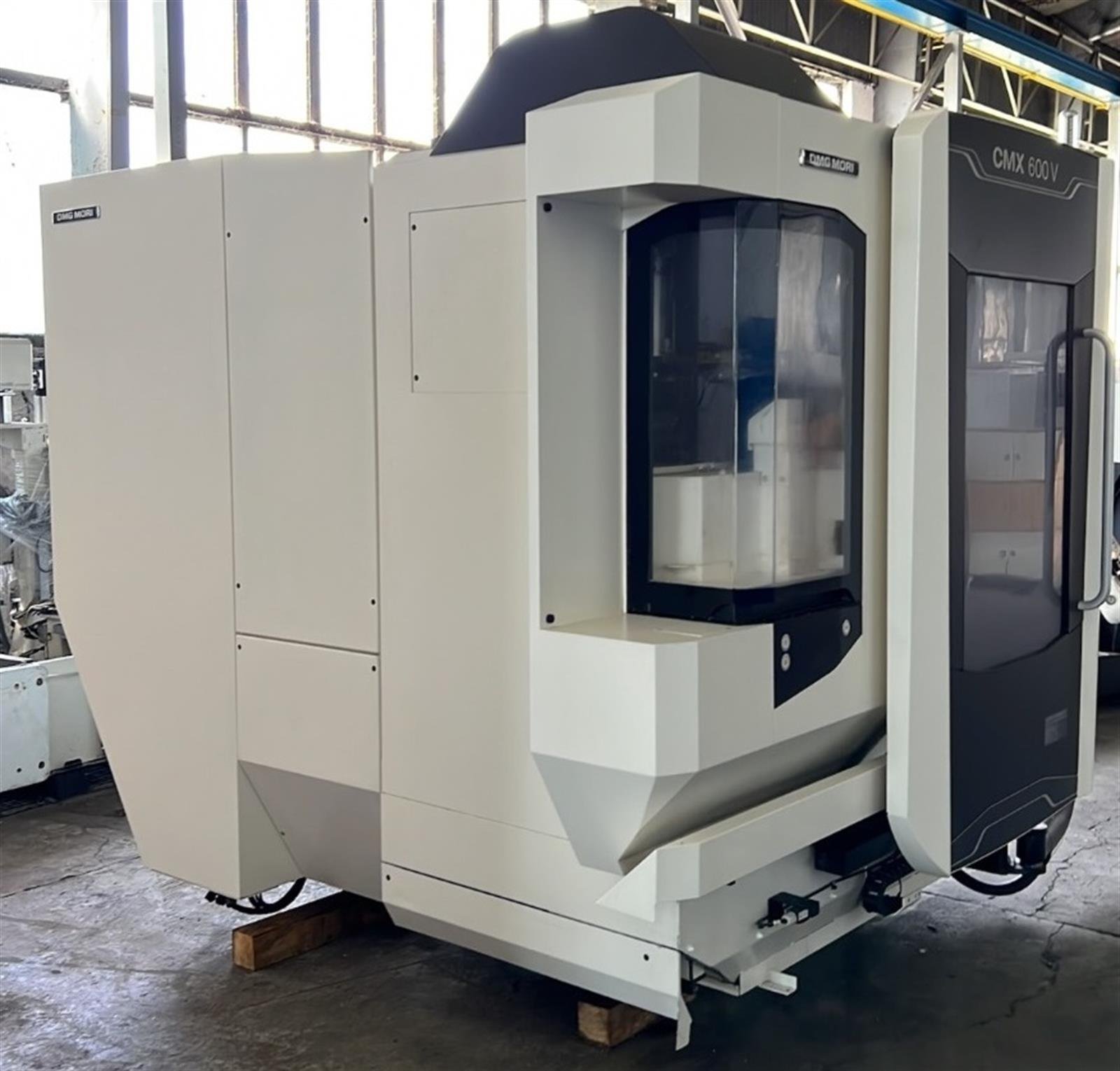

DMG CMX 600V Machining center - vertical (DMG CMX 600V Machining center - vertical)

Control system: DMG MORI SLIMline® Multi-Touch control (19" / HEIDENHAIN TNC 620)

Travels: X / Y / Z – 600 / 560 / 510 mm
Table size: 900 x 560 mm
Linear axis feed: 30m/min
Speed range: 20 – 12,000 rpm
Main drive: 13/9 kW (40/100% ED)
Clamping cone: SK 40 according to DIN 69871
Clamping pin: according to DIN 69872
Tool magazine: 30 places with double hook
Cooling: Switching between liquid-air, external, via M-function

Axis X	600 mm
Axis Y	560 mm
Axis Z	510 mm
Rotary table (4th axis)	no
Type of CNC
Table length	900 mm
Table width	560 mm
Spindle taper
Max. spindle speed	12000 rpm
-------------------
Weight	4700 kg
Worked hours
Hours under power
State	excellent
At local norms	yes
Status	visible
