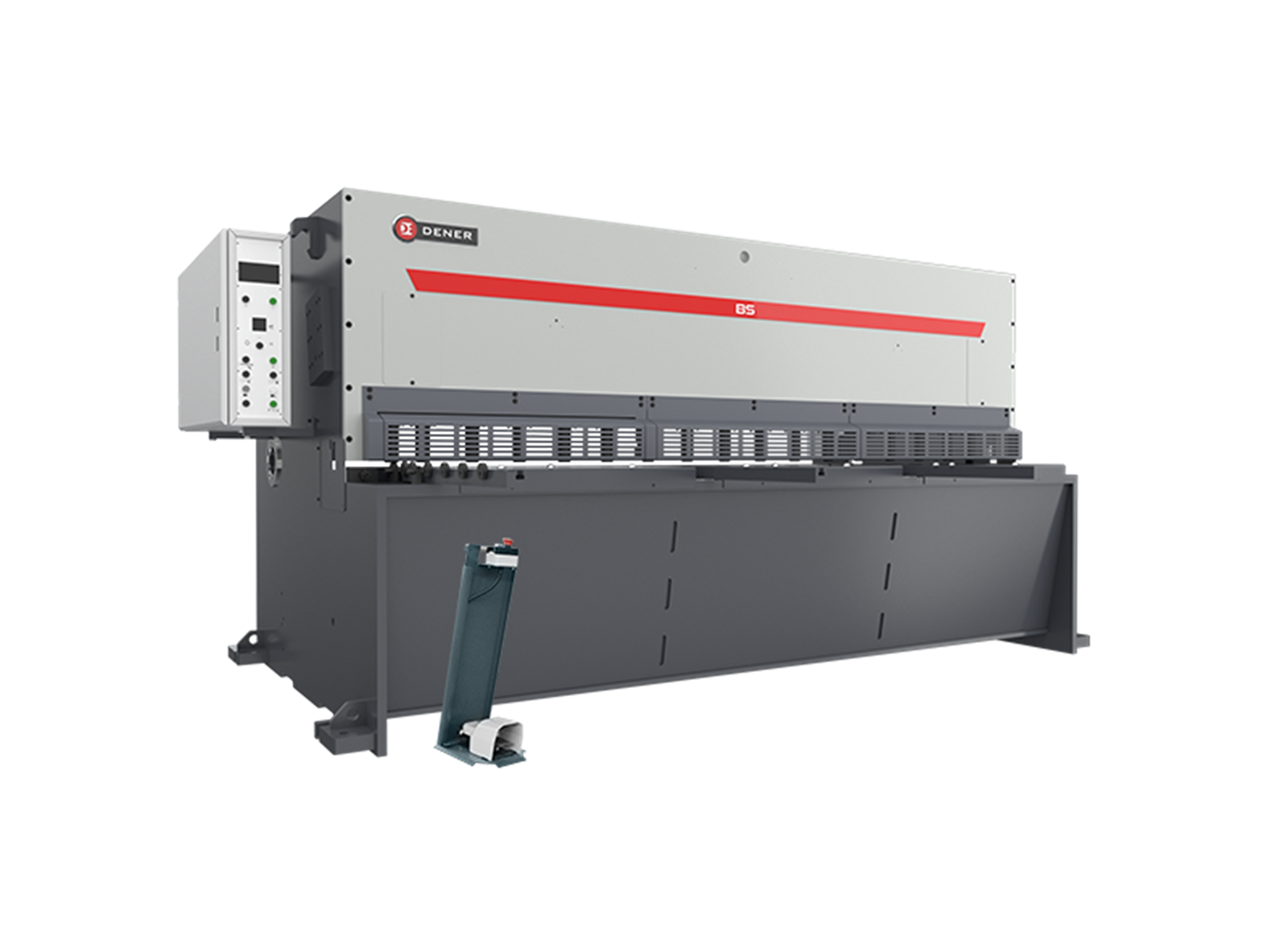

Dener BS 3100X6 mm Hydraulic Guillotine Shear with NC Control, Mot. Back. Roll - Stock (BS 3100X6 MM)

Easy, accurate, rock solid welded steel construction proven design that thousands of customers across the world have come to rely on. Dener Swing Beam Shears are starring form 6 mm up to 20 mm thickness and cutting lenght from 2 m up to 6 m as a standard and according to the special demanded higher capacity machines are available. Main features of the Swing Beam Shears are; NC controller for Back Gauge, single point manual blade gap adjustment, 1000 mm motorized ball screw back gauge, cutting length adjustment by timer, 1 m flip up front guarding, Sheet support arms and squaring support, sheet slider table and back slider

DENER BS 3100X6 MM. HYDRAULIC GULLOTINE SHEAR

HT 071NC CONTROL UNIT

MOTORIZED BACK GAUGE

DELIVERY FOM STOCK

The HT 071 is a very compact, simply programmable single axis controller for swing beam shear. This unit has back gauge control, retract, and stroke counter and program memory up to 99 programs with 20 steps. Back gauge axis control is two speed Ac control. Referencing is not necessary controller always remember the last position. The back gauge can be moved manually by selecting push buttons in 2 different speeds. Total working hours and total cut counter is also standard with controller.

HT 071 FEATURING

LCD display
Back gauge control
Actual position visualization
Stock counter
Program memory up to 99 parts
Programmable up to 20 steps
User-friendly one-touch programming
Retract Semi automatic and automatic funtion.
Stroke limitation

Cuttng Length	(mm)	3120
Cuttng Capacty (Mld Steel)	(mm)	6
Cuttng Angle	degree	1,39
Hold Down Pad Number	pcs	15
Man Motor	kW	11
Cuttng Pcs	cuts/mn	18
Ol Tank	lt	200
Length	L (mm)	3840
Throat Depth	E (mm)	150
Wdth Wthout Rule	E (mm)	2050
Wdth	W (mm)	2745
Heght	H (mm)	1700
Weght	Kg	6500
