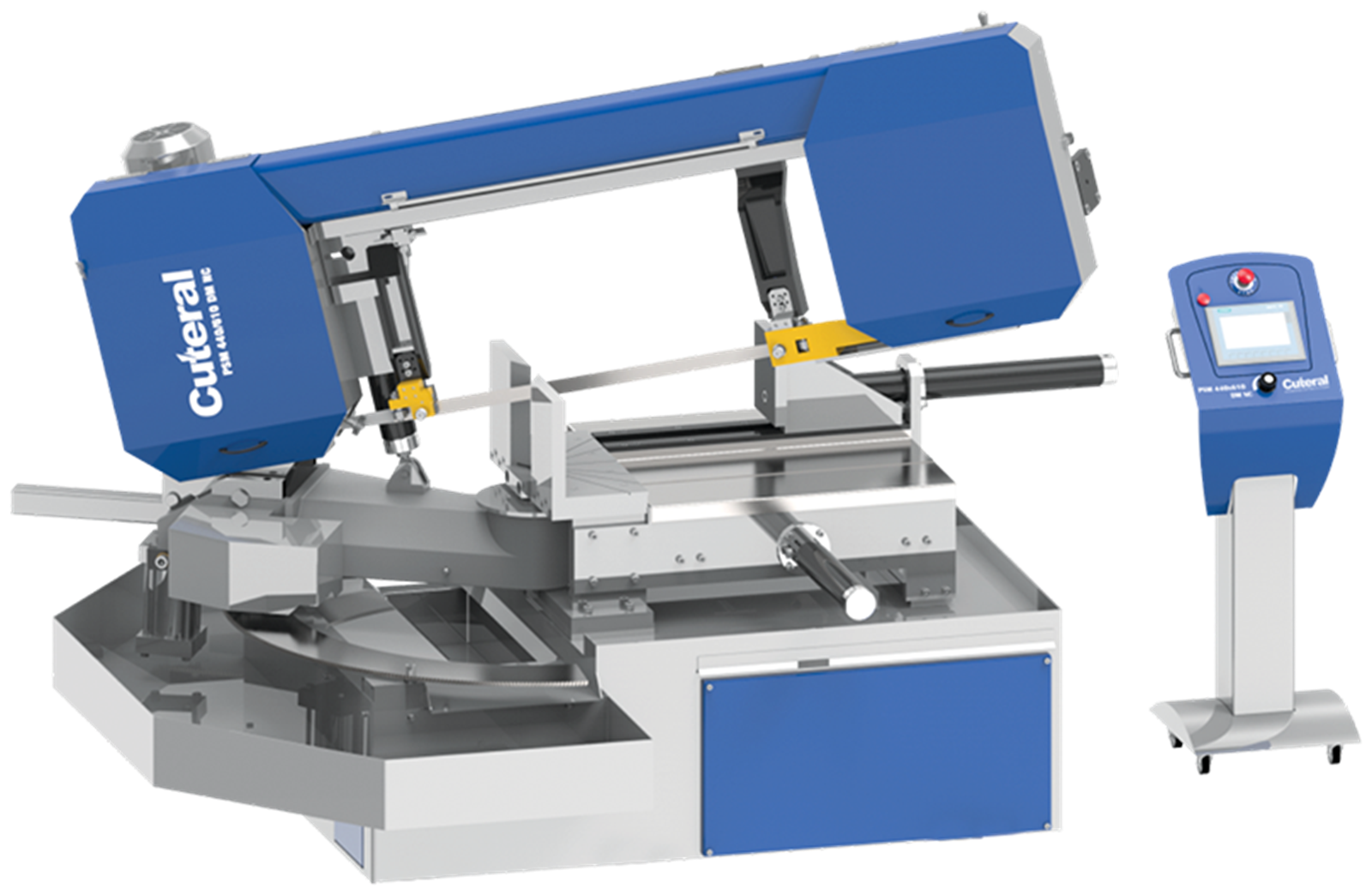

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine

Cuteral PSM 440 - 610 DM NC - Semi Automatic Double Miter Bandsaw Machine (Cuteral PSM 440 - 610 DM NC - Semi Automatic Doubl)

Brand : Cuteral

Stock Amount : 0

Delivery Time 45 Days After order

Shipment Place Turkiye

Payment Terms % 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Turkey

Min. Order Qty.1 Pcs.

Warranty1 year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Saws - Bandsaws

Semi Automatic NC Double Miter Bandsaw Machines

Clamping System
Movable Clamping System
Control Panel
Miter Cutting

A	1600 mm	62.99 inch
B	2850 mm	112.20 inch
C	1870 mm	73.22 inch
D	2000 mm	78.74 inch
E	860 mm	33.86 inch
HMAX	2535 mm	99.80 inch

Blade Dimension	34 x 1,1 x 5100 mm 1 1/4 x 0,042 x 200,7 inch
Blade Motor	4 kW -1500 d/dk 5.36 hp - 1500 rpm
Feeding Motor	Manual
Hydraulic Pump Motor	0.75 kW - 1400 d/dk 0.5 hp - 1400 rpm
Cooling Liquid Motor	0.12 kW - 3000d/dk 0.16 hp - 3000 rpm
Voltage	400 V
Maximum Power	4.87 kW 6.53 hp
Cutting Speed	15 m/dk - 49 ft/min 100 m/dk - 328 ft/min
Weight	1680 kg 3703 Ibs
Material Clamping System	Hydraulic
Blade Tensioning System	Hydramechanic

Vertical		Horizontal		60º	45º	30º	0º	30º	45º	60º
	90 º
Cutting Capacity		Cutting Capacity
			Round	250 mm 9.84 inch	400 mm 15.75 inch	440 mm 17.32 inch	440 mm 17.32 inch	440 mm 17.32 inch	400 mm 15.75 inch	260 mm 10.24 inch
			Round	250 mm 9.84 inch	400 mm 15.75 inch	440 mm 17.32 inch	440 mm 17.32 inch	440 mm 17.32 inch	400 mm 15.75 inch	260 mm 10.24 inch

440 mm 17.32 inch		610 mm 24.02 inch	Square	250 x 250 mm 9.84 x 9.84 inch	380 x 380 mm 14.96 x 14.96 inch	440 x 440 mm 17.32 x 17.32 inch	440 x 440 mm 17.32 x 17.32 inch	440 x 440 mm 17.32 x 17.32 inch	380 x 400 mm 14.96 x 15.75 inch	260 x 260 mm 10.24 x 10.24 inch
440 mm 17.32 inch		610 mm 24.02 inch	Square	250 x 250 mm 9.84 x 9.84 inch	380 x 380 mm 14.96 x 14.96 inch	440 x 440 mm 17.32 x 17.32 inch	440 x 440 mm 17.32 x 17.32 inch	440 x 440 mm 17.32 x 17.32 inch	380 x 400 mm 14.96 x 15.75 inch	260 x 260 mm 10.24 x 10.24 inch

			Rectangular	440 x 240 mm 17.32 x 9.45 inch	380 x 400 mm 14.96 x 15.75 inch	440 x 500 mm 17.32 x 19.69 inch	440 x 610 mm 17.32 x 24.02 inch	440 x 500 mm 17.32 x 19.69 inch	380 x 400 mm 14.96 x 15.75 inch	440 x 240 mm 17.32 x 9.45 inch
			Rectangular	440 x 240 mm 17.32 x 9.45 inch	380 x 400 mm 14.96 x 15.75 inch	440 x 500 mm 17.32 x 19.69 inch	440 x 610 mm 17.32 x 24.02 inch	440 x 500 mm 17.32 x 19.69 inch	380 x 400 mm 14.96 x 15.75 inch	440 x 240 mm 17.32 x 9.45 inch
