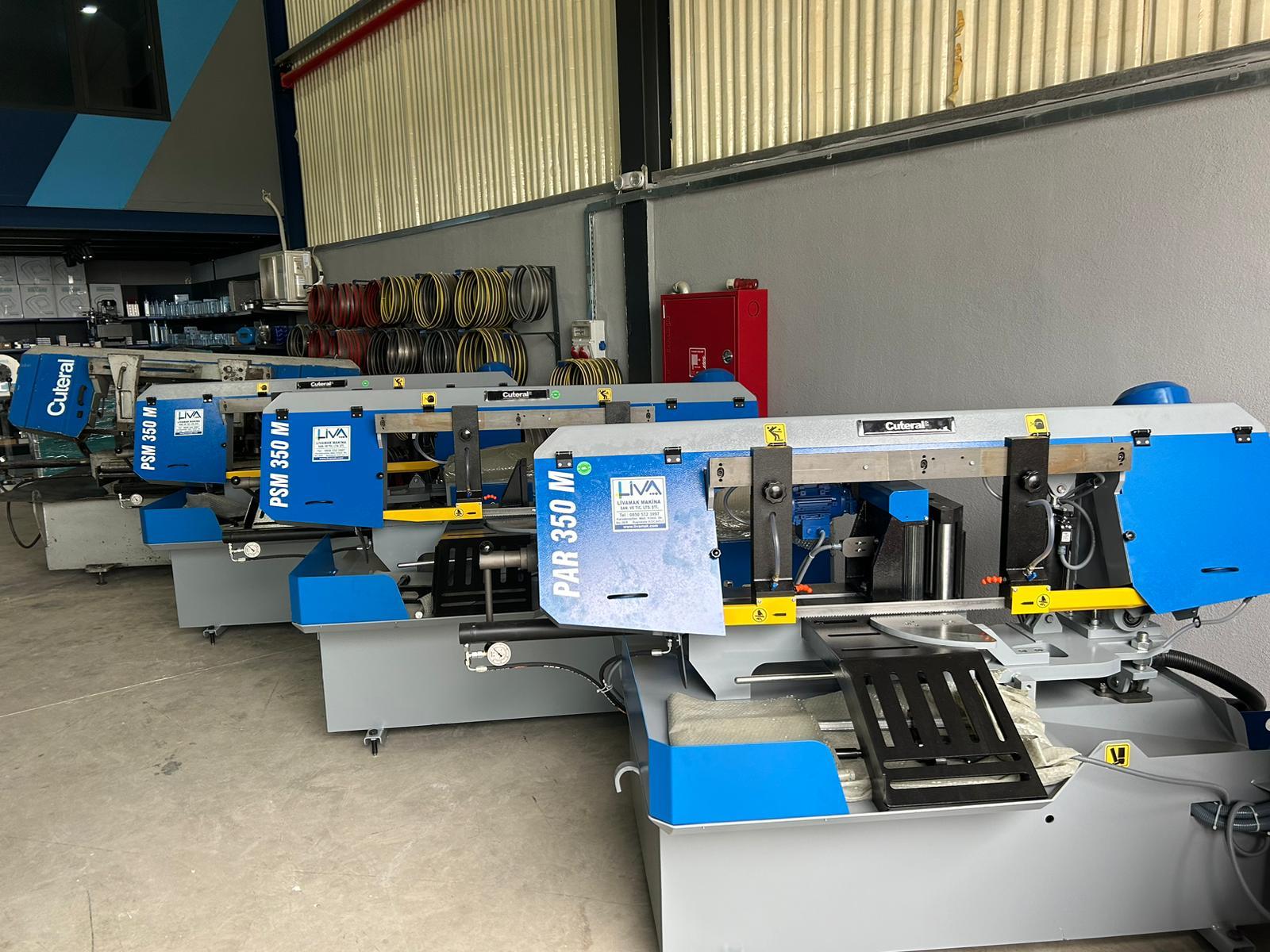

Cuteral PSM 350 M - Semi Automatic Miter Bandsaw Machine

Cuteral PSM 350 M - Semi Automatic Miter Bandsaw Machine

Cuteral PSM 350 M - Semi Automatic Miter Bandsaw Machine

Cuteral PSM 350 M - Semi Automatic Miter Bandsaw Machine - Stock (PSM 350 M)

Brand : Cuteral

Stock Amount : 1

Est. Delivery TimeREADY TO SHIP

Shipment Place Turkiye

Payment Terms% 100 T/T On Order Confirmation

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

CONDITIONNEW

NOTEPLS. CHECK CURRENT AVAILABILTY

: 10.000 EURO

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Shears

Saws - Bandsaws

Material Clamping System
Blade Tensioning
Control Panel
Miter Cutting

A	1360 mm	53.54 inch
B	2600 mm	102.36 inch
C	1480 mm	58.27 inch
D	1500 mm	59.06 inch
E	780 mm	30.71 inch
F	1355 mm	53.35 inch
HMAX	2080 mm	81.89 inch

Blade Dimension	34 x 1.1 x 4570 mm 1 1/4 x 0.042 x 180 inch
Blade Motor	4 kW - 1500d/dk 5.36 hp - 1500 rpm
Feeding Motor	Manual
Hydraulic Pump Motor	0.75 kW - 1400 d/dk 1 hp - 1400 rpm
Cooling Liquid Motor	0.12 kW - 3000d/dk 0.16 hp - 3000 rpm
Voltage	400 V
Maximum Power	4.87 kW 6.5 hp
Cutting Speed	15 m/dk - 49 ft/min 100 m/dk - 328 ft/min
Weight	1140 kg 2513 Ibs
Material Clamping System	Hydraulic
Blade Tensioning System	Hydramechanic

Vertical		Horizontal		0º	30º	45º
	90 º
Cutting Capacity		Cutting Capacity
			Round	350 mm 13.78 inch	350 mm 13.78 inch	300 mm 11.81 inch
			Round	350 mm 13.78 inch	350 mm 13.78 inch	300 mm 11.81 inch

350 mm 13.78 inch		460 mm 18.11 inch	Square	350 x 350 mm 13.78 x 13.78 inch	350 x 350 mm 13.78 x 13.78 inch	250 x 250 mm 9.84 x 9.84 inch
350 mm 13.78 inch		460 mm 18.11 inch	Square	350 x 350 mm 13.78 x 13.78 inch	350 x 350 mm 13.78 x 13.78 inch	250 x 250 mm 9.84 x 9.84 inch

			Rectangular	350 x 460 mm 13.78 x 18.11 inch	300 x 350 mm 11.81 x 13.78 inch	250 x 300 mm 9.84 x 11.81 inch
			Rectangular	350 x 460 mm 13.78 x 18.11 inch	300 x 350 mm 11.81 x 13.78 inch	250 x 300 mm 9.84 x 11.81 inch
