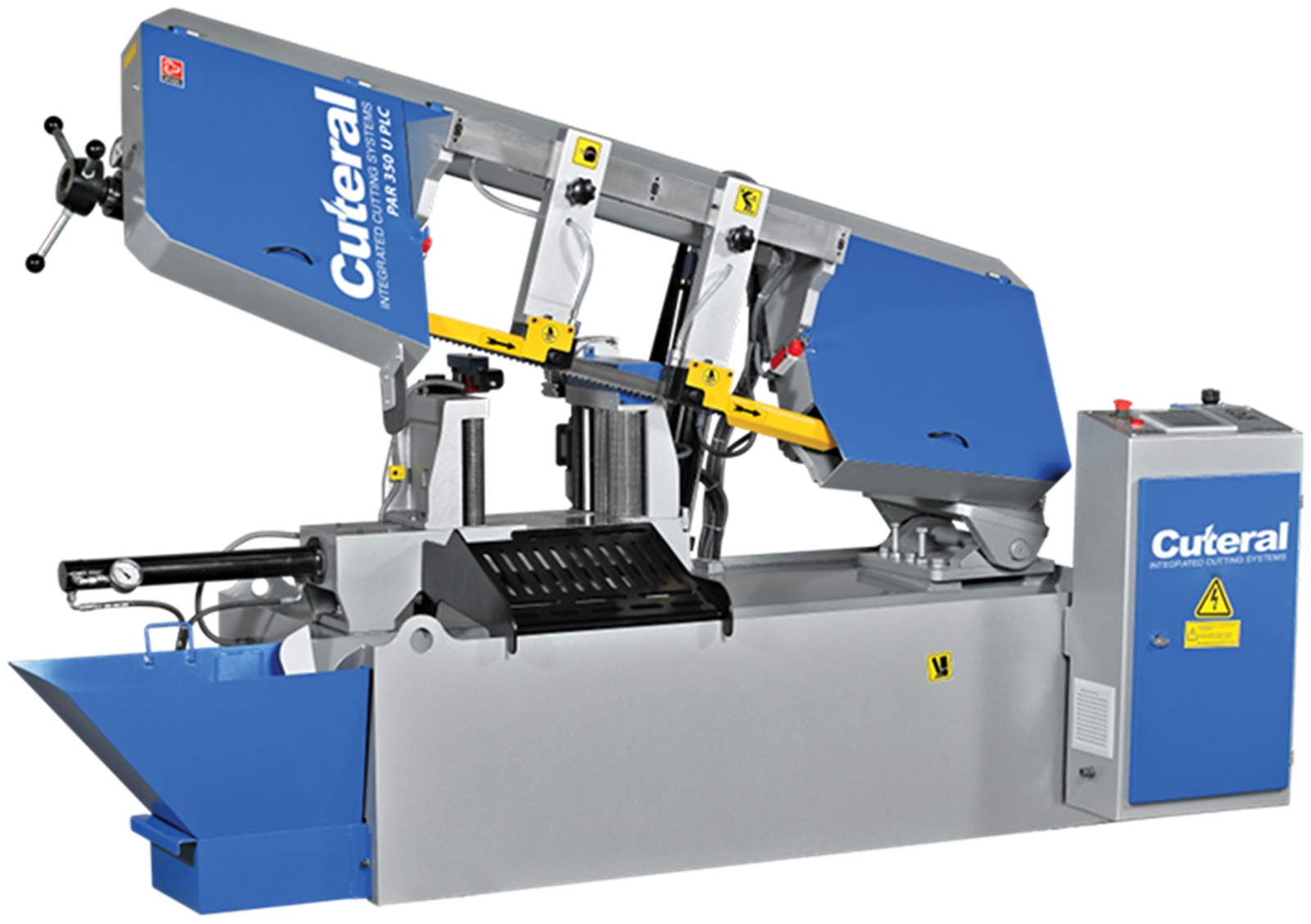

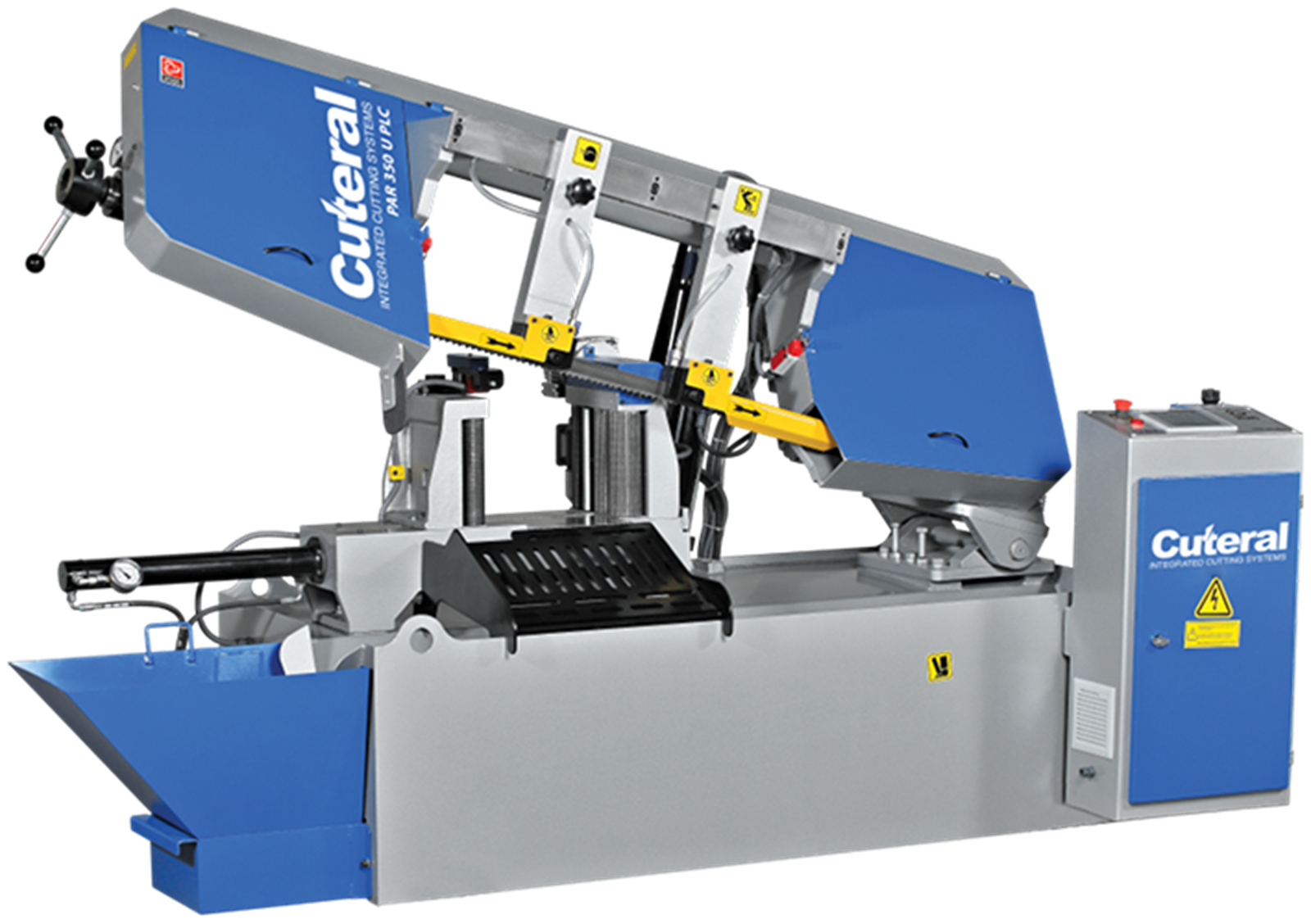

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine

Cuteral PAR 350 U PLC - Full Automatic PLC Control Bandsaw Machine (Cuteral PAR 350 U PLC - Full Automatic PLC Control)

Brand : Cuteral

Stock Amount : 0

Delivery Time 45 Days After order

Shipment Place Turkiye

Payment Terms % 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Turkey

Min. Order Qty.1 Pcs.

Warranty1 year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Saws - Bandsaws

Fully Automatical Horizontal Bandsaws

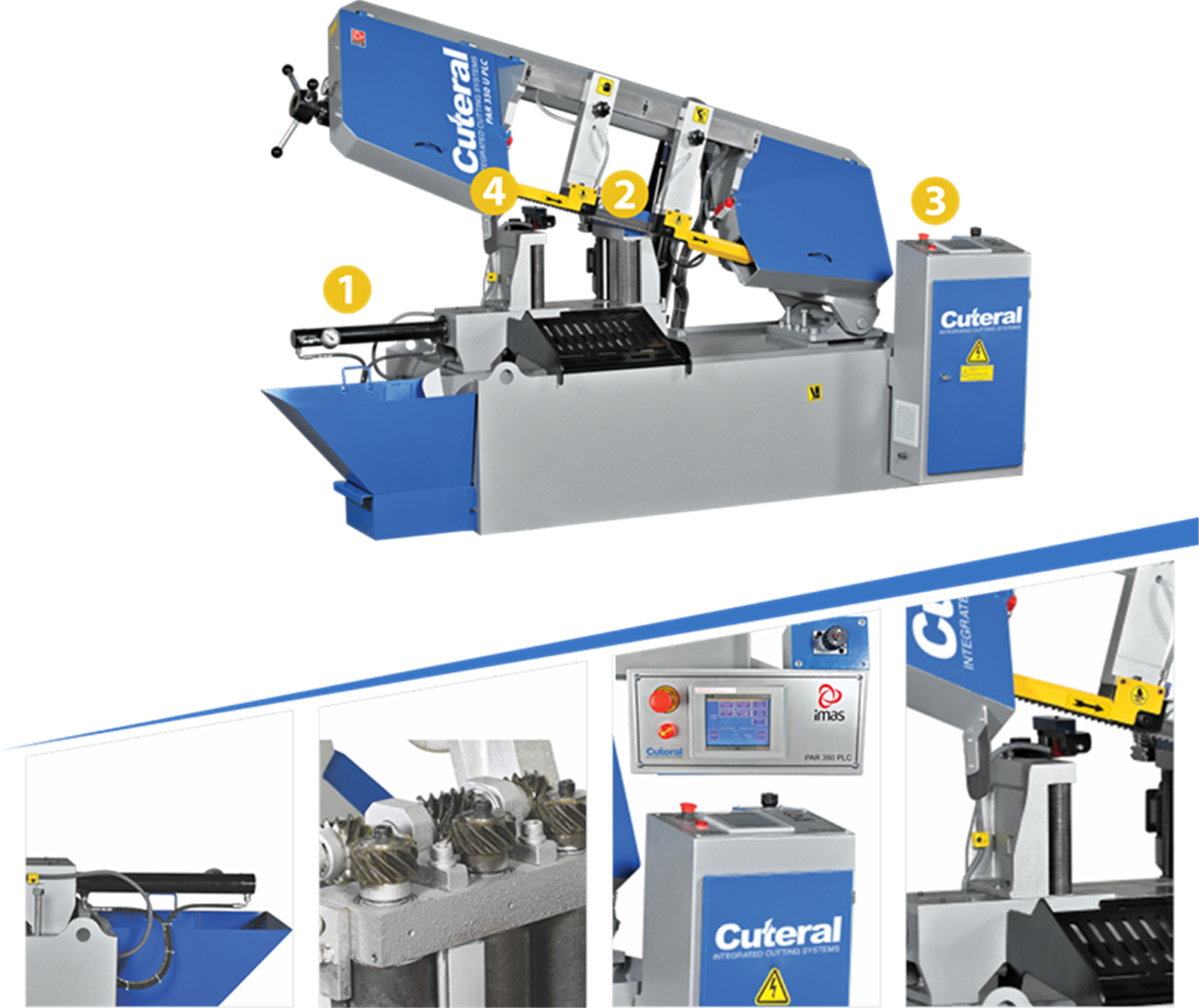

Clamping System
Material Feeding System
Control Panel
Accurate Cutting

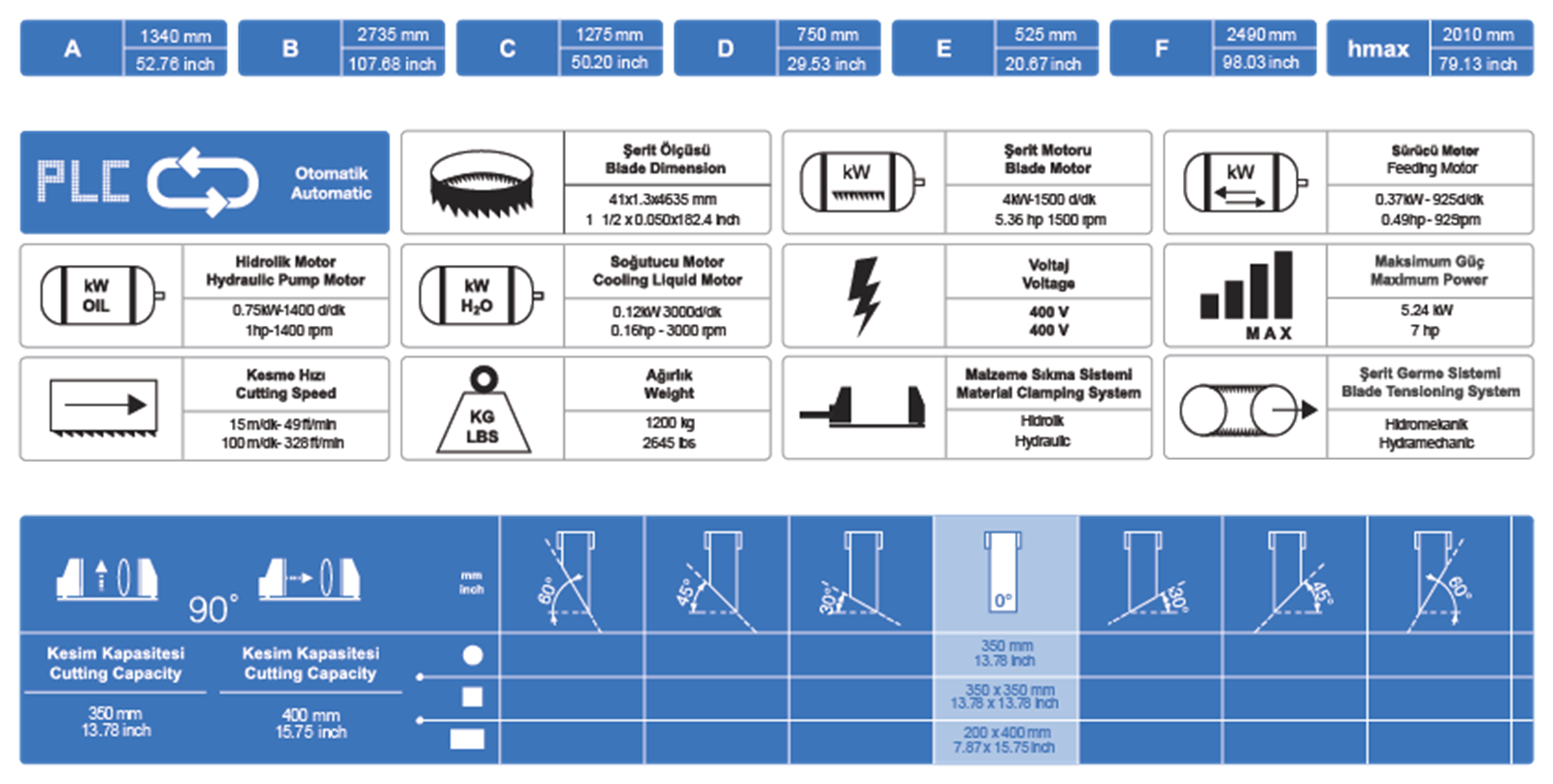

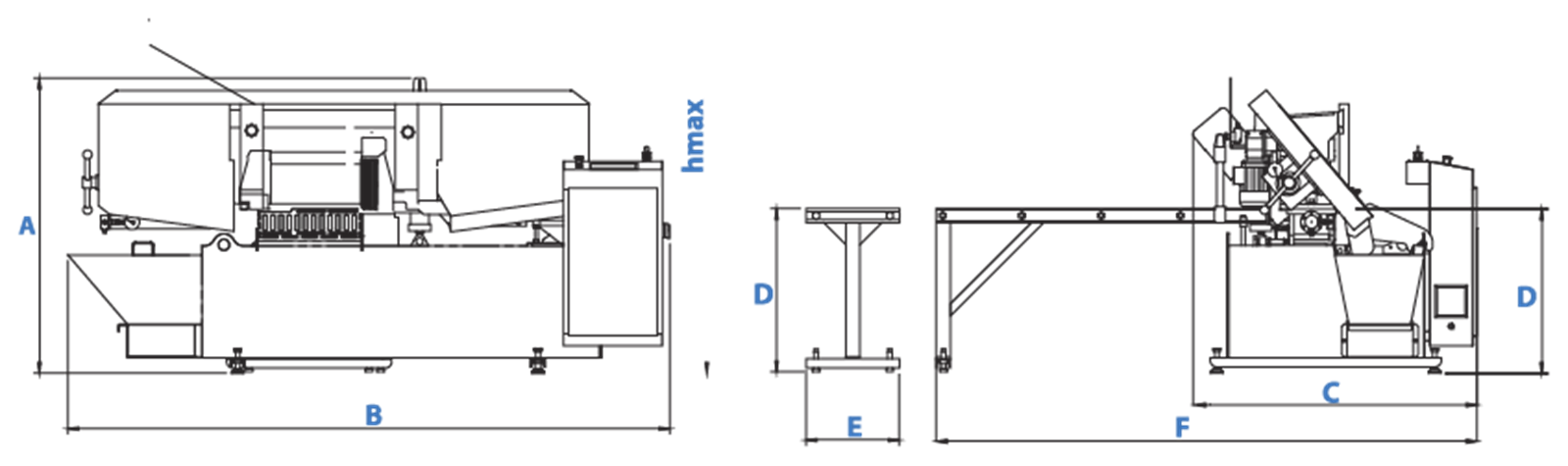

A	1340 mm	52.76 inch
B	2735 mm	107.68 inch
C	1275 mm	50.20 inch
D	750 mm	29.53 inch
E	525 mm	20.67 inch
F	2490 mm	98.03 inch
HMAX	2010 mm	79.13 inch

Blade Dimension	41 x 1.3 x 4635 mm 1 1/2 x 0.050 x 182.4 inch
Blade Motor	4 kW - 1500 d/dk 5.36 hp - 1500 rpm
Feeding Motor	0.37 kW - 1000 d/dk 0.49 hp - 1000 rpm
Hydraulic Pump Motor	0.75 kW - 1400 d/dk 1 hp - 1400 rpm
Cooling Liquid Motor	0.12 kW - 3000 d/dk 0.16 hp - 3000 rpm
Voltage	400 V
Maximum Power	5.24 kW 7 hp
Cutting Speed	15 m/dk - 49 ft/min 100 m/dk - 328 ft/min
Weight	1200 kg 2645 Ibs
Material Clamping System	Hydraulic
Blade Tensioning System	Hydramechanic

Vertical		Horizontal		0º
	90 º
Cutting Capacity		Cutting Capacity
			Round	350 mm 13.78 inch
			Round	350 mm 13.78 inch

350 mm 13.78 inch		400 mm 15.75 inch	Square	350 x 350 mm 13.78 x 13.78 inch
350 mm 13.78 inch		400 mm 15.75 inch	Square	350 x 350 mm 13.78 x 13.78 inch

			Rectangular	200 x 400 mm 7.87 x 15.75 inch
			Rectangular	200 x 400 mm 7.87 x 15.75 inch
