Peculiarities

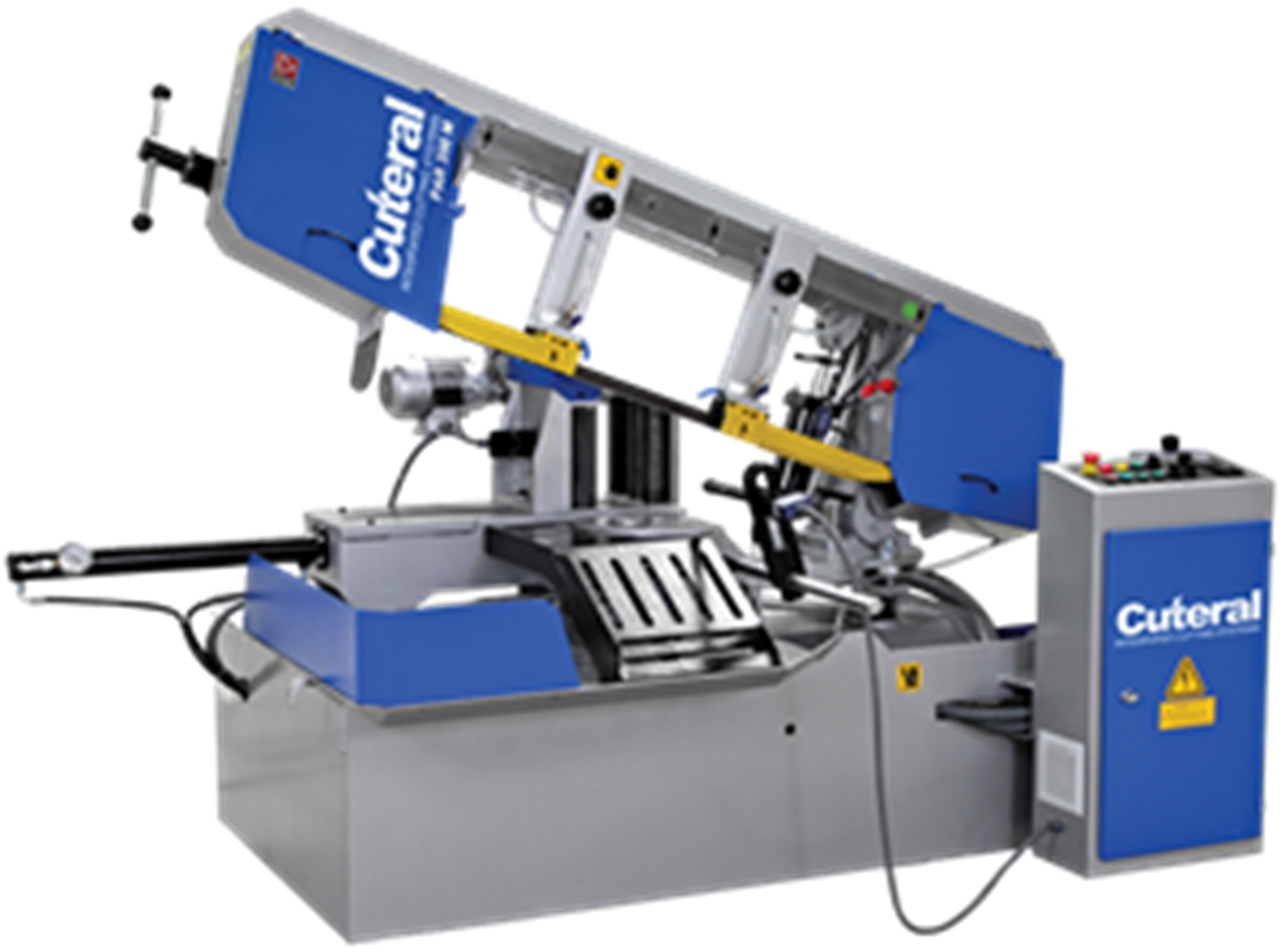

Automatic band saw PAR 300 M with hydromechanical saw frame drive and hydraulic vice is designed for sawing solid workpieces and profiles;
The massive design allows sawing of solid materials without vibrations. The machine produces an automatic rise of the frame and an automatic stop of the machine after the cut;
Clamp pressure and top head are independently adjustable. The clamping of the workpiece is carried out using a hydraulic vice;
Equipped with a reliable electrical system. The basic package includes a 1500 mm roller table with an upper clamp;
The coolant system is mounted on the saw guides. The machine has a mobile coolant tank and a chip basket.
Recommendations for use
The machine is in demand at enterprises that manufacture various metal structures, as well as in repair shops.
ertical
Horizontal
0º
30º
45º
90 º
Cutting Capacity
Round
300 mm
220 mm
220x mm
340 mm
Square
220 x 220 mm
350 x 350 mm 13.78 x 13.78 inch
300 x 300 mm 11.81 x 11.81 inch
Rectangular
220 x 340 mm
250 x 400 mm 9.84 x 15.75 inch
290 x 180 mm 11.42 x 7.09 inc
