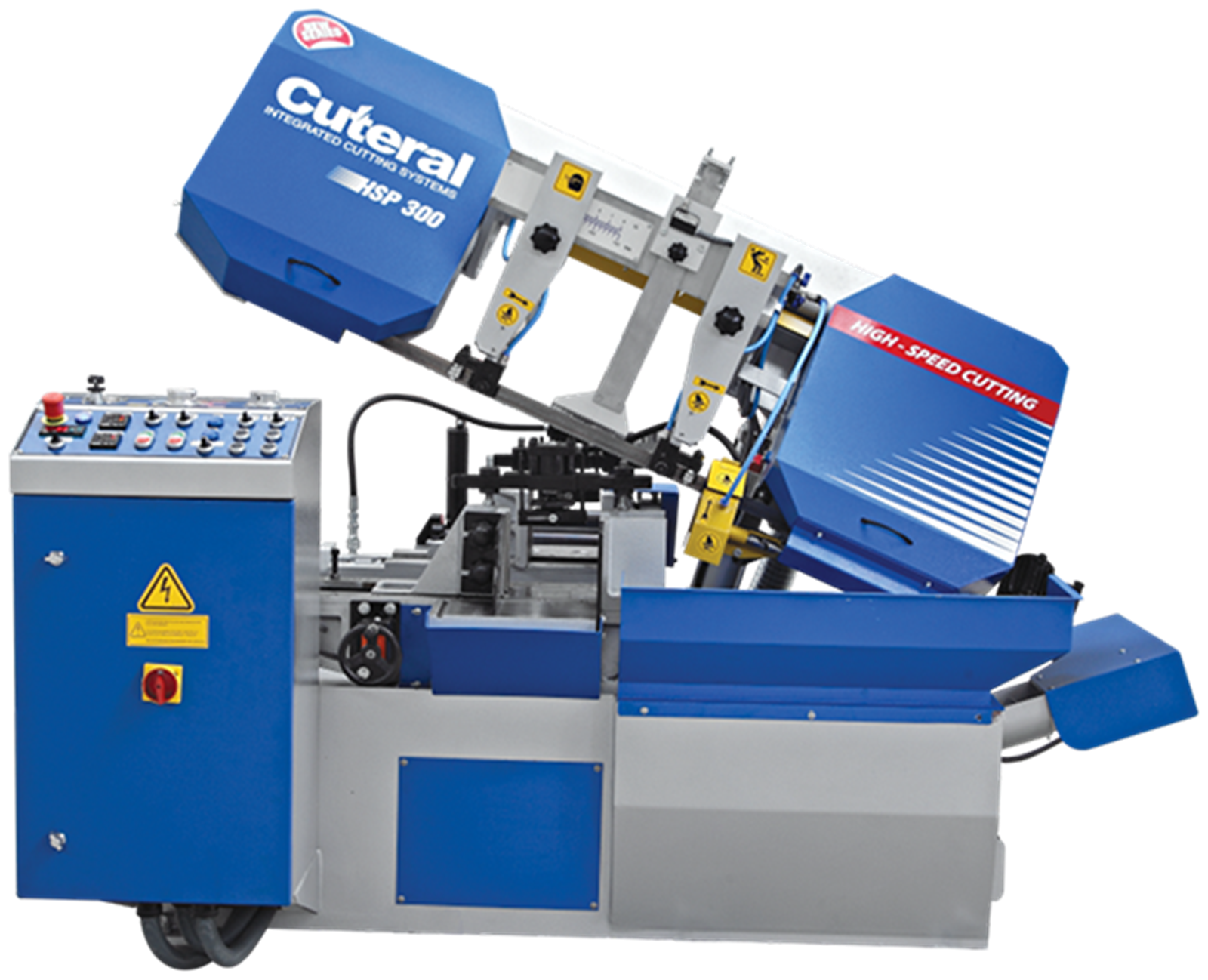

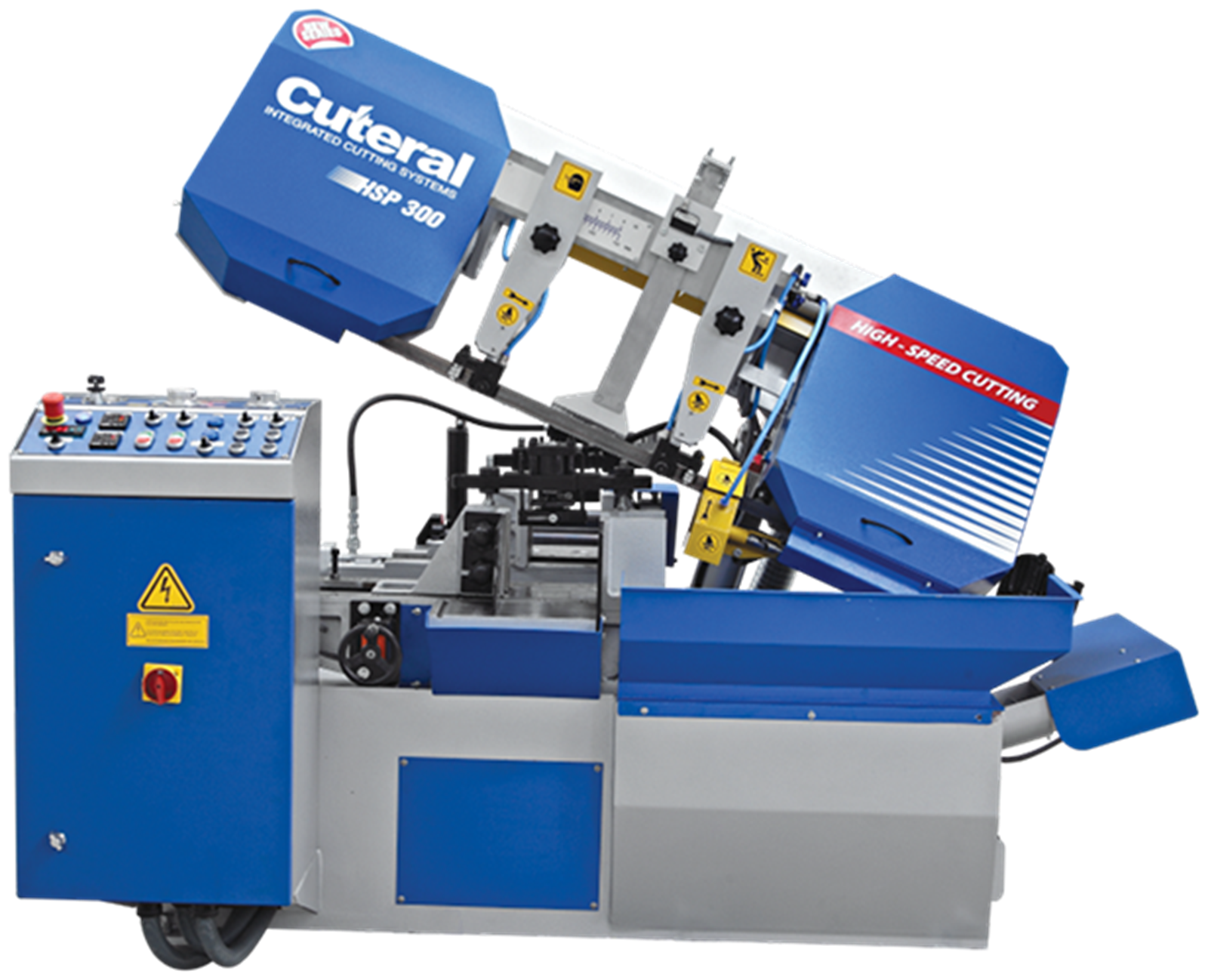

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine

Cuteral HSP 300 - Full Automatic High Speed Cutting Bandsaw Machine (Cuteral HSP 300 - Full Automatic High Speed Cuttin)

Brand : Cuteral

Stock Amount : 0

Delivery Time 45 Days After order

Shipment Place Turkiye

Payment Terms % 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Turkey

Min. Order Qty.1 Pcs.

Warranty1 year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Saws - Bandsaws

Fully Automatical Horizontal Bandsaws

Cutting Pressure
Bundle Cutting
Automatic Height Control
Blade Breakage Sensor

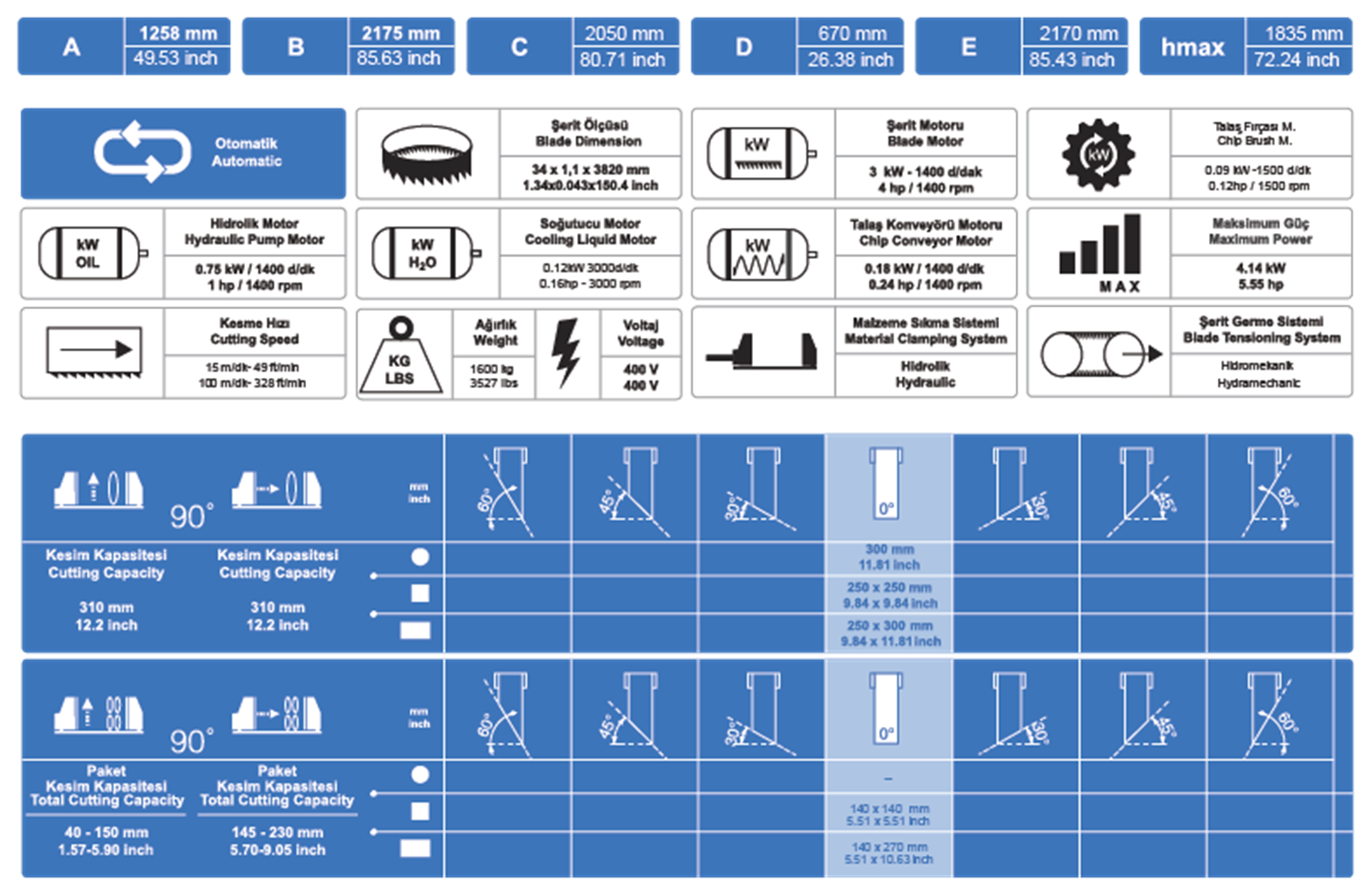

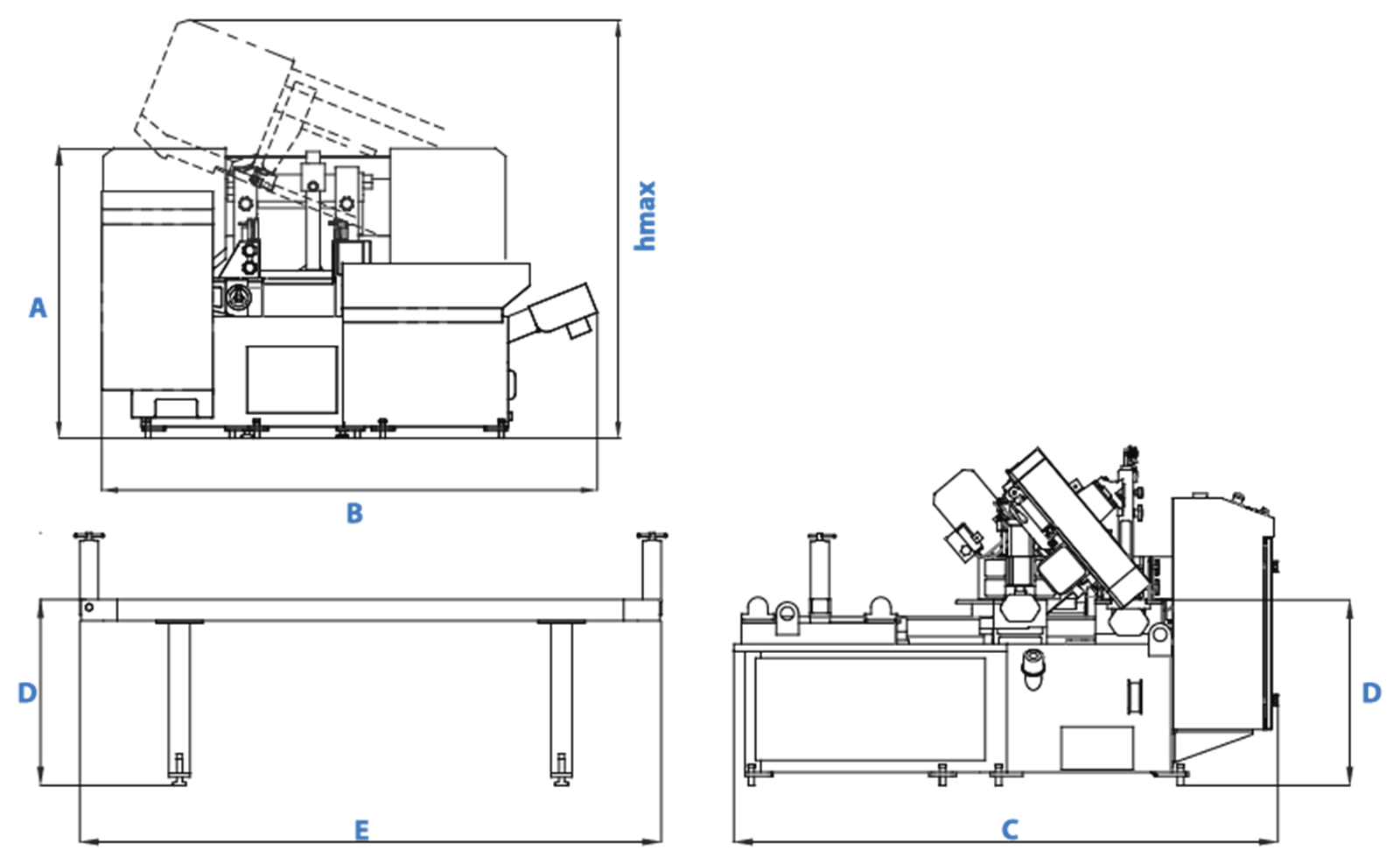

A	1258 mm	49.53 inch
B	2175 mm	85.63 inch
C	2050 mm	80.71 inch
D	670 mm	26.38 inch
E	2170 mm	85.43 inch
HMAX	1835 mm	72.24 inch

Blade Dimension	34 x 1.1 x 3820 mm 1.34 x 0.043 x 150.4 inch
Blade Motor	3 kW - 1400 d/dk 4 hp - 1400 rpm
Chip Brush M.	0.09 kW - 1500 d/dk 0.12hp / 1500 rpm
Hydraulic Pump Motor	0.75 kW - 1400 d/dk 1 hp - 1400 rpm
Cooling Liquid Motor	0.12 kW - 3000 d/dk 0.16 hp - 3000 rpm
Chip Conveyor Motor	0.18 kW - 1400 d/dk 0.24 hp - 1400 rpm
Maximum Power	4.14 Kw 5.55 hp
Cutting Speed	15 m/dk - 49 ft/min 100 m/dk - 328 ft/min
Weight	1578 kg 3478 Ibs
Voltage	400 V
Material Clamping System	Hydraulic
Blade Tensioning System	Hydraulic

Vertical		Horizontal		0º
	90 º
Cutting Capacity		Cutting Capacity
			Round	300 mm 11.81 inch
			Round	300 mm 11.81 inch

300 mm 11.81 inch		300 mm 11.81 inch	Square	250 x 250mm 9.84 x 9.84 inch
300 mm 11.81 inch		300 mm 11.81 inch	Square	250 x 250mm 9.84 x 9.84 inch

			Rectangular	250 x 300 mm 9.84 x 11.81 inch
			Rectangular	250 x 300 mm 9.84 x 11.81 inch

Vertical		Horizontal		0º
	90 º
Total Cutting Capacity		Total Cutting Capacity
			Round
			Round

55 - 140 mm 2.16 - 5.51 inch		155 - 270 mm 6.10 - 10.6 inch	Square	140 x 140 mm 5.51 x 5.51 inch
55 - 140 mm 2.16 - 5.51 inch		155 - 270 mm 6.10 - 10.6 inch	Square	140 x 140 mm 5.51 x 5.51 inch

			Rectangular	140 x 270 mm 5.51 x 10.63 inch
			Rectangular	140 x 270 mm 5.51 x 10.63 inch
