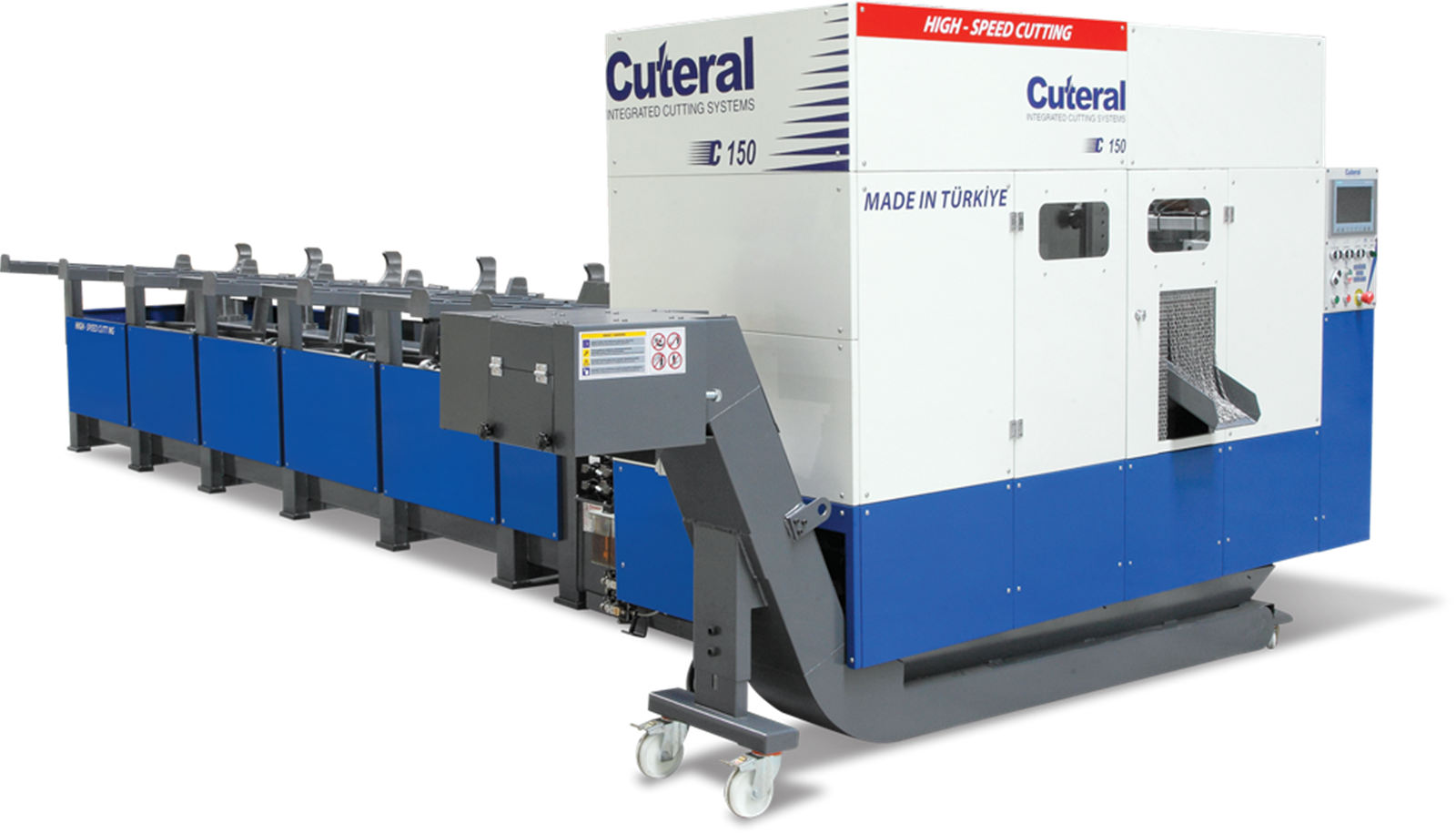

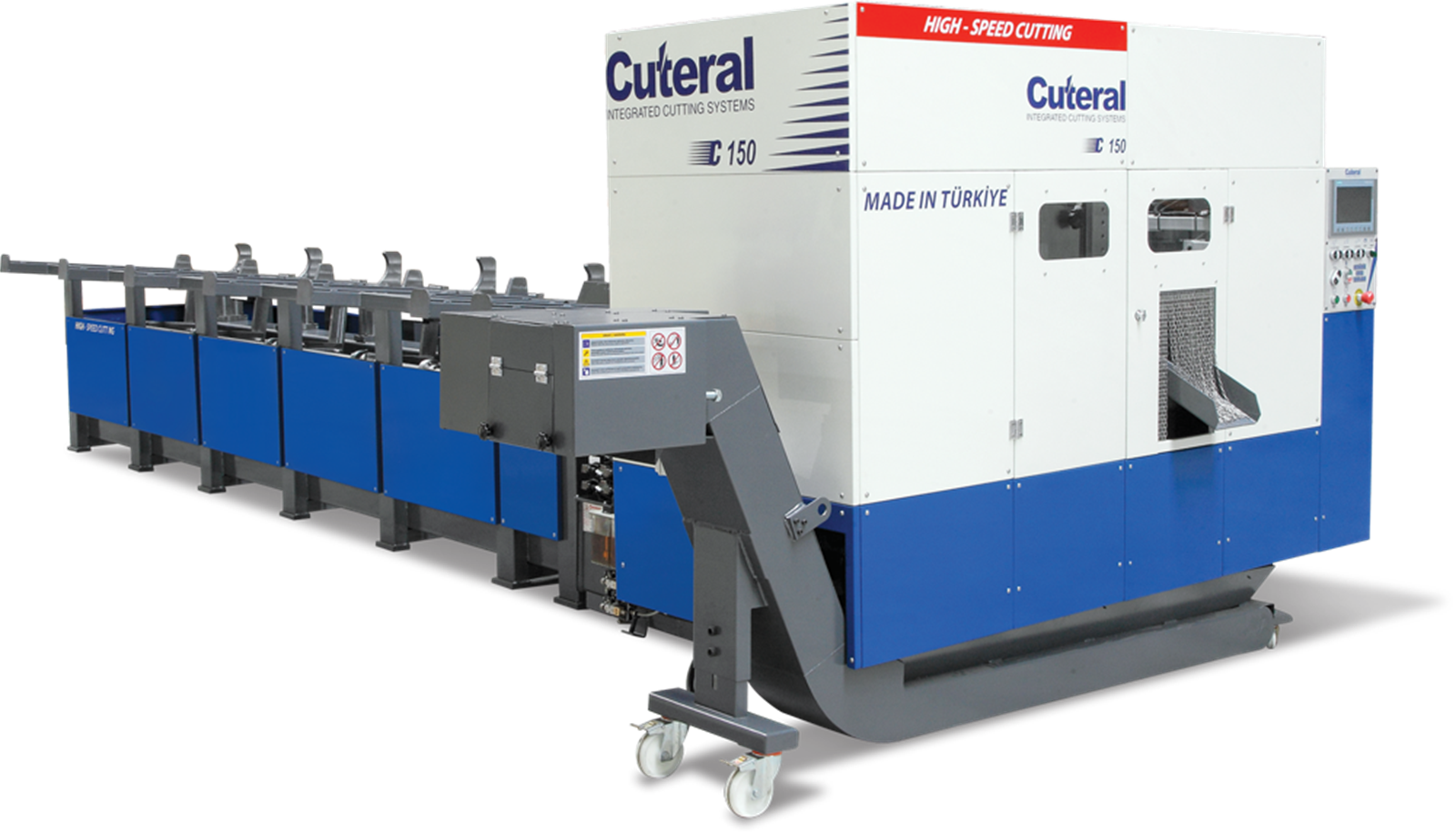

Cuteral C150 - Automatic Circular Bandsaw Machine

Cuteral C150 - Automatic Circular Bandsaw Machine

Cuteral C150 - Automatic Circular Bandsaw Machine

Cuteral C150 - Automatic Circular Bandsaw Machine

Cuteral C150 - Automatic Circular Bandsaw Machine

Cuteral C150 - Automatic Circular Bandsaw Machine (Cuteral C150 - Automatic Circular Bandsaw Machine)

Brand : Cuteral

Stock Amount : 0

Delivery Time 45 Days After order

Shipment Place Turkiye

Payment Terms % 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Turkey

Min. Order Qty.1 Pcs.

Warranty1 year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Saws - Bandsaws

Automatical Circular Saws

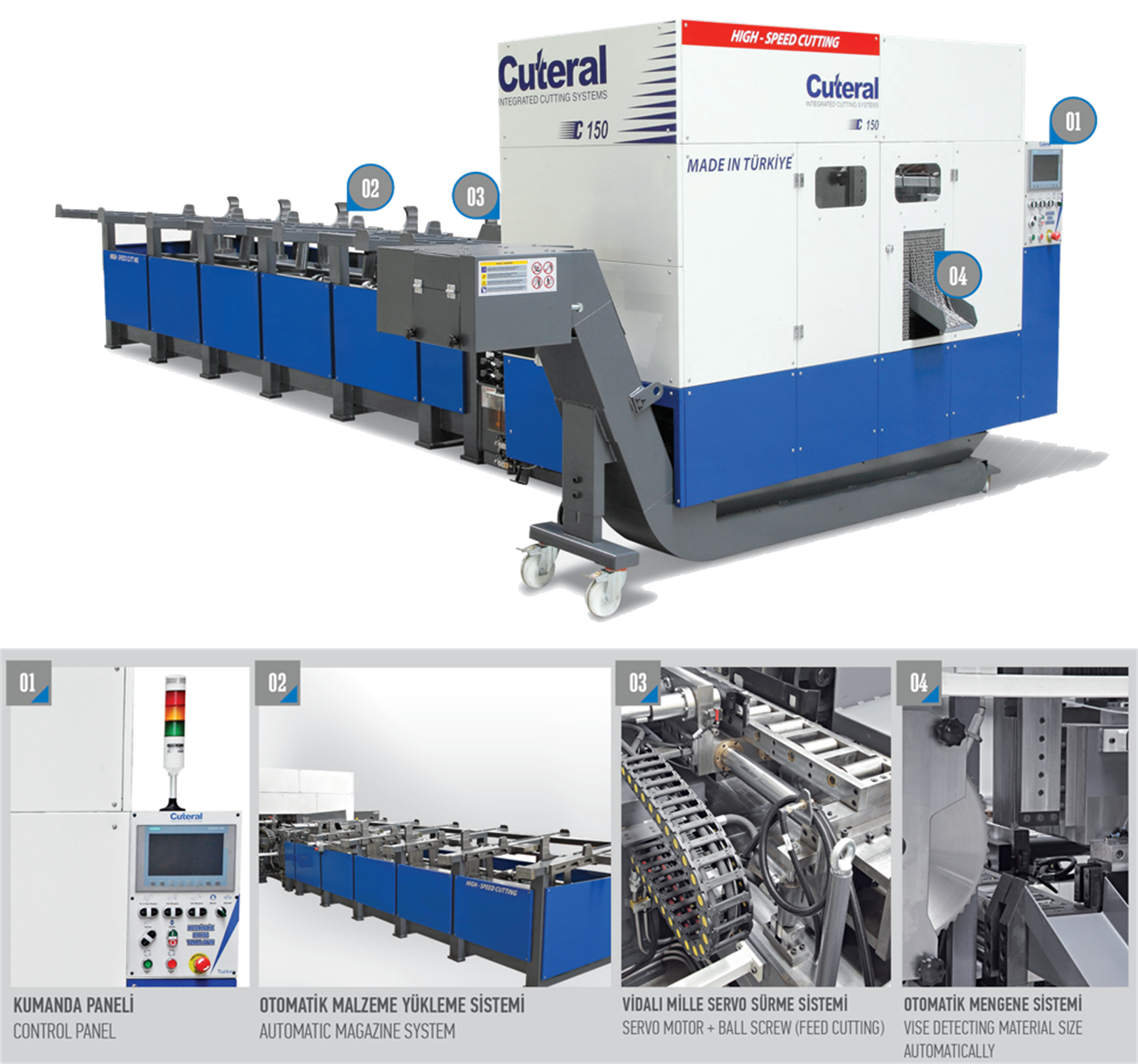

CONTROL PANEL
AUTOMATIC MAGAZINE SYSTEM
SERVO MOTOR + BALL SCREW (FEED CUTTING)
VISE DETECTING MATERIAL SIZE AUTOMATICALLY

CIRCULAR SAW TYPES
Precision	Precise Material Cutting Through PLC Control and Contactless Feeding System
Strong	Long Saw Blade Life
Speed	High Speed Cutting and Feeding Through Carbide Tipped Saw Blades
Efficient	Less Supplies and Power Consuption

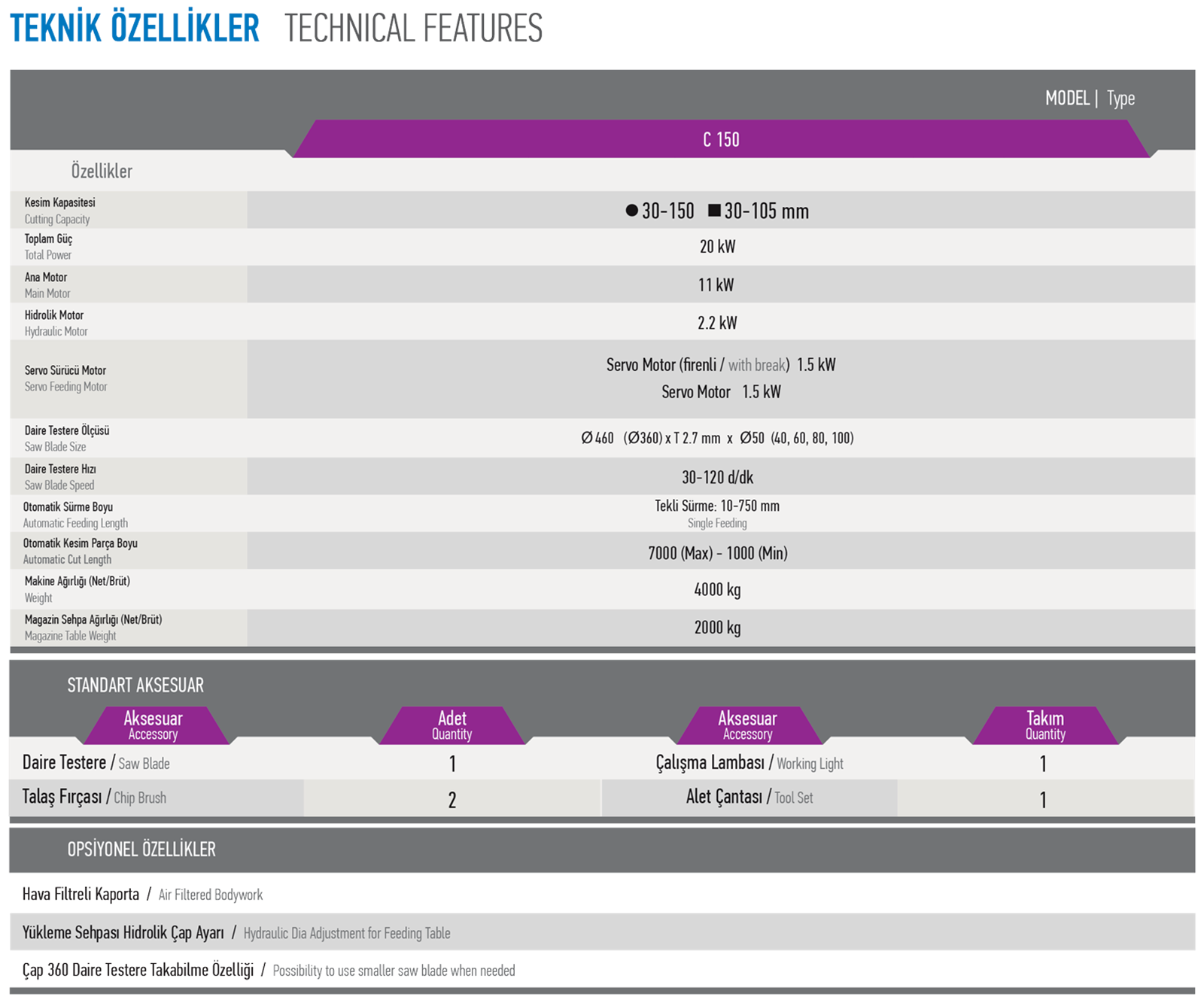

Cutting Capacity	Round: 30-150 / Square: 30-105 MM
Total Power	20 kW
Main Motor	11 kW
Hydraulic Motor	2.2 kW
Servo Feeding Motor	Servo Motor (with break) 1.5 kW Servo Motor 1.5 kW
Saw Blade Size	460 (360) x T 2.7 mm x 50 (40, 60, 80, 100)
Saw Blade Speed	30-120 d/dk
Automatic Feeding Length	Single Feeding: 10-750 mm
Automatic Cut Length	7000 (Max) - 1000 (Min)
Weight	4000 kg
Magazine Table Weight	2000 kg

Accessory	Quantity
Saw Blade	1
Chip Brush	2
Working Light	1
Tool Set	1

Air Filtered Bodywork
Hydraulic Dia Adjustment for Feeding Table
Possibility to use smaller saw blade when needed
