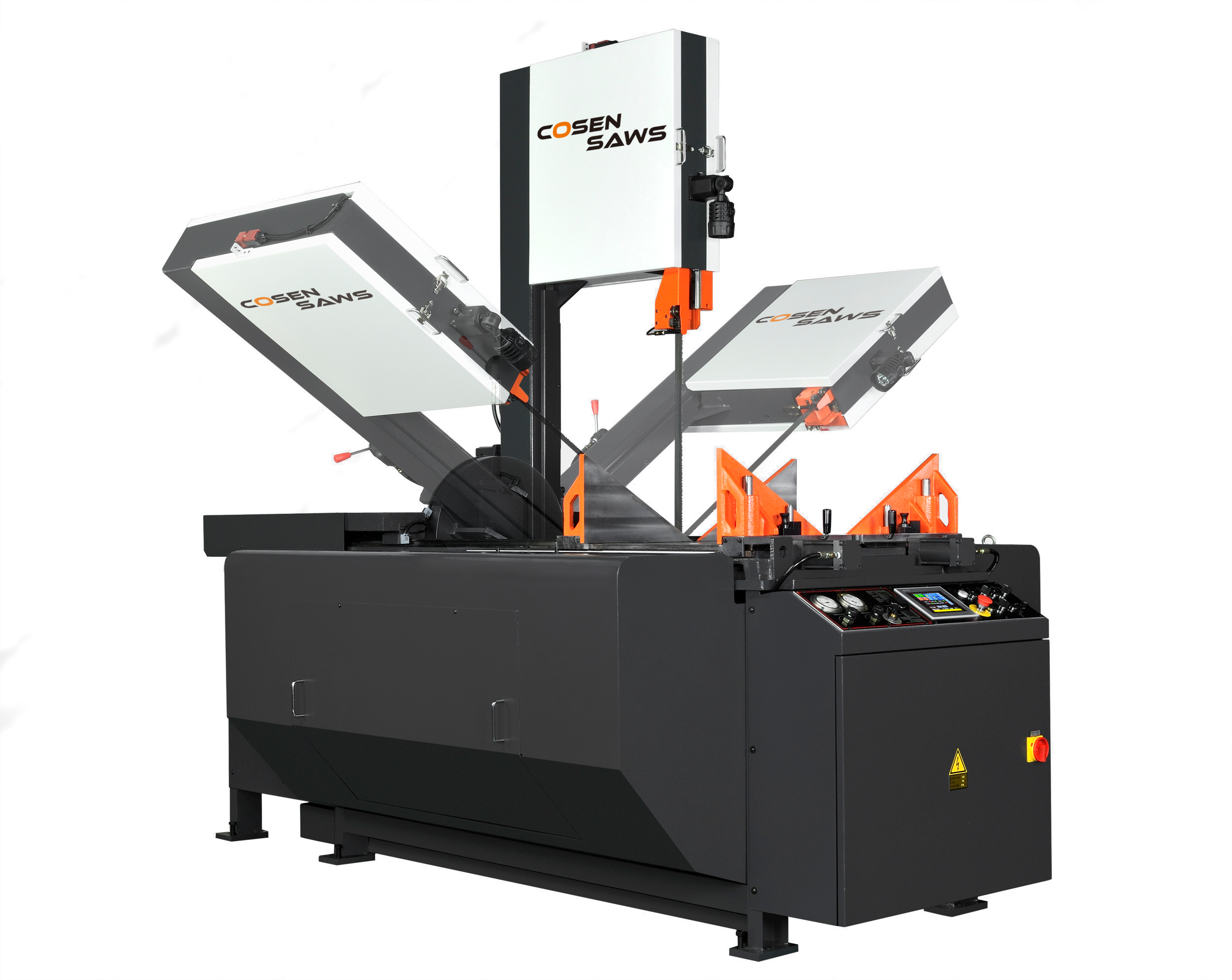

The COSEN V2026NC is a semi-automatic vertical hydraulic double miter band saw. This machine is extremely suitable for cutting structural materials and solid workpieces. The machine has a robust construction and is equipped with a simple operation. Due to the vertical saw frame, any desired angle between 0 ° and 60 ° can be sawn in, in both directions. The precision fulcrum rotates slightly and always ensures the set angle. The angle adjustment by means of a manually operated hydraulic system with digital display. The saw frame can also be adjusted from 0° to 5° for cutting the large profiles. Vibration damping is achieved by bed and running wheels, resulting in optimum sawing. The belt speed is variable (20-80m / min) and can be adjusted by simple operations, to saw all materials.
Structure:
►
The vertical saw frame allows the user to cut at any angle between 90° (straight cut) and 60° (miter cut) in both directions. The precision pivot system facilitates easy and accurate adjustment for angle cuts. Angle changes are made through a manual, gearbox assisted system with a protractor scale for angle determination. Saw frame also has an adjustable cant from 0 to 5 degrees.
Rigid and heavy-duty saw frame, bed and wheels provide for maximum vibration dampening and improved cutting performance.
Blade Drive:
A 5 Hp motor provides significant torque at all speed ranges.
The standard blade speed control provides infinite blade speeds (50 to 330 fpm) that can be easily changed through to accommodate all types of materials.
Blade Guidance & Lubrication System:
Carbide guides securely guide the blade during the cutting cycle. Bearing guides eliminate blade stress by pre-aligning the blade before it enters the carbide guides.
Guide arms assure straight cuts and eliminate vibration for longer blade life. The guide arm can be located as low as 5” above the worktable. The blade guide arm raises or lowers and is manually actuated.
Manual Blade tension device insures proper blade tension for quality cuts and longer blade life.
Integral coolant system
Blade brush removes the chips from the blade, maximizing productivity and extending blade life.
Control & Automation:
The operator’s control station located on the front side of the saw is convenient and user friendly. All operator controls are positioned on the top of the control box and clearly labeled for ease of operation. The electrical components are located inside the control box with the main lockout disconnect on the front of the control box for safety and easy maintenance.
Saw frame return is semi-automatic. After completion of the cut, saw bow automatically returns. Material size selection is automatically set when clamp is set.
Material Feeding & Clamping:
Dual Feed: Independently controlled feed rate and feed pressure functions achieve optimal cutting performance. The feed pressure valve and feed rate valve are infinitely and independently variable to assure maximum control under the most demanding applications. Feed pressures ranging from 0 to 400 lbs are obtainable.
Standard material clamping is accomplished with a high, left side vise. One vise is provided. Second vise is available as an option. Manual quick acting vising is standard.
Safety:
Built-in sensor senses both blade slippage and blade breakage and will automatically shut off the machine if either of these conditions should occur.
All exposed electric wiring and hydraulic circuit are protected by conduits.
All blade covers and guarding on the saw are painted Alert Orange to increase safety alertness.
Standard Accessories:
Additional flushing hose for cleaning
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
