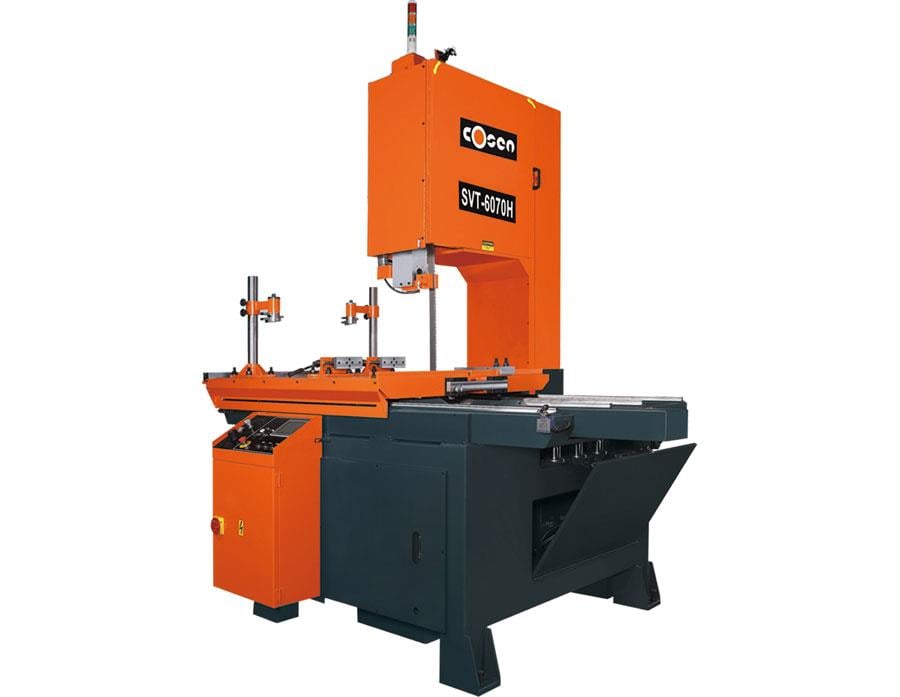

Cosen SVT-6070H Table Moving Vertical Band Saw (Cosen SVT-6070H)

SVT-6070H applies hydraulic power or optional servo motor to drive the load - bearing work bed, while extra heavy-duty saw frame is designed to achieve machine stability and fast cutting speeds. Plate - moving vertical bandsaw design allows easy loading and unloading for the material. After securing material in place, work bed moves with material smoothly into cutting area. The design is ideal for sawing block, plate, or mold steel. Blade changing is easy and convenient, hydraulic chip auger (optional) conveys metal chips out for easy maintenance.

COSEN SVT-6070H
Capacity Height	600 mm (23.6")
Capacity Throat	700 mm (27.69")
Cutting Length	1250 mm (49.2"))
Blade Speed	20-80 m/min (65-262 ft/min)
Blade Size (LxWxT)	6040x54x1.6 (237.8"x2"x0.06")
Blade Motor	10 HP (7.5kW)
Hydraulic Motor	2 HP (1.5kW)
Coolant Motor	1/4 HP (0.1875kW)
Gress Weight	5400 kgs (11880 lbs)
Workbed Height	1250 mm (49.2")
Floor Space (LxWxH)	3000x2000x3200 mm (118"x78.7"x126")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
