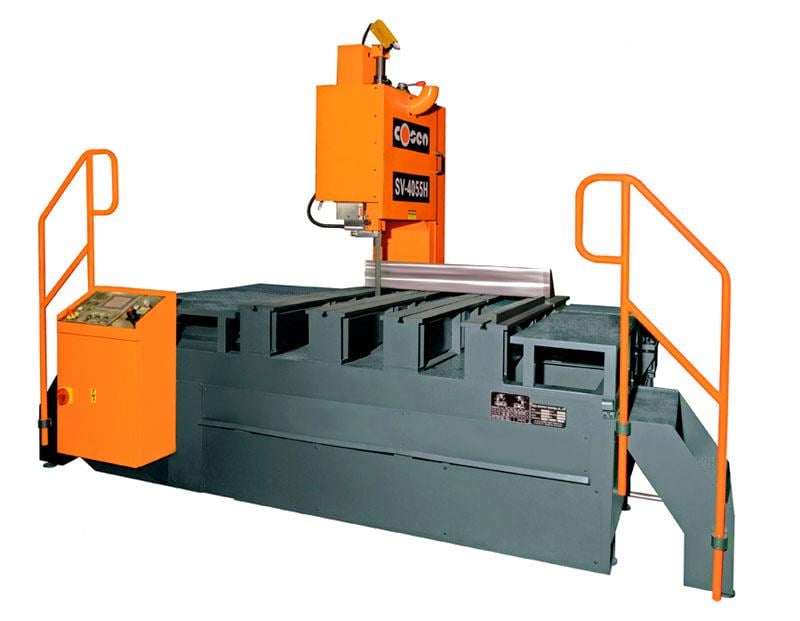

Cosen SV-4055H Super Speed Graphite Cutting Head Moving Vertical Band Saw (Cosen SV-4055H)

Super High-Speed Cutting. Applicable material: graphite, silicon, FRP,aluminum alloy and material requiring high blade speed up to 1500-2000. ．Traversing saw head rides over precision linear guides, ensuring smooth pulse-free feeding. ．Sturdily built workbed support workpiece and sustain heavy loads. ．Laser beam light projects cutting path on the material, making it easy to position, align and measure the workpiece. ．Hydraulically actuated guide arm ．T-slot workbed design enabling convenient workpiece clamping

Please consult us for custom design projects.

COSEN SV-4055H
Capacity Height	400 mm (15.7")
Capacity Throat	550 mm (21.7")
Capacity Cutting Length	1500 mm (59")
Blade Speed	500-1200 m/min
Blade Size (LxWxT)	4670x41x1.3 (183.85"x1.6"x0.05")
Blade Motor	10HP (7.5kW) / 8HP (6kW)
Hydraulic Motor	2HP (1.5kW)
Coolant Motor	1/4HP (0.1875kW)
Workbed Height	1100 mm (43.3")
Gross Weight	3840 kgs (8463 lbs)
Floor Space (LxWxH)	3600x2220x2500 mm (141.7"x87.4"x98.4")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
